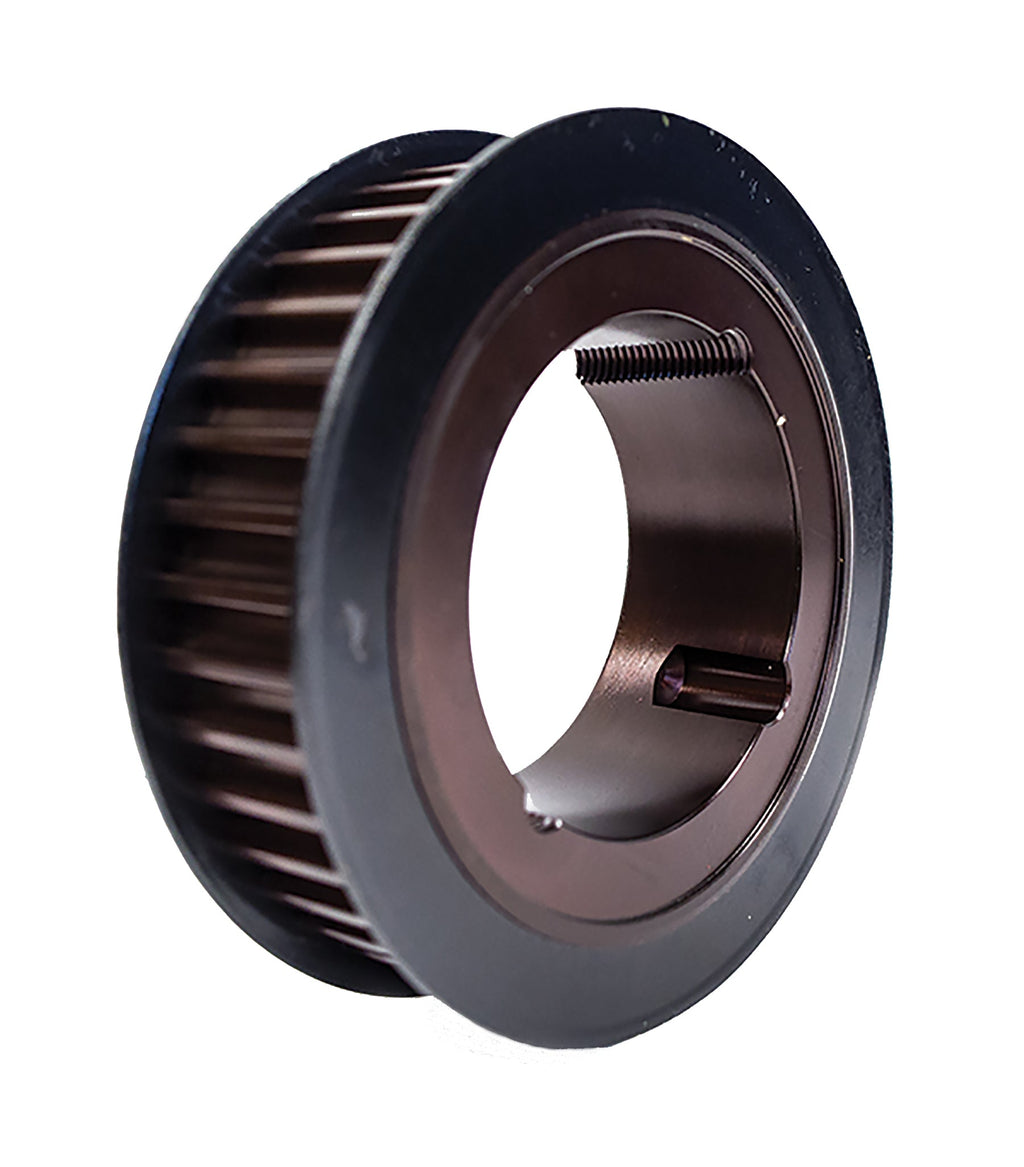

35-14MX37-2517 Powerhouse® MX Timing Pulley, 35 Teeth, 14MX Pitch
The 35-14MX37-2517 is a 35-tooth 14 mm MX high torque timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 37mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 35-14MX37-2517 |
| Teeth | 35 |
| Pitch | 14 mm MX high torque |
| For Belt Width | 37mm |
| Pitch Diameter | 6.1406 in |
| Outside Diameter | 6.0306 in |
| Flange Diameter | 6.816 in |
| Bore | Accepts 2517 bushing (not included) |
| Face Width | 1.69 in |
| Overall Length | 2 in |
| Construction | Taper Lock Hub |
| Flange Material | Steel |
| Material | Ductile Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 9.116 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- High torque, low speed drives replacing roller chain
- Air cooled heat exchanger (ACHE) fan drives
- Oil and gas pumping equipment
- Material handling and conveyor drives
Belt Compatibility
The 35-14MX37-2517 runs 14 mm MX high torque belts in 37mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 35-14MX37-2517 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | 14MX-35S-37-2517 |
| Martin | 14MX35S37-2517 |
| Gates® | 14MX-35S-37 |
| TB Woods® | 14MPC35S37 |
| Regal Rexnord (Browning®) | B14MCS-35-37 |
| Mitsuboshi | 35-14MX37-2517 |
| Grainger | 809RU1 |
| Powerdrive | 35-14MX37-2517 |
| Continental (ContiTech) | 35G-14M-37-2517 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 35-14MX37-2517 pulley?
14 mm MX high torque timing belts in 37mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 35-14MX37-2517 replace the Dodge 14MX-35S-37-2517?
Yes. Published interchange data crosses the 35-14MX37-2517 directly to the Dodge 14MX-35S-37-2517, as well as Martin 14MX35S37-2517, Gates 14MX-35S-37, TB Woods 14MPC35S37. Verify dimensions and bore before ordering.
Does the 35-14MX37-2517 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
