35V710SF V-Belt Sheave, 3 Grooves, 5V Section, 7.1 in OD, SF Bushing


Price:
$ 162.43

Description

35V710SF V-Belt Sheave, 3 Grooves, 5V Section, 7.1 in OD, SF Bushing

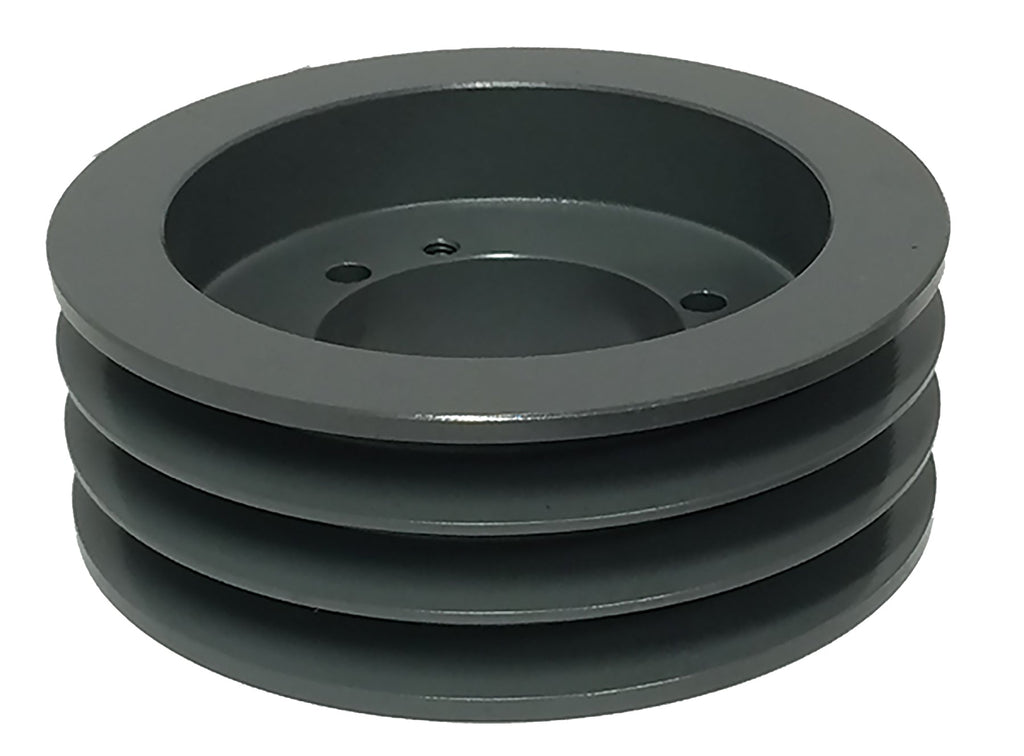

The 35V710SF is a 3-groove 5V section narrow wedge V-belt sheave with a 7.1 in outside diameter, fully machined from cast iron and statically balanced. It mounts with an industry-standard SF QD® style bushing, sold separately, sized to your shaft. It runs 5V and 5VX narrow wedge V-belts.

Specifications

Specification Value
Part Number 35V710SF
Belt Section 5V
Grooves 3
Outside Diameter 7.1 in
Pitch Diameter 7 in
Face Width 2.375 in
Bushing SF series, QD® style (not included)
Material Cast Iron, fully machined, statically balanced
Weight 12.7 lb
Country of Origin China

Applications

  • Multi-belt narrow wedge drives on fans, blowers, and pumps
  • HVAC air handlers and cooling tower drives
  • Compressors and industrial process equipment
  • Replacing worn sheaves on existing drives without changing belts or bushings

Cross Reference

The 35V710SF interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® D3-5V71
Martin 3 5V 710 SF
Gates® QD3/5V7.10
TB Woods® 5V713
Regal Rexnord (Browning®) 35V710SF
Carlisle 3-5V-710-SF
Masterdrive 3/5V710SF
Maurey 35V7.1-SF
Jason Industrial 3/5V710SF
Optibelt QD 5V710/3 SF

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts run on the 35V710SF?

5V and 5VX narrow wedge V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.

Does the 35V710SF replace the Dodge D3-5V71 sheave?

Yes. Published interchange data crosses the 35V710SF directly to the Dodge D3-5V71, as well as Martin 3 5V 710 SF, Gates QD3/5V7.10, TB Woods 5V713. Verify groove count, diameter, and bore or bushing before ordering.

What bushing does the 35V710SF use?

A SF series QD style bushing, sold separately. SF is an industry-standard bushing size, so any manufacturer's standard SF bushing fits. Order the bushing bore that matches your shaft diameter.

Does the 35V710SF ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 35V710SF?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
