36-14M170-6FS16 Powerhouse® HTD Timing Pulley, 36 Teeth, 14M Pitch


Price:
$ 494.74

Description

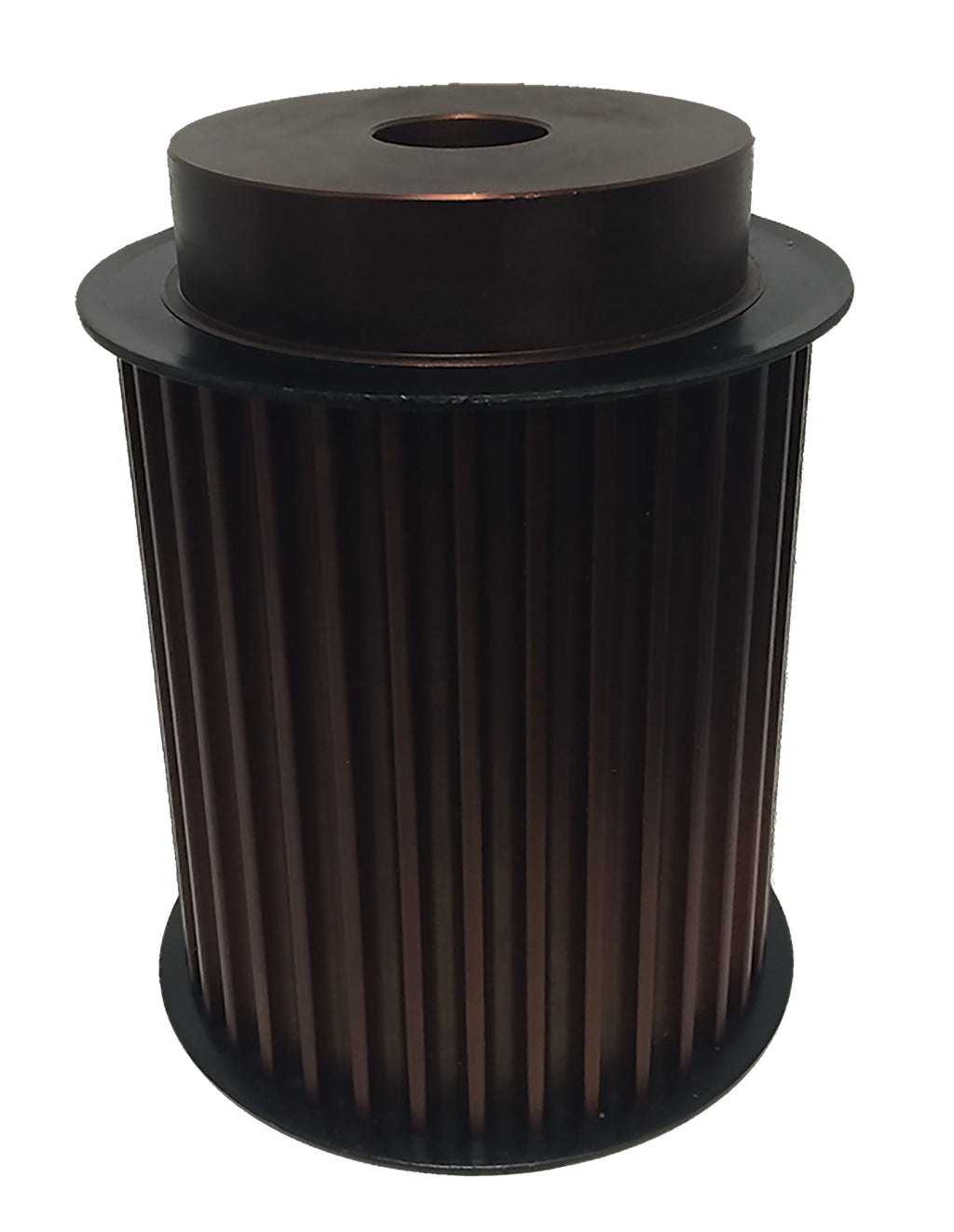

36-14M170-6FS16 Powerhouse® HTD Timing Pulley, 36 Teeth, 14M Pitch

The 36-14M170-6FS16 is a 36-tooth 14 mm HTD® compatible timing pulley with a 1-1/2 in minimum plain bore, machined from steel with a black oxide finish, built for 17mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type 6FNOKEY pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 36-14M170-6FS16
Teeth 36
Pitch 14 mm HTD® compatible
For Belt Width 17mm
Pitch Diameter 6.3161 in
Outside Diameter 6.2061 in
Flange Diameter 6.81 in
Bore 1-1/2 in minimum plain bore
Face Width 7.375 in
Overall Length 7.375 in
Hub Diameter 5.3 in
Construction Standard Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 47 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The 36-14M170-6FS16 runs 14 mm HTD® compatible belts in 17mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 36-14M170-6FS16 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P36-14M-170-MPB
Martin P3614M170-MPB
Gates® P36-14M-170
Regal Rexnord (Browning®) B3614M170B
Powerdrive 36-14M170-6FS16

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 36-14M170-6FS16 pulley?

14 mm HTD® compatible timing belts in 17mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 36-14M170-6FS16 replace the Dodge P36-14M-170-MPB?

Yes. Published interchange data crosses the 36-14M170-6FS16 directly to the Dodge P36-14M-170-MPB, as well as Martin P3614M170-MPB, Gates P36-14M-170, Regal Rexnord B3614M170B. Verify dimensions and bore before ordering.

Does the 36-14M170-6FS16 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 36-14M170-6FS16?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
