Description

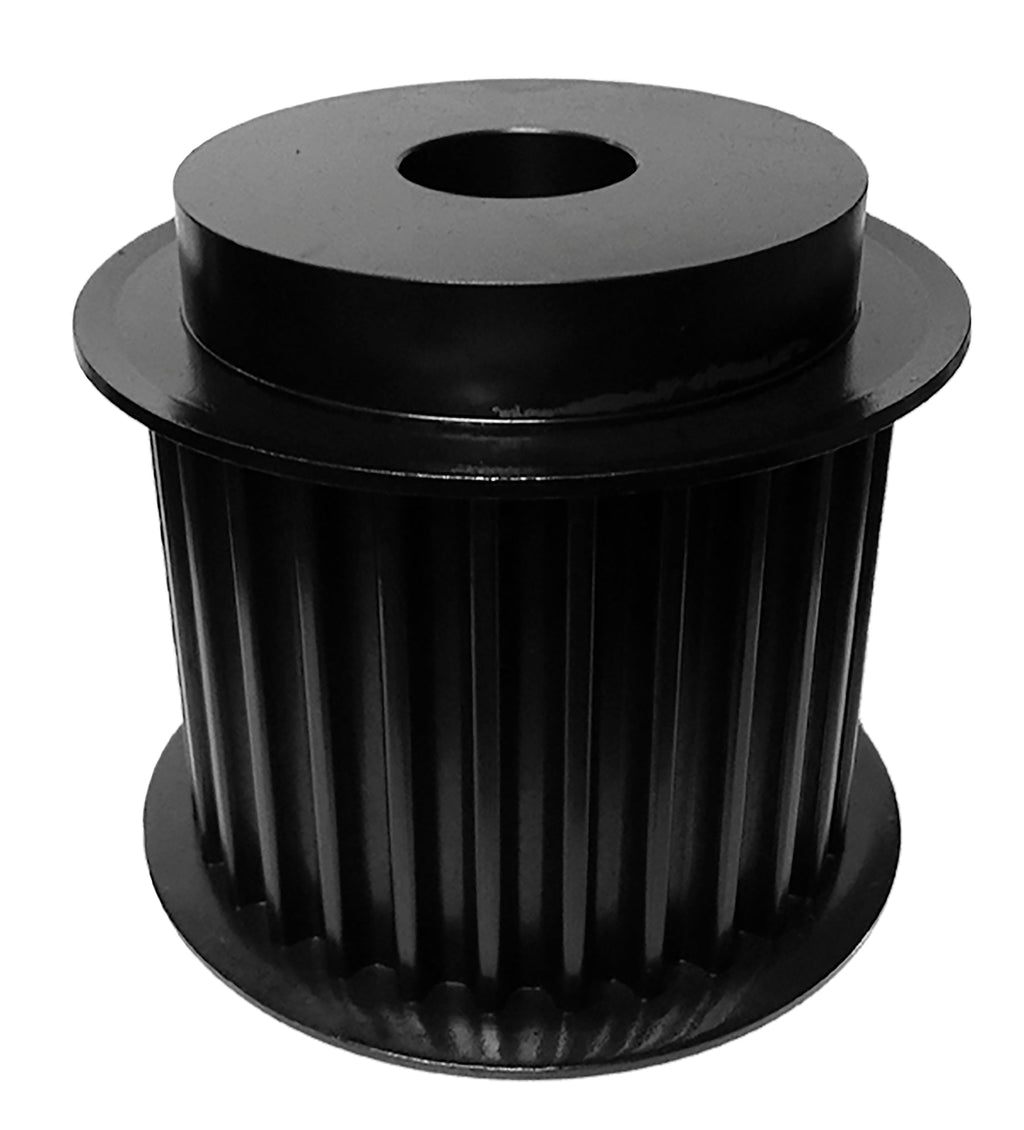

36-14MX90-6FS16 Powerhouse® MX Timing Pulley, 36 Teeth, 14MX Pitch
The 36-14MX90-6FS16 is a 36-tooth 14 mm MX high torque timing pulley with a 1-1/2 in minimum plain bore, machined from ductile iron with a black oxide finish, built for 9mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 36-14MX90-6FS16 |
| Teeth | 36 |
| Pitch | 14 mm MX high torque |
| For Belt Width | 9mm |
| Pitch Diameter | 6.3161 in |
| Outside Diameter | 6.2061 in |
| Flange Diameter | 6.816 in |
| Bore | 1-1/2 in minimum plain bore |
| Face Width | 4.203 in |
| Overall Length | 4.203 in |
| Hub Diameter | 5.3 in |
| Construction | Standard Hub |
| Flange Material | Steel |
| Material | Ductile Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 33.777 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- High torque, low speed drives replacing roller chain
- Air cooled heat exchanger (ACHE) fan drives
- Oil and gas pumping equipment
- Material handling and conveyor drives
Belt Compatibility
The 36-14MX90-6FS16 runs 14 mm MX high torque belts in 9mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 36-14MX90-6FS16 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | 14MX-36S-90-MPB |
| Martin | PB14MX36S90 |
| Gates® | PB14MX-36S-90 |
| TB Woods® | 14MPC36S90MPB |
| Regal Rexnord (Browning®) | PB14MCS-36-90 |
| Mitsuboshi | 36-14MX90-6FS16 |
| Powerdrive | 36-14MX90-6FS16 |
| Continental (ContiTech) | 36G-14M-90-MPB |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 36-14MX90-6FS16 pulley?
14 mm MX high torque timing belts in 9mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 36-14MX90-6FS16 replace the Dodge 14MX-36S-90-MPB?
Yes. Published interchange data crosses the 36-14MX90-6FS16 directly to the Dodge 14MX-36S-90-MPB, as well as Martin PB14MX36S90, Gates PB14MX-36S-90, TB Woods 14MPC36S90MPB. Verify dimensions and bore before ordering.
Does the 36-14MX90-6FS16 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
Need a quote on 36-14MX90-6FS16?
Houston warehouse, same-day shipping on stock items.
Call (888) 203-2358Powerhouse® is a registered trademark of its owner. Poly Chain®, GT®, and Carbon™ are trademarks of Gates Corporation. Synchrochain is a trademark of Continental. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
