36-14P115-3020 Powerhouse® Timing Pulley, 36 Teeth, 14P Pitch


Price:
$ 397.33

Description

36-14P115-3020 Powerhouse® Timing Pulley, 36 Teeth, 14P Pitch

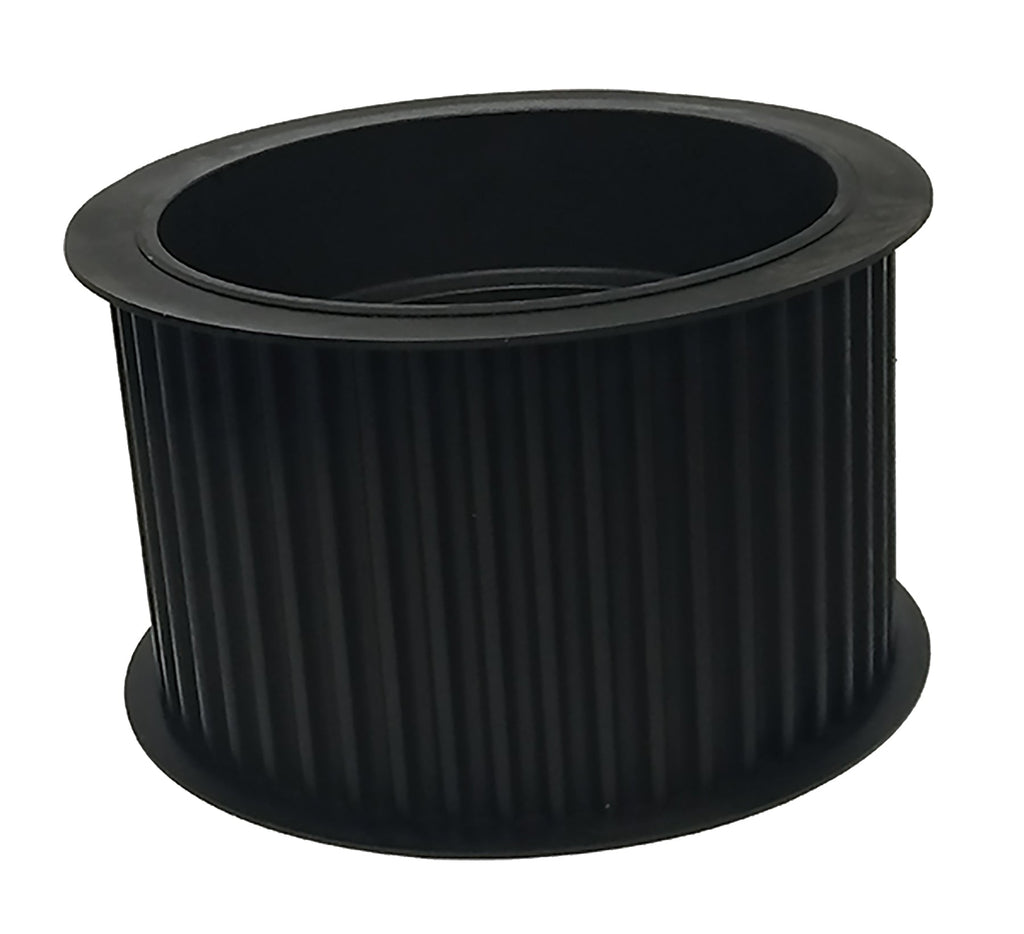

The 36-14P115-3020 is a 36-tooth 14 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 115mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 36-14P115-3020
Teeth 36
Pitch 14 mm Powerhouse® curvilinear
For Belt Width 115mm
Pitch Diameter 6.3161 in
Outside Diameter 6.2061 in
Flange Diameter 6.816 in
Bore Accepts 3020 bushing (not included)
Face Width 5.25 in
Overall Length 5.25 in
Construction Taper Lock Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 20.768 lb
Country of Origin China

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 36-14P115-3020 runs 14 mm Powerhouse® curvilinear belts in 115mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 36-14P115-3020 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P36-14M-115-3020
Martin P3614M115-3020
Gates® P36-14MGT-115
TB Woods® P3614M115TL
Regal Rexnord (Browning®) B3614M115TL
Ametric 14M36TL115.3020
Powerdrive 36-14P115-3020
Continental (ContiTech) P36-14M-115-3020

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 36-14P115-3020 pulley?

14 mm Powerhouse® curvilinear timing belts in 115mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 36-14P115-3020 replace the Dodge P36-14M-115-3020?

Yes. Published interchange data crosses the 36-14P115-3020 directly to the Dodge P36-14M-115-3020, as well as Martin P3614M115-3020, Gates P36-14MGT-115, TB Woods P3614M115TL. Verify dimensions and bore before ordering.

Does the 36-14P115-3020 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 36-14P115-3020?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
