Description
36-14P170-6FS16 Powerhouse® Timing Pulley, 36 Teeth, 14P Pitch

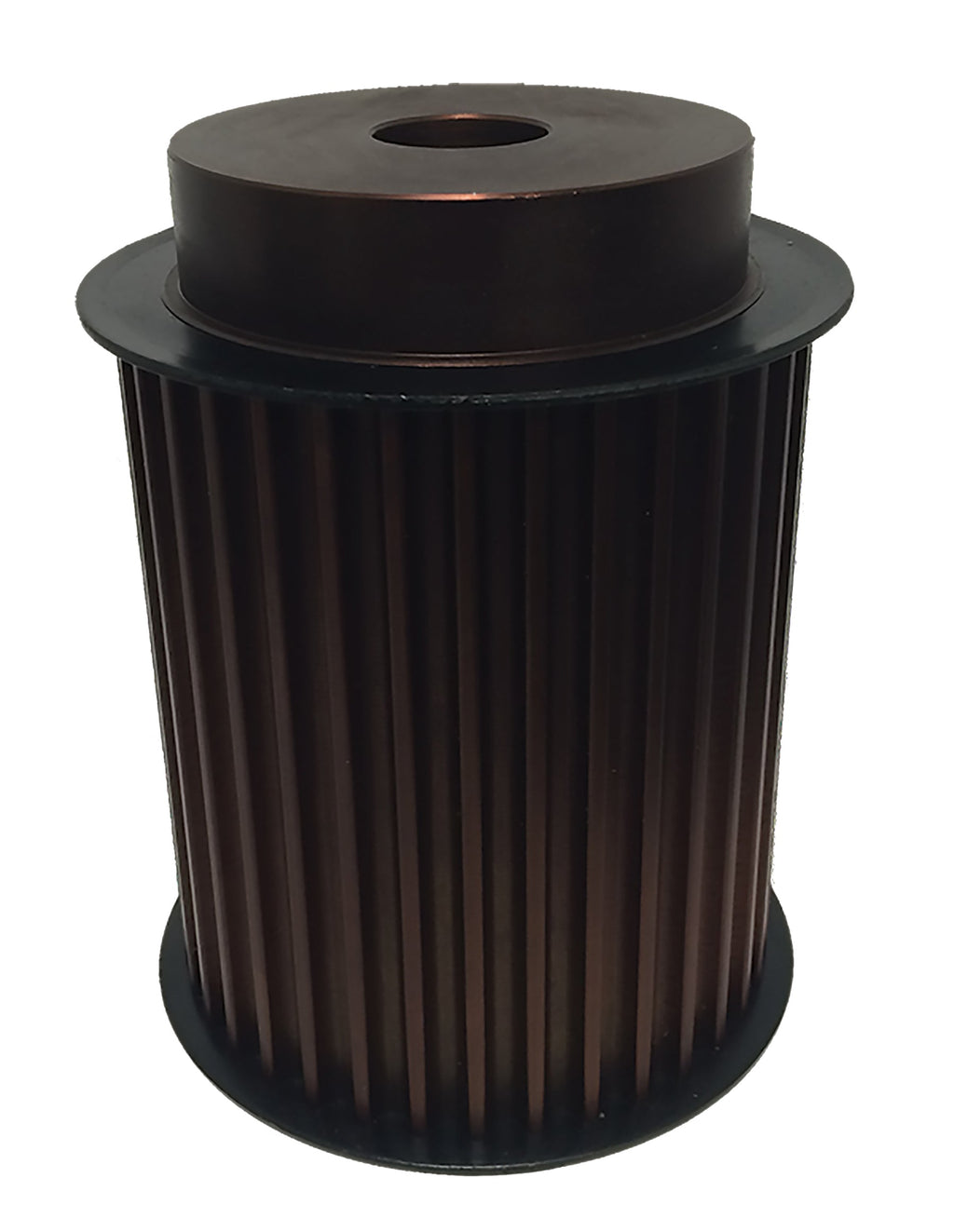

The 36-14P170-6FS16 is a 36-tooth 14 mm Powerhouse® curvilinear timing pulley with a 1-1/2 in minimum plain bore, machined from steel with a black oxide finish, built for 17mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 36-14P170-6FS16 |
| Teeth | 36 |
| Pitch | 14 mm Powerhouse® curvilinear |
| For Belt Width | 17mm |
| Pitch Diameter | 6.3161 in |
| Outside Diameter | 6.2061 in |
| Flange Diameter | 6.816 in |
| Bore | 1-1/2 in minimum plain bore |
| Face Width | 7.42 in |
| Overall Length | 8.65 in |
| Hub Diameter | 5.3 in |
| Construction | Standard Hub |
| Flange Material | Steel |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 45.35 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- Higher load synchronous drives in compact spaces
- Industrial automation and conveyor drives
- Packaging and material handling equipment
Belt Compatibility
The 36-14P170-6FS16 runs 14 mm Powerhouse® curvilinear belts in 17mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 36-14P170-6FS16 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | P36-14M-170-MPB |
| Martin | P3614M170-MPB |
| Gates® | P36-14MGT-170-MPB |
| Regal Rexnord (Browning®) | B3614M170B |
| Powerdrive | 36-14P170-6FS16 |
| Continental (ContiTech) | P36-14M-170-MPB |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 36-14P170-6FS16 pulley?
14 mm Powerhouse® curvilinear timing belts in 17mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 36-14P170-6FS16 replace the Dodge P36-14M-170-MPB?
Yes. Published interchange data crosses the 36-14P170-6FS16 directly to the Dodge P36-14M-170-MPB, as well as Martin P3614M170-MPB, Gates P36-14MGT-170-MPB, Regal Rexnord B3614M170B. Verify dimensions and bore before ordering.
Does the 36-14P170-6FS16 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
