Description

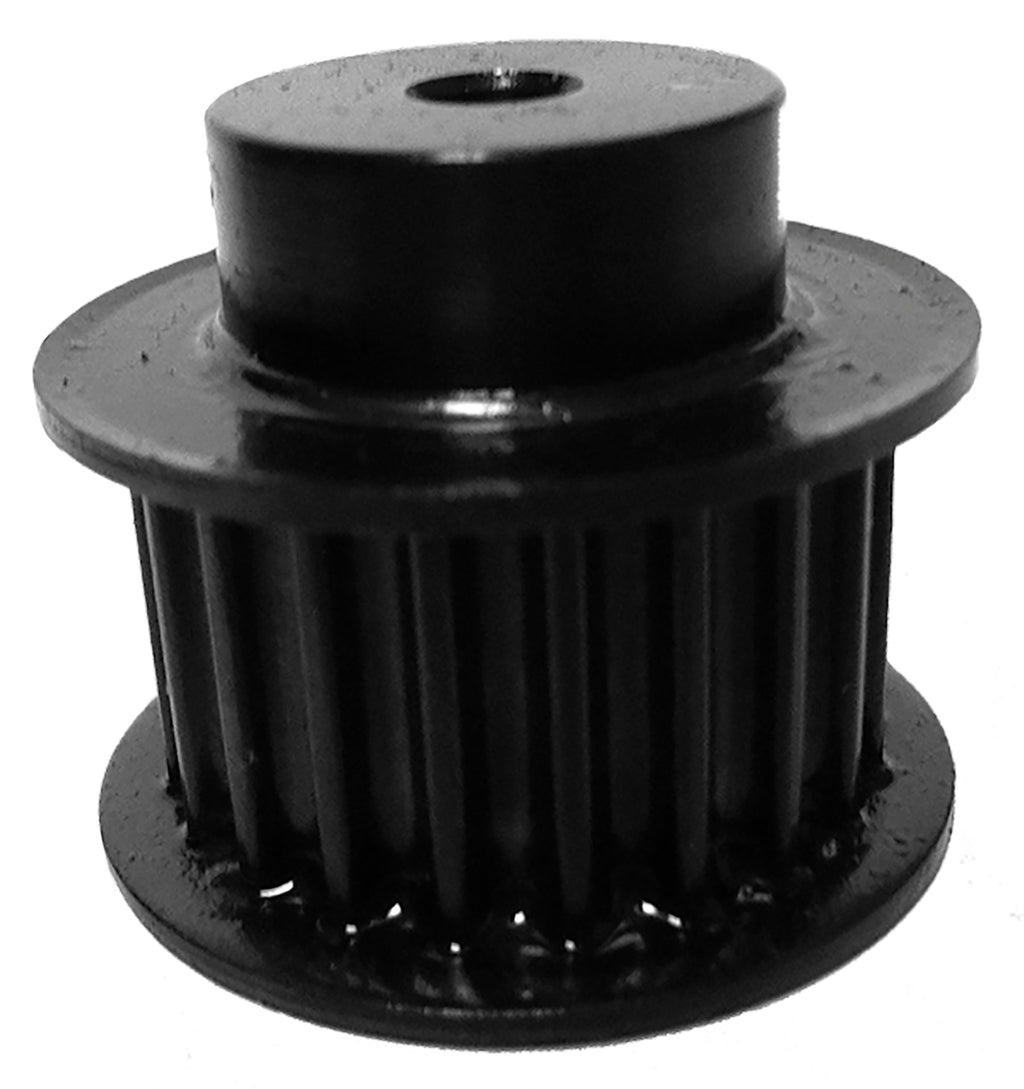

36-5M15-6FS6 Powerhouse® HTD Timing Pulley, 36 Teeth, 5M Pitch
The 36-5M15-6FS6 is a 36-tooth 5 mm HTD® compatible timing pulley with a 1/2 in minimum plain bore, machined from steel with a black oxide finish, built for 15mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 36-5M15-6FS6 |
| Teeth | 36 |
| Pitch | 5 mm HTD® compatible |
| For Belt Width | 15mm |
| Pitch Diameter | 2.2557 in |
| Outside Diameter | 2.2107 in |
| Flange Diameter | 2.375 in |
| Bore | 1/2 in minimum plain bore |
| Face Width | 0.84 in |
| Overall Length | 1.34 in |
| Hub Diameter | 1.797 in |
| Construction | Standard Hub |
| Flange Material | Steel |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 1.2 lb |
| Country of Origin | India |
Applications
- HTD curvilinear belt drives on industrial equipment
- Conveyors, packaging, and warehouse automation
- Replacing worn pulleys on existing HTD drives
Belt Compatibility
The 36-5M15-6FS6 runs 5 mm HTD® compatible belts in 15mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 36-5M15-6FS6 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | P36-5M-15-MPB |
| Martin | P365M15-MPB |
| TB Woods® | P365M15 |
| Masterdrive | P36-5M-15-PB |
| Neuman | P36-5M-15-MPB |
| McMaster-Carr | 6497K83 |
| Grainger | 809R05 |
| Powerdrive | 36-5M15-6FS6 |
| Continental (ContiTech) | P36-5M-15X1/2 MPB |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 36-5M15-6FS6 pulley?
5 mm HTD® compatible timing belts in 15mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 36-5M15-6FS6 replace the Dodge P36-5M-15-MPB?
Yes. Published interchange data crosses the 36-5M15-6FS6 directly to the Dodge P36-5M-15-MPB, as well as Martin P365M15-MPB, TB Woods P365M15, Masterdrive P36-5M-15-PB. Verify dimensions and bore before ordering.
Does the 36-5M15-6FS6 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
Need a quote on 36-5M15-6FS6?
Houston warehouse, same-day shipping on stock items.
