36-5M15M6A10 Powerhouse® HTD Timing Pulley, 36 Teeth, 5M Pitch, 10 mm Bore


Price:
$ 24.78

Description

36-5M15M6A10 Powerhouse® HTD Timing Pulley, 36 Teeth, 5M Pitch, 10 mm Bore

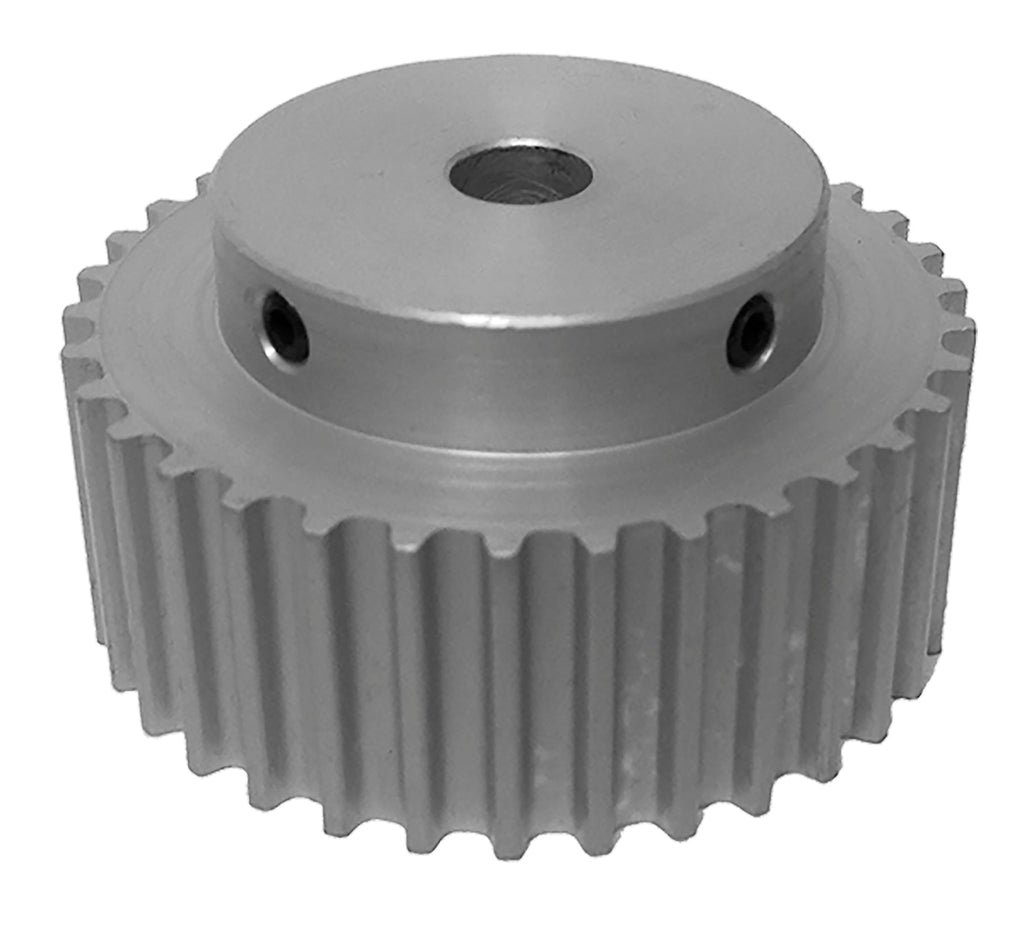

The 36-5M15M6A10 is a 36-tooth 5 mm HTD® compatible timing pulley with a 10 mm finished bore, machined from aluminum with a clear anodized finish, built for 15mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 36-5M15M6A10
Teeth 36
Pitch 5 mm HTD® compatible
For Belt Width 15mm
Pitch Diameter 2.2557 in
Outside Diameter 2.2107 in
Bore 10 mm finished bore
Face Width 0.781 in
Construction Standard Hub
Set Screws 2 x M5
Material Aluminum (no sintered or powdered metal)
Finish Clear Anodized
Weight 0.36 lb
Country of Origin India

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The 36-5M15M6A10 runs 5 mm HTD® compatible belts in 15mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 36-5M15M6A10 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Stock Drive Products (SDP/SI) A 6A25M036NF1510
Powerdrive 36-5M15M6A10

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 36-5M15M6A10 pulley?

5 mm HTD® compatible timing belts in 15mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 36-5M15M6A10 replace the Stock Drive Products A 6A25M036NF1510?

Yes. Published interchange data crosses the 36-5M15M6A10 directly to the Stock Drive Products A 6A25M036NF1510, as well as Powerdrive 36-5M15M6A10. Verify dimensions and bore before ordering.

Does the 36-5M15M6A10 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 36-5M15M6A10?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
