36-5P09M6A12 Powerhouse® Timing Pulley, 36 Teeth, 5P Pitch


Price:
$ 17.59

Description

36-5P09M6A12 Powerhouse® Timing Pulley, 36 Teeth, 5P Pitch

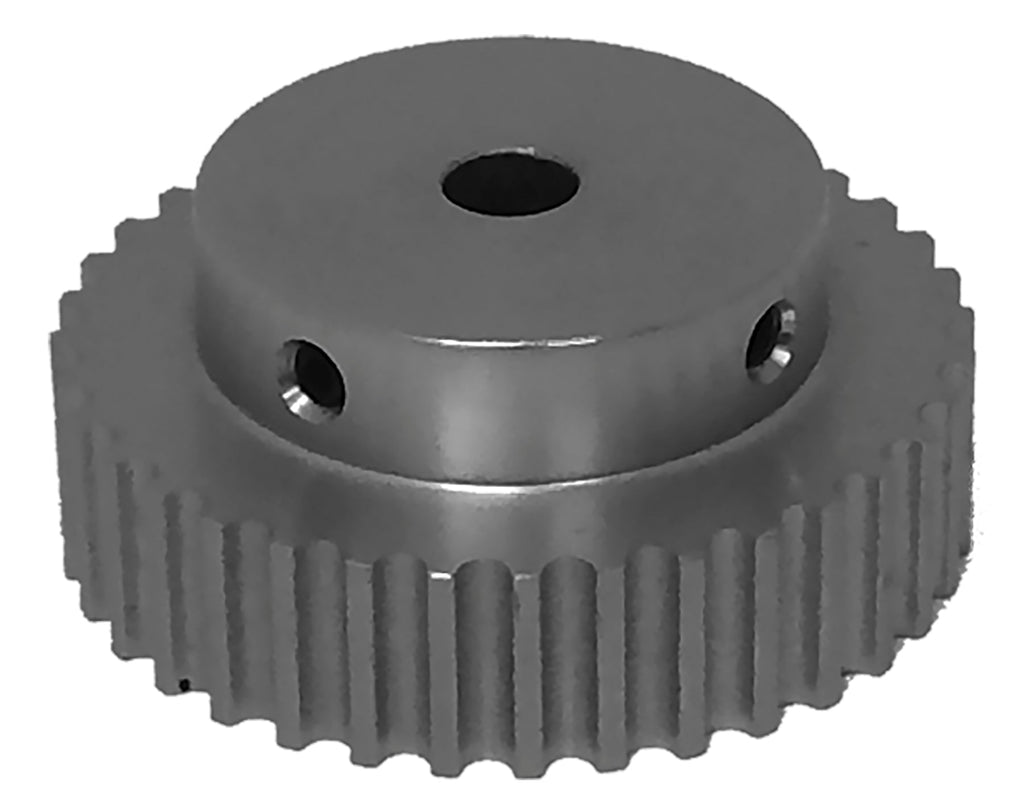

The 36-5P09M6A12 is a 36-tooth 5 mm Powerhouse® curvilinear timing pulley with a 12 mm Bore, machined from aluminum with a clear anodized finish, built for 9mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 36-5P09M6A12
Teeth 36
Pitch 5 mm Powerhouse® curvilinear
For Belt Width 9mm
Pitch Diameter 2.2557 in
Outside Diameter 2.2107 in
Bore 12 mm Bore
Face Width 0.546 in
Overall Length 0.937 in
Hub Diameter 1.5 in
Construction Standard Hub
Material Aluminum (no sintered or powdered metal)
Finish Clear Anodized
Weight 0.273 lb
Country of Origin India

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 36-5P09M6A12 runs 5 mm Powerhouse® curvilinear belts in 9mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 36-5P09M6A12 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Stock Drive Products (SDP/SI) A 6A55M036NF0912

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 36-5P09M6A12 pulley?

5 mm Powerhouse® curvilinear timing belts in 9mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 36-5P09M6A12 replace the Stock Drive Products A 6A55M036NF0912?

Yes. Published interchange data crosses the 36-5P09M6A12 directly to the Stock Drive Products A 6A55M036NF0912. Verify dimensions and bore before ordering.

Does the 36-5P09M6A12 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
