36-8P85-1615 Powerhouse® Timing Pulley, 36 Teeth, 8P Pitch


Price:
$ 187.47

Description

36-8P85-1615 Powerhouse® Timing Pulley, 36 Teeth, 8P Pitch

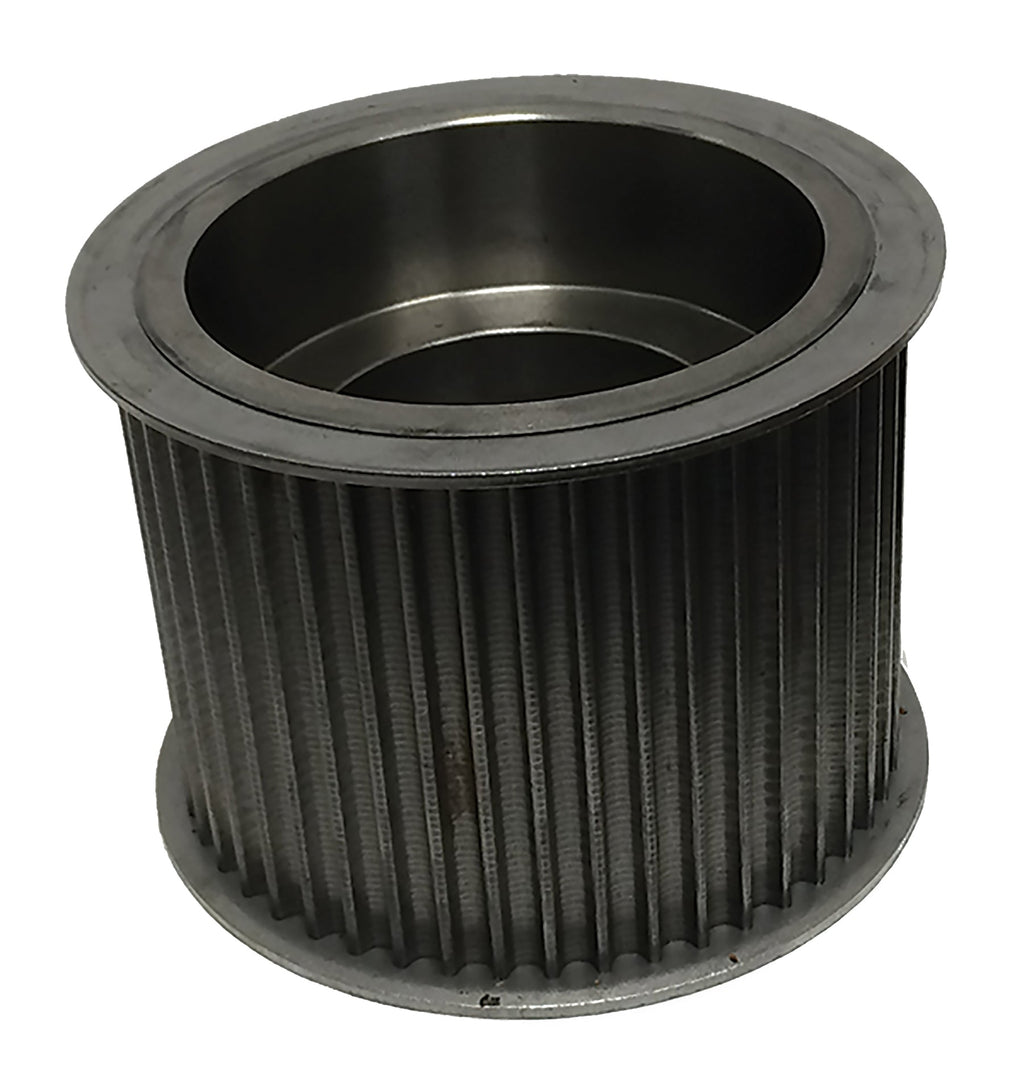

The 36-8P85-1615 is a 36-tooth 8 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 85mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 36-8P85-1615
Teeth 36
Pitch 8 mm Powerhouse® curvilinear
For Belt Width 85mm
Pitch Diameter 3.6092 in
Outside Diameter 3.5552 in
Flange Diameter 3.938 in
Bore Accepts 1615 bushing (not included)
Face Width 3.75 in
Overall Length 3.75 in
Construction Taper Lock Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 4.3 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 36-8P85-1615 runs 8 mm Powerhouse® curvilinear belts in 85mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 36-8P85-1615 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P36-8M-85-1615
Martin P368M85-1615
Gates® P36-8MGT-85
TB Woods® P368M85TL
Regal Rexnord (Browning®) B368M85TL
Ametric 8M36TL85.1615
Grainger 809TM7
Powerdrive 36-8P85-1615
Continental (ContiTech) P36-8M-85-1615

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 36-8P85-1615 pulley?

8 mm Powerhouse® curvilinear timing belts in 85mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 36-8P85-1615 replace the Dodge P36-8M-85-1615?

Yes. Published interchange data crosses the 36-8P85-1615 directly to the Dodge P36-8M-85-1615, as well as Martin P368M85-1615, Gates P36-8MGT-85, TB Woods P368M85TL. Verify dimensions and bore before ordering.

Does the 36-8P85-1615 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 36-8P85-1615?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358
