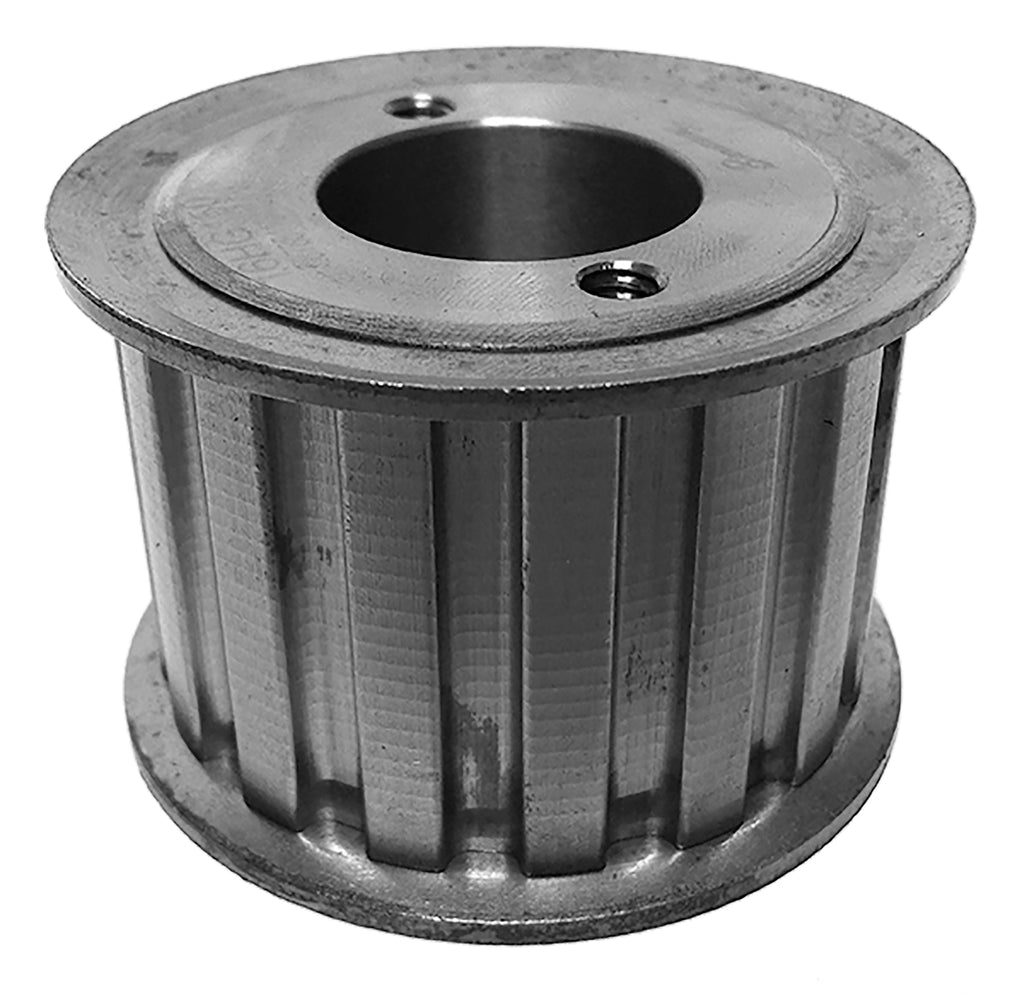

36HQ150 Timing Pulley, 36 Teeth, H Pitch


Price:
$ 158.36

Description

36HQ150 Timing Pulley, 36 Teeth, H Pitch

The 36HQ150 is a 36-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron, built for 1.5 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 7 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 36HQ150
Teeth 36
Pitch H (0.500 in trapezoidal)
For Belt Width 1.5 in
Pitch Diameter 5.7296 in
Outside Diameter 5.6756 in
Flange Diameter 6 in
Bore Accepts Q1 bushing (not included)
Face Width 1.75 in
Overall Length 2.781 in
Construction Split Taper Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Weight 8.647 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 36HQ150 runs H (0.500 in trapezoidal) belts in 1.5 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 36HQ150 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Regal Rexnord (Browning®) 36HQ150
Powerdrive 36HQ150

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 36HQ150 pulley?

H (0.500 in trapezoidal) timing belts in 1.5 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 36HQ150 replace the Regal Rexnord 36HQ150?

Yes. Published interchange data crosses the 36HQ150 directly to the Regal Rexnord 36HQ150, as well as Powerdrive 36HQ150. Verify dimensions and bore before ordering.

Does the 36HQ150 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
