36T5/32-2 Timing Pulley, 32 Teeth, T5 Pitch


Price:
$ 26.56

Description

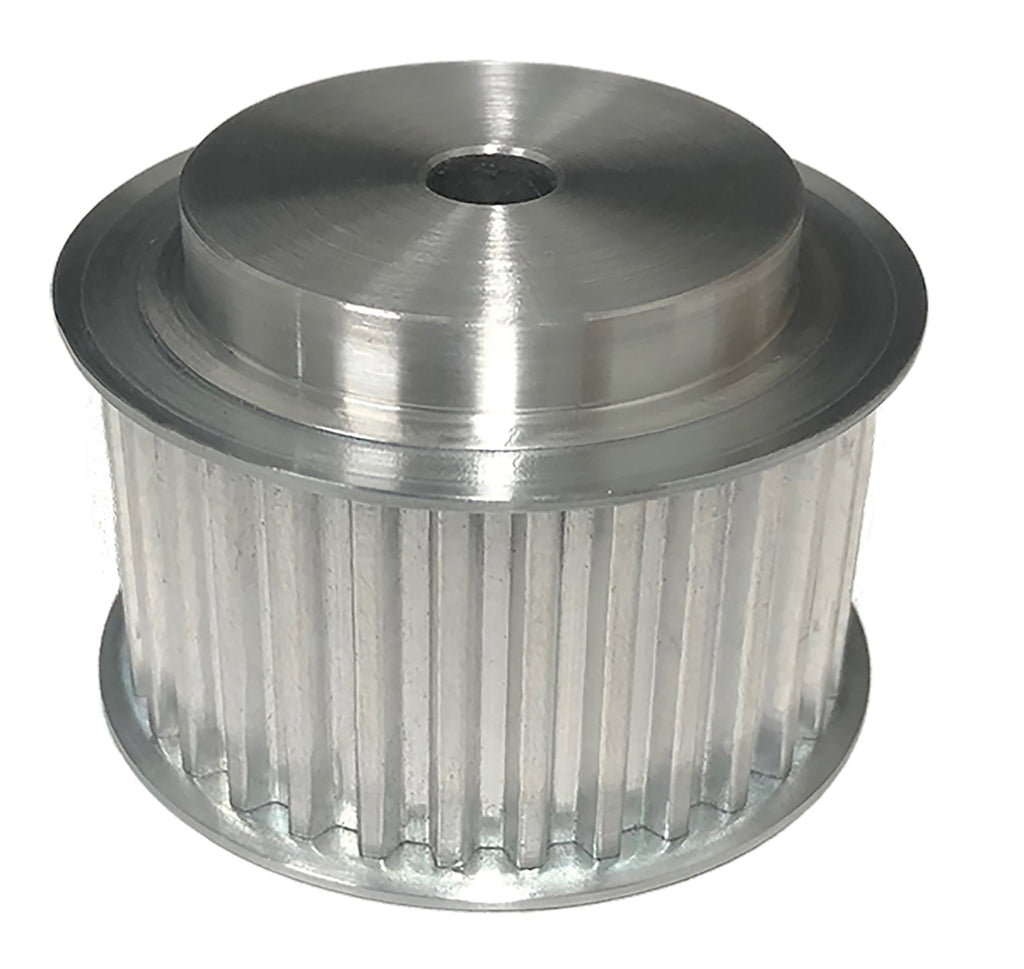

36T5/32-2 Timing Pulley, 32 Teeth, T5 Pitch

The 36T5/32-2 is a 32-tooth T5 (5 mm metric) timing pulley with a 8 mm minimum plain bore, machined from aluminum, built for 25mm wide belts. Machined from solid stock, never sintered or powdered metal.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 36T5/32-2
Teeth 32
Pitch T5 (5 mm metric)
For Belt Width 25mm
Pitch Diameter 2.0051 in
Outside Diameter 1.9701 in
Bore 8 mm minimum plain bore
Construction Standard Hub
Flange Material Steel
Material Aluminum (no sintered or powdered metal)
Weight 0.425 lb
Country of Origin India

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 36T5/32-2 runs T5 (5 mm metric) belts in 25mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 36T5/32-2 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Mitsuboshi 36T5/32-2
Jason Industrial 36T5/32-2
Optibelt 36T5/32-2
On Drives 36T5/32-2
Ametric 36T5/32 2
McMaster-Carr 1428N74
Powerdrive 36T5/32-2

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 36T5/32-2 pulley?

T5 (5 mm metric) timing belts in 25mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 36T5/32-2 replace the Mitsuboshi 36T5/32-2?

Yes. Published interchange data crosses the 36T5/32-2 directly to the Mitsuboshi 36T5/32-2, as well as Jason Industrial 36T5/32-2, Optibelt 36T5/32-2, On Drives 36T5/32-2. Verify dimensions and bore before ordering.

Does the 36T5/32-2 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 36T5/32-2?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
