Description

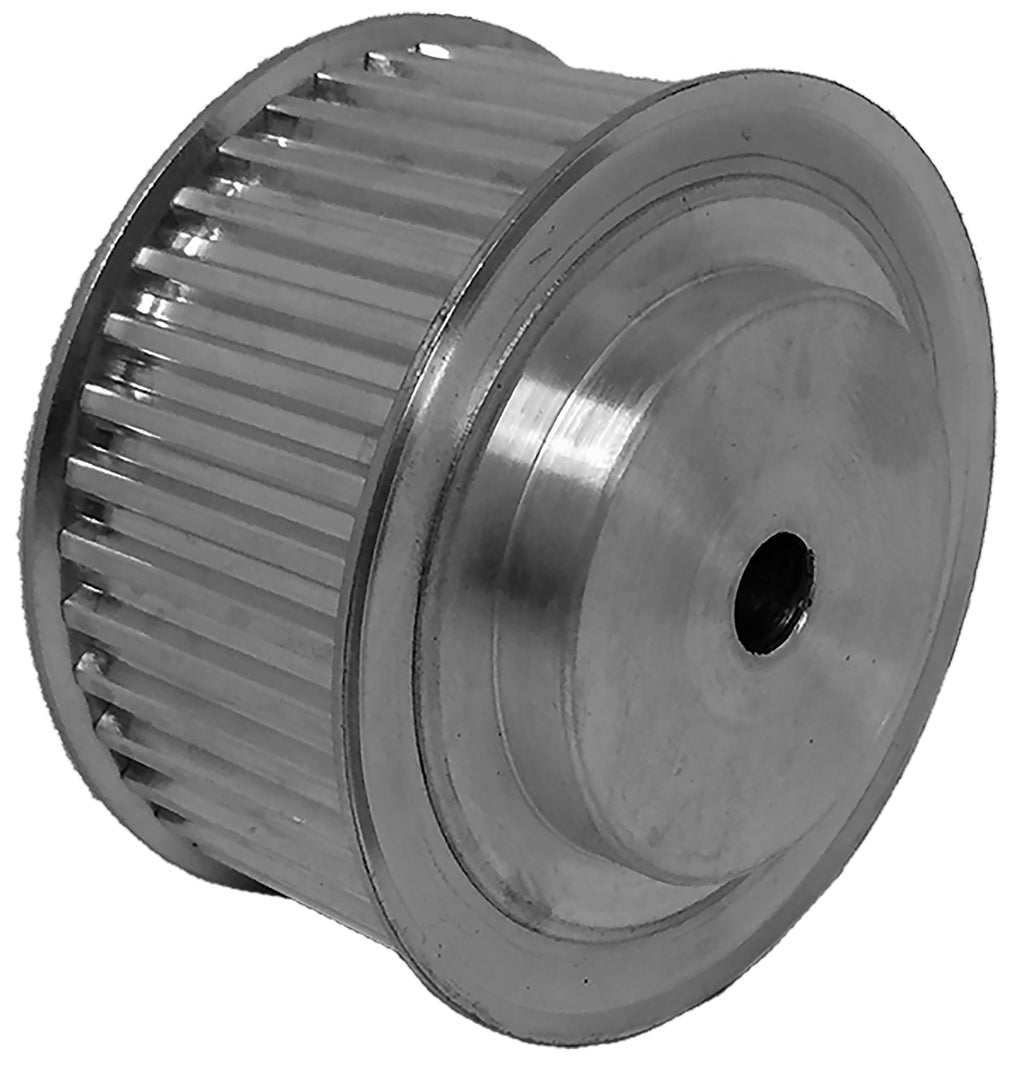

36T5/48-2 Timing Pulley, 48 Teeth, T5 Pitch
The 36T5/48-2 is a 48-tooth T5 (5 mm metric) timing pulley with a 8 mm minimum plain bore, machined from aluminum with a clear anodized finish, built for 25mm wide belts. Machined from solid stock, never sintered or powdered metal.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 36T5/48-2 |
| Teeth | 48 |
| Pitch | T5 (5 mm metric) |
| For Belt Width | 25mm |
| Pitch Diameter | 3.0077 in |
| Outside Diameter | 2.9714 in |
| Bore | 8 mm minimum plain bore |
| Flange Material | Steel |
| Material | Aluminum (no sintered or powdered metal) |
| Finish | Clear Anodized |
| Weight | 0.937 lb |
| Country of Origin | India |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The 36T5/48-2 runs T5 (5 mm metric) belts in 25mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 36T5/48-2 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Mitsuboshi | 36T5/48-2 |
| Optibelt | 36T5/48-2 |
| On Drives | 36T5/48-2 |
| Powerdrive | 36T5/48-2 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 36T5/48-2 pulley?
T5 (5 mm metric) timing belts in 25mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 36T5/48-2 replace the Mitsuboshi 36T5/48-2?
Yes. Published interchange data crosses the 36T5/48-2 directly to the Mitsuboshi 36T5/48-2, as well as Optibelt 36T5/48-2, On Drives 36T5/48-2, Powerdrive 36T5/48-2. Verify dimensions and bore before ordering.
Does the 36T5/48-2 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
