Description

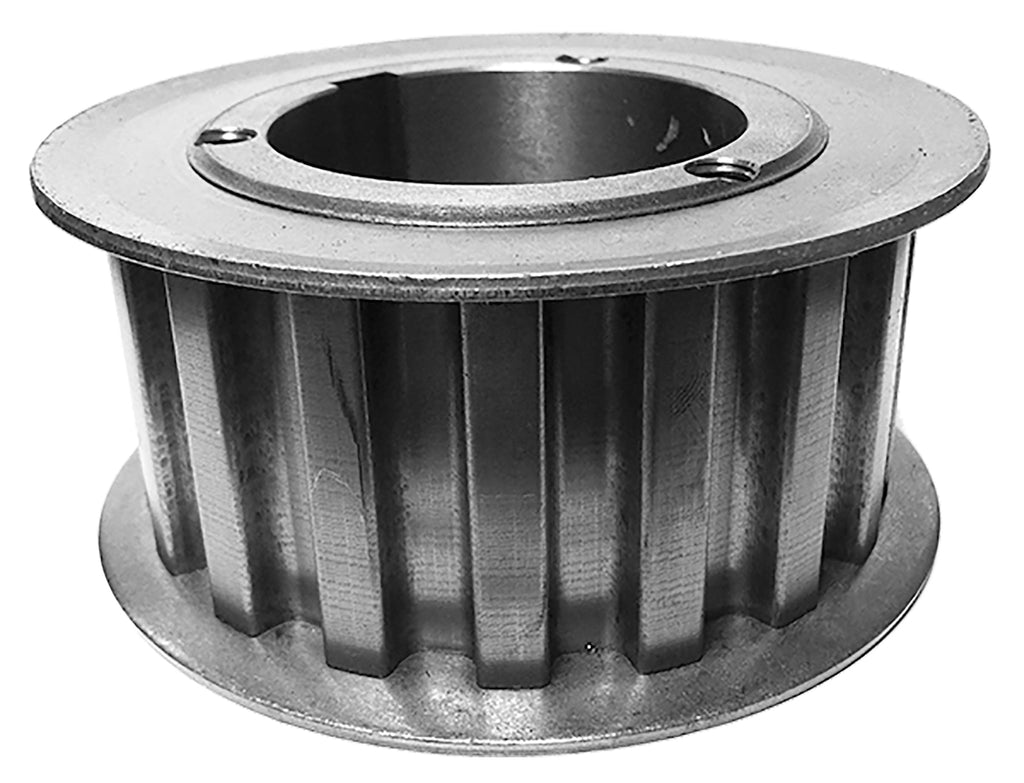

36XHR200 Timing Pulley, 36 Teeth, XH Pitch
The 36XHR200 is a 36-tooth XH (0.875 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 36XHR200 |
| Teeth | 36 |
| Pitch | XH (0.875 in trapezoidal) |
| For Belt Width | 2 in |
| Pitch Diameter | 10.0268 in |
| Outside Diameter | 9.9168 in |
| Flange Diameter | 10.563 in |
| Bore | Accepts R1 bushing (not included) |
| Face Width | 2.563 in |
| Overall Length | 3.156 in |
| Construction | Split Taper Hub |
| Flange Material | Steel |
| Material | Cast Iron (no sintered or powdered metal) |
| Weight | 35.7 lb |
| Country of Origin | China |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The 36XHR200 runs XH (0.875 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 36XHR200 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Regal Rexnord (Browning®) | 36XHR200 |
| Powerdrive | 36XHR200 |
| Continental (ContiTech) | 36XHR200-R1 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 36XHR200 pulley?
XH (0.875 in trapezoidal) timing belts in 2 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 36XHR200 replace the Regal Rexnord 36XHR200?
Yes. Published interchange data crosses the 36XHR200 directly to the Regal Rexnord 36XHR200, as well as Powerdrive 36XHR200, Continental 36XHR200-R1. Verify dimensions and bore before ordering.
Does the 36XHR200 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
