36XHR300 Timing Pulley, 36 Teeth, XH Pitch


Price:
$ 681.13

Description

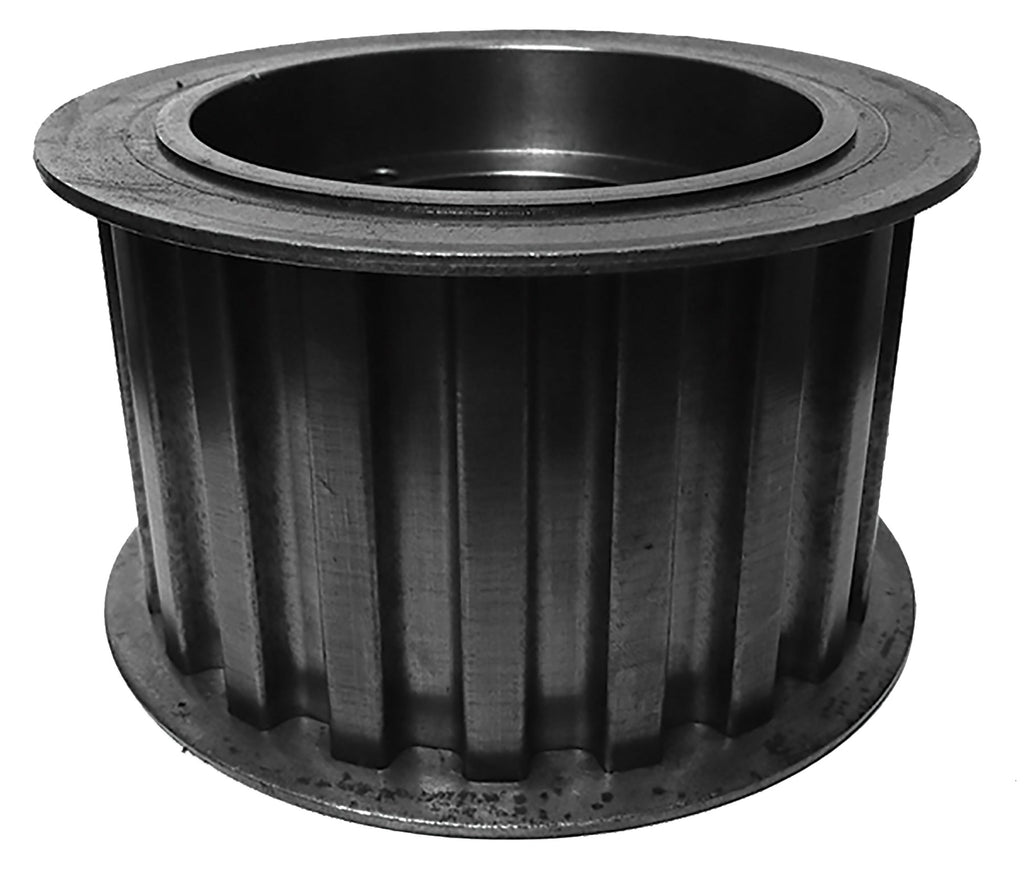

36XHR300 Timing Pulley, 36 Teeth, XH Pitch

The 36XHR300 is a 36-tooth XH (0.875 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron, built for 3 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 11 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 36XHR300
Teeth 36
Pitch XH (0.875 in trapezoidal)
For Belt Width 3 in
Pitch Diameter 10.0268 in
Outside Diameter 9.9168 in
Flange Diameter 10.563 in
Bore Accepts R1 bushing (not included)
Face Width 3.625 in
Overall Length 3.906 in
Construction Split Taper Hub
Flange Material Steel
Material Cast Iron (no sintered or powdered metal)
Weight 41.835 lb
Country of Origin China

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 36XHR300 runs XH (0.875 in trapezoidal) belts in 3 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 36XHR300 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Regal Rexnord (Browning®) 36XHR300
Powerdrive 36XHR300

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 36XHR300 pulley?

XH (0.875 in trapezoidal) timing belts in 3 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 36XHR300 replace the Regal Rexnord 36XHR300?

Yes. Published interchange data crosses the 36XHR300 directly to the Regal Rexnord 36XHR300, as well as Powerdrive 36XHR300. Verify dimensions and bore before ordering.

Does the 36XHR300 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
