38-14MX68-3020 Powerhouse® MX Timing Pulley, 38 Teeth, 14MX Pitch


Price:
$ 425.89

Description

38-14MX68-3020 Powerhouse® MX Timing Pulley, 38 Teeth, 14MX Pitch

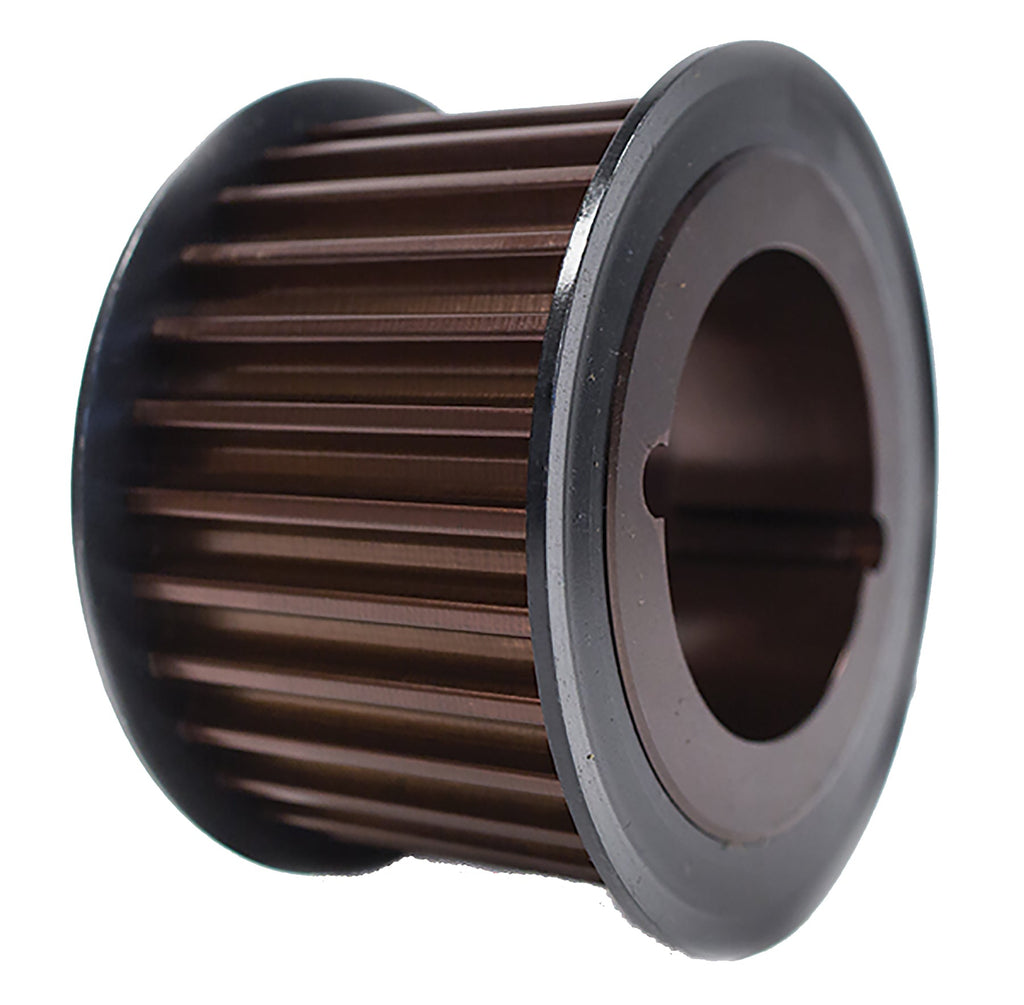

The 38-14MX68-3020 is a 38-tooth 14 mm MX high torque timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 68mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 38-14MX68-3020
Teeth 38
Pitch 14 mm MX high torque
For Belt Width 68mm
Pitch Diameter 6.667 in
Outside Diameter 6.557 in
Flange Diameter 7.167 in
Bore Accepts 3020 bushing (not included)
Face Width 3.328 in
Overall Length 3.328 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 13.1 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives

Belt Compatibility

The 38-14MX68-3020 runs 14 mm MX high torque belts in 68mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 38-14MX68-3020 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 14MX-38S-68-3020
Martin 14MX38S68-3020
Gates® 14MX-38S-68
TB Woods® 14MPC38S68
Regal Rexnord (Browning®) B14MCS-38-68
Mitsuboshi 38-14MX68-3020
Grainger 809RW3
Grainger 3PDX7
Powerdrive 38-14MX68-3020
Continental (ContiTech) 38G-14M-68-3020

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 38-14MX68-3020 pulley?

14 mm MX high torque timing belts in 68mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 38-14MX68-3020 replace the Dodge 14MX-38S-68-3020?

Yes. Published interchange data crosses the 38-14MX68-3020 directly to the Dodge 14MX-38S-68-3020, as well as Martin 14MX38S68-3020, Gates 14MX-38S-68, TB Woods 14MPC38S68. Verify dimensions and bore before ordering.

Does the 38-14MX68-3020 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 38-14MX68-3020?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. Poly Chain®, GT®, and Carbon™ are trademarks of Gates Corporation. Synchrochain is a trademark of Continental. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
