Description

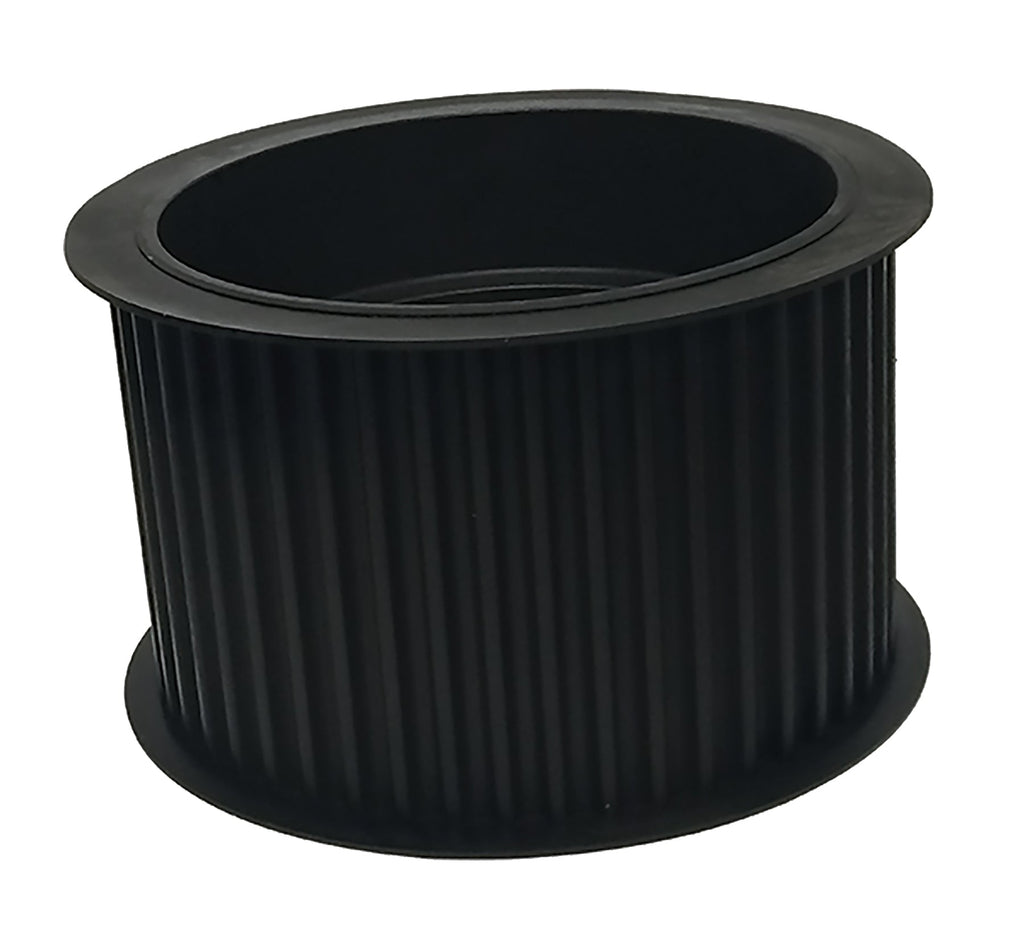

38-14MX90-3020 Powerhouse® MX Timing Pulley, 38 Teeth, 14MX Pitch
The 38-14MX90-3020 is a 38-tooth 14 mm MX high torque timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 9mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 38-14MX90-3020 |
| Teeth | 38 |
| Pitch | 14 mm MX high torque |
| For Belt Width | 9mm |
| Pitch Diameter | 6.667 in |
| Outside Diameter | 6.557 in |
| Flange Diameter | 7.167 in |
| Bore | Accepts 3020 bushing (not included) |
| Face Width | 4.203 in |
| Overall Length | 4.203 in |
| Construction | Taper Lock Hub |
| Flange Material | Steel |
| Material | Ductile Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 15.044 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- High torque, low speed drives replacing roller chain
- Air cooled heat exchanger (ACHE) fan drives
- Oil and gas pumping equipment
- Material handling and conveyor drives
Belt Compatibility
The 38-14MX90-3020 runs 14 mm MX high torque belts in 9mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 38-14MX90-3020 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | 14MX-38S-90-3020 |
| Martin | 14MX38S90-3020 |
| Gates® | 14MX-38S-90 |
| TB Woods® | 14MPC38S90 |
| Regal Rexnord (Browning®) | B14MCS-38-90 |
| Mitsuboshi | 38-14MX90-3020 |
| Powerdrive | 38-14MX90-3020 |
| Continental (ContiTech) | 38G-14M-90-3020 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 38-14MX90-3020 pulley?
14 mm MX high torque timing belts in 9mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 38-14MX90-3020 replace the Dodge 14MX-38S-90-3020?
Yes. Published interchange data crosses the 38-14MX90-3020 directly to the Dodge 14MX-38S-90-3020, as well as Martin 14MX38S90-3020, Gates 14MX-38S-90, TB Woods 14MPC38S90. Verify dimensions and bore before ordering.
Does the 38-14MX90-3020 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
