38-14P40-2517 Powerhouse® Timing Pulley, 38 Teeth, 14P Pitch

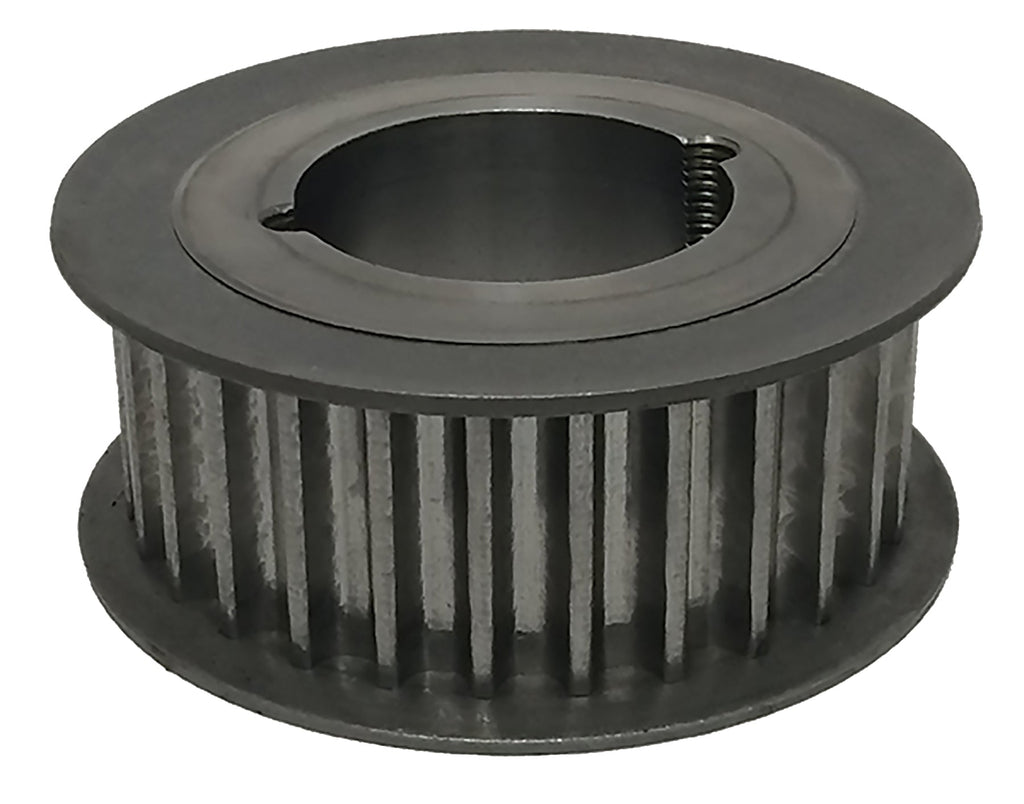

The 38-14P40-2517 is a 38-tooth 14 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 4mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 38-14P40-2517 |
| Teeth | 38 |
| Pitch | 14 mm Powerhouse® curvilinear |
| For Belt Width | 4mm |
| Pitch Diameter | 6.667 in |
| Outside Diameter | 6.557 in |
| Flange Diameter | 7.167 in |
| Bore | Accepts 2517 bushing (not included) |
| Face Width | 2.13 in |
| Overall Length | 2.13 in |
| Construction | Taper Lock Hub |
| Flange Material | Steel |
| Material | Ductile Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 12.743 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- Higher load synchronous drives in compact spaces
- Industrial automation and conveyor drives
- Packaging and material handling equipment
Belt Compatibility
The 38-14P40-2517 runs 14 mm Powerhouse® curvilinear belts in 4mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 38-14P40-2517 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | P38-14M-40-2517 |
| Martin | P3814M40-2517 |
| Gates® | P38-14MGT-40 |
| TB Woods® | P3814M40TL |
| Regal Rexnord (Browning®) | B3814M40TL |
| Ametric | 14M38TL40.2517 |
| Grainger | 809TN2 |
| Powerdrive | 38-14P40-2517 |
| Continental (ContiTech) | P38-14M-40-2517 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 38-14P40-2517 pulley?
14 mm Powerhouse® curvilinear timing belts in 4mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 38-14P40-2517 replace the Dodge P38-14M-40-2517?
Yes. Published interchange data crosses the 38-14P40-2517 directly to the Dodge P38-14M-40-2517, as well as Martin P3814M40-2517, Gates P38-14MGT-40, TB Woods P3814M40TL. Verify dimensions and bore before ordering.
Does the 38-14P40-2517 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
