38-3P09-IA3 Powerhouse® Timing Pulley, 38 Teeth, 3P Pitch, 1/4 in Bore


Price:
$ 22.19

Description

38-3P09-IA3 Powerhouse® Timing Pulley, 38 Teeth, 3P Pitch, 1/4 in Bore

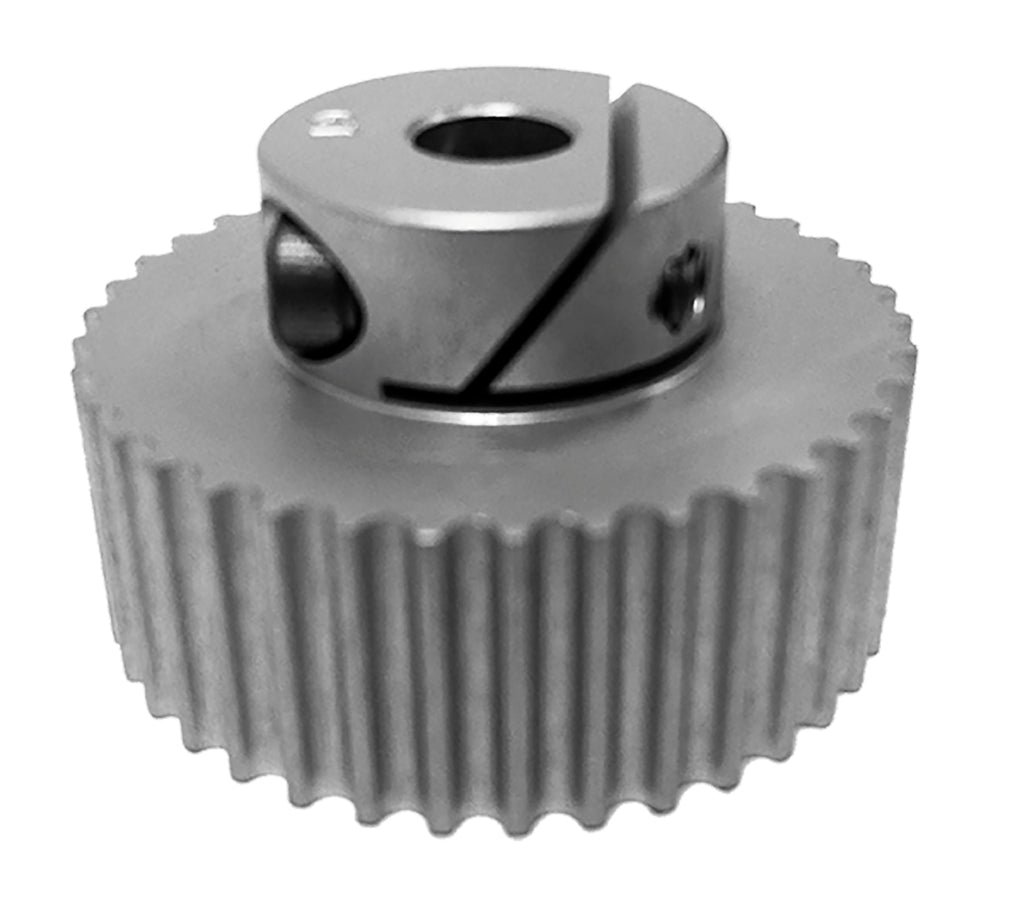

The 38-3P09-IA3 is a 38-tooth 3 mm Powerhouse® curvilinear timing pulley with a 1/4 in finished bore, machined from aluminum with a clear anodized finish, built for 9mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6FI pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 38-3P09-IA3
Teeth 38
Pitch 3 mm Powerhouse® curvilinear
For Belt Width 9mm
Pitch Diameter 1.4286 in
Outside Diameter 1.3986 in
Flange Diameter 1.549 in
Bore 1/4 in finished bore
Face Width 0.527 in
Overall Length 0.844 in
Hub Diameter 0.75 in
Construction EZ Lock Hub
Material Aluminum (no sintered or powdered metal)
Finish Clear Anodized
Weight 0.12 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 38-3P09-IA3 runs 3 mm Powerhouse® curvilinear belts in 9mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 38-3P09-IA3 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Stock Drive Products (SDP/SI) A 6D53-038DF0908
Powerdrive 38-3P09-IA3

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 38-3P09-IA3 pulley?

3 mm Powerhouse® curvilinear timing belts in 9mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 38-3P09-IA3 replace the Stock Drive Products A 6D53-038DF0908?

Yes. Published interchange data crosses the 38-3P09-IA3 directly to the Stock Drive Products A 6D53-038DF0908, as well as Powerdrive 38-3P09-IA3. Verify dimensions and bore before ordering.

Does the 38-3P09-IA3 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 38-3P09-IA3?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
