38-8M-PS8S Timing Pulley Bar Stock, 38 Teeth, 8M Pitch


Price:
$ 352.20

Description

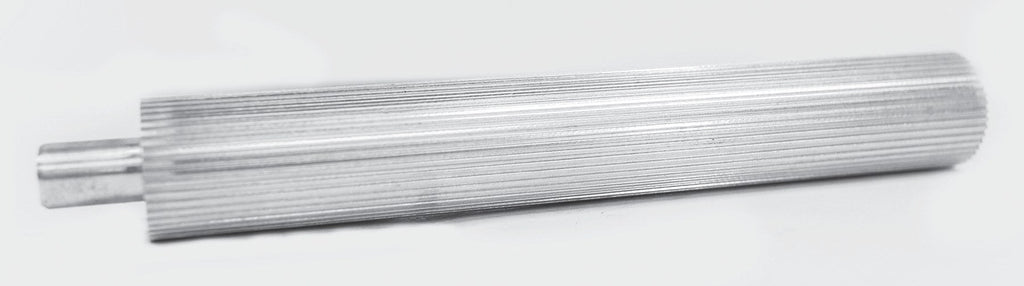

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

38-8M-PS8S Timing Pulley Bar Stock, 38 Teeth, 8M Pitch

The 38-8M-PS8S is machine-ready timing pulley bar stock with 38 teeth in 8 mm HTD® compatible pitch, steel. Pulley stock lets a machine shop turn finished custom pulleys without cutting teeth: part off a blank, bore, and finish.

Specifications

Specification Value
Part Number 38-8M-PS8S
Teeth 38
Pitch 8 mm HTD® compatible
Maximum Usable Length 8 in
Shank Length 1 in
Material Steel (no sintered or powdered metal)
Weight 21.94 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Machining custom-width timing pulleys to order
  • Prototype and short-run drive development
  • Special bores, hubs, and flange configurations not available as catalog parts

Cross Reference

The 38-8M-PS8S interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Neuman 38-8M-PS-8S
Powerdrive 38-8M-PS8S

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

How is pulley bar stock like the 38-8M-PS8S used?

Cut a blank to the face width you need, machine the bore, hub, and any flange seats, and you have a custom pulley with factory-quality teeth. It is the standard route for prototypes and non-catalog widths.

Does the 38-8M-PS8S replace the Neuman 38-8M-PS-8S?

Yes. Published interchange data crosses the 38-8M-PS8S directly to the Neuman 38-8M-PS-8S, as well as Powerdrive 38-8M-PS8S. Verify dimensions and bore before ordering.

Does the 38-8M-PS8S ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
