38-8MX36-6FS6 Powerhouse® MX Timing Pulley, 38 Teeth, 8MX Pitch


Price:
$ 169.55

Description

38-8MX36-6FS6 Powerhouse® MX Timing Pulley, 38 Teeth, 8MX Pitch

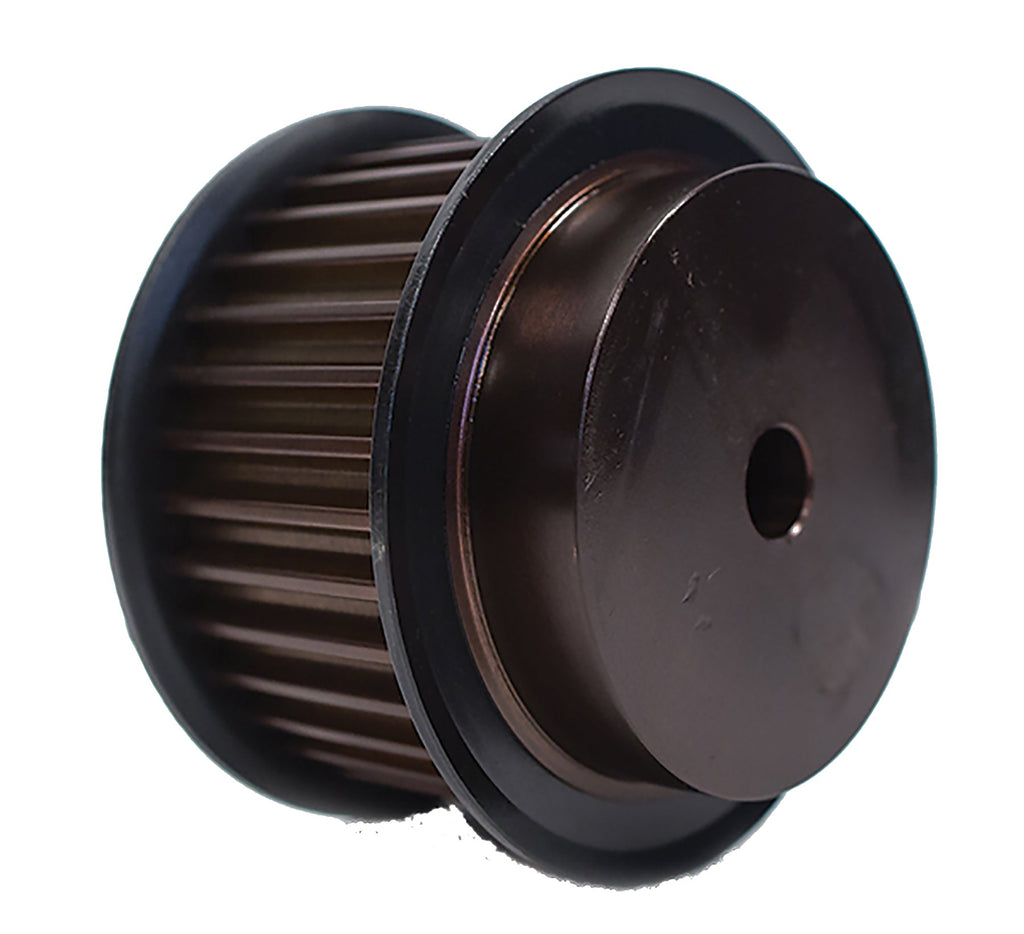

The 38-8MX36-6FS6 is a 38-tooth 8 mm MX high torque timing pulley with a 1/2 in minimum plain bore, machined from ductile iron with a black oxide finish, built for 36mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type 6FNOKEY pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 38-8MX36-6FS6
Teeth 38
Pitch 8 mm MX high torque
For Belt Width 36mm
Pitch Diameter 3.8097 in
Outside Diameter 3.7467 in
Flange Diameter 4.156 in
Bore 1/2 in minimum plain bore
Face Width 1.859 in
Overall Length 2.516 in
Hub Diameter 3.328 in
Construction Standard Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 6.299 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives

Belt Compatibility

The 38-8MX36-6FS6 runs 8 mm MX high torque belts in 36mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 38-8MX36-6FS6 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 8MX-38S-36-MPB
Martin PB8MX38S36
Gates® PB8MX-38S-36
TB Woods® 8MPC38S36MPB
Regal Rexnord (Browning®) PB8MCS-38-36
Mitsuboshi 38-8MX36-6FS6
Grainger 809RW7
Powerdrive 38-8MX36-6FS6
Continental (ContiTech) 38G-8M-36-MPB

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 38-8MX36-6FS6 pulley?

8 mm MX high torque timing belts in 36mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 38-8MX36-6FS6 replace the Dodge 8MX-38S-36-MPB?

Yes. Published interchange data crosses the 38-8MX36-6FS6 directly to the Dodge 8MX-38S-36-MPB, as well as Martin PB8MX38S36, Gates PB8MX-38S-36, TB Woods 8MPC38S36MPB. Verify dimensions and bore before ordering.

Does the 38-8MX36-6FS6 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 38-8MX36-6FS6?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. Poly Chain®, GT®, and Carbon™ are trademarks of Gates Corporation. Synchrochain is a trademark of Continental. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
