38-8P30-1610 Powerhouse® Timing Pulley, 38 Teeth, 8P Pitch


Price:
$ 127.15

Description

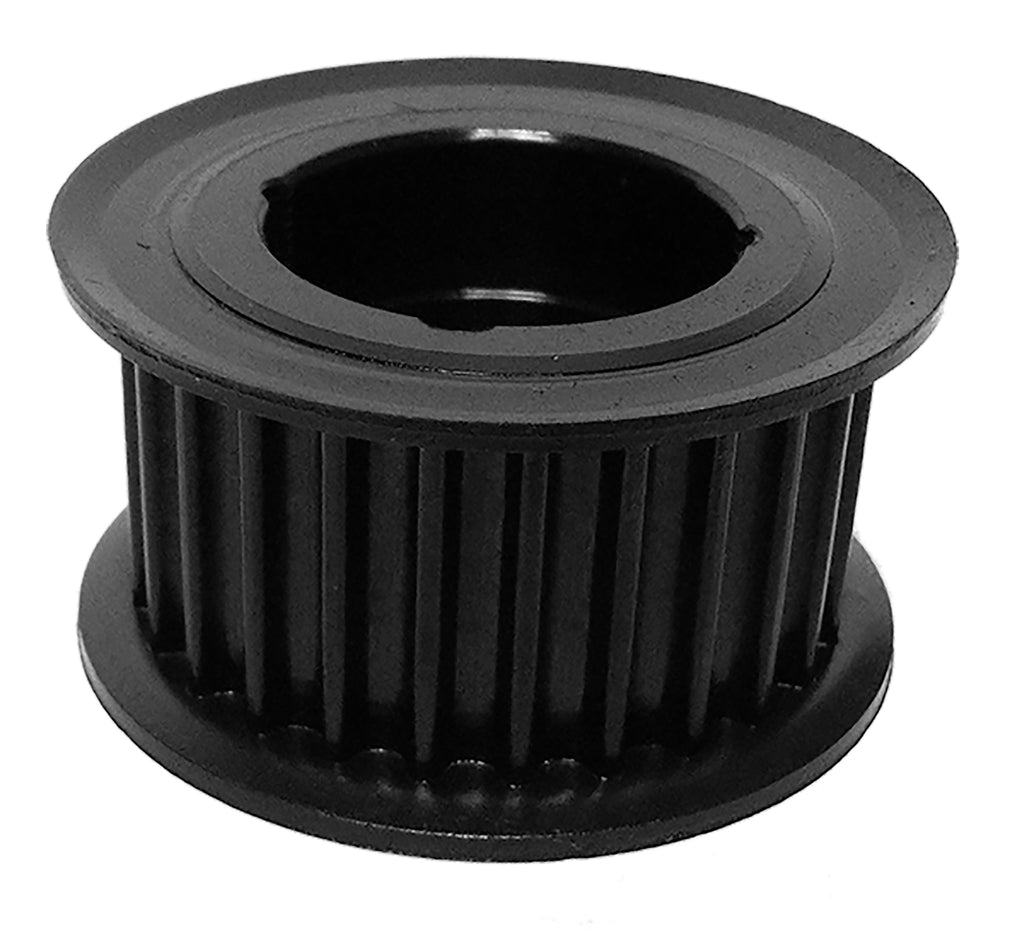

38-8P30-1610 Powerhouse® Timing Pulley, 38 Teeth, 8P Pitch

The 38-8P30-1610 is a 38-tooth 8 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 3mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 38-8P30-1610
Teeth 38
Pitch 8 mm Powerhouse® curvilinear
For Belt Width 3mm
Pitch Diameter 3.8097 in
Outside Diameter 3.7557 in
Flange Diameter 4.156 in
Bore Accepts 1610 bushing (not included)
Face Width 1.5 in
Overall Length 1.5 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 2.513 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 38-8P30-1610 runs 8 mm Powerhouse® curvilinear belts in 3mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 38-8P30-1610 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P38-8M-30-1610
Martin P388M30-1610
Gates® P38-8MGT-30
TB Woods® P388M30TL
Regal Rexnord (Browning®) B388M30TL
Ametric 8M38TL30.1615
Grainger 809TP1
Powerdrive 38-8P30-1610
Continental (ContiTech) P38-8M-30-1610

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 38-8P30-1610 pulley?

8 mm Powerhouse® curvilinear timing belts in 3mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 38-8P30-1610 replace the Dodge P38-8M-30-1610?

Yes. Published interchange data crosses the 38-8P30-1610 directly to the Dodge P38-8M-30-1610, as well as Martin P388M30-1610, Gates P38-8MGT-30, TB Woods P388M30TL. Verify dimensions and bore before ordering.

Does the 38-8P30-1610 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 38-8P30-1610?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
