Description

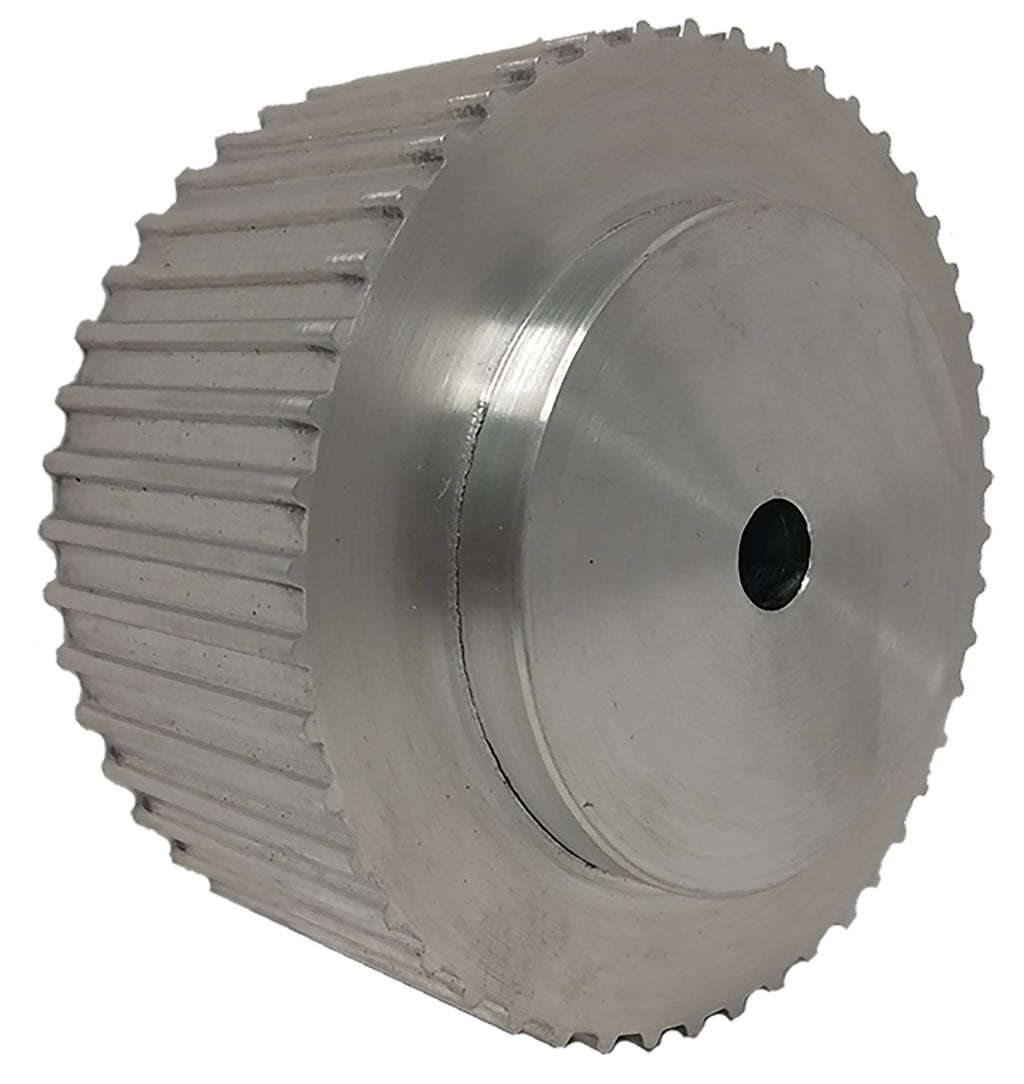

38AT5/48-0 Timing Pulley, 48 Teeth, AT5 Pitch
The 38AT5/48-0 is a 48-tooth AT5 (5 mm metric) timing pulley with a 8 mm minimum plain bore, machined from aluminum, built for 25mm wide belts. Machined from solid stock, never sintered or powdered metal.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 38AT5/48-0 |
| Teeth | 48 |
| Pitch | AT5 (5 mm metric) |
| For Belt Width | 25mm |
| Pitch Diameter | 3.0077 in |
| Outside Diameter | 2.9565 in |
| Bore | 8 mm minimum plain bore |
| Construction | Standard Hub |
| Material | Aluminum (no sintered or powdered metal) |
| Weight | 0.908 lb |
| Country of Origin | India |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The 38AT5/48-0 runs AT5 (5 mm metric) belts in 25mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 38AT5/48-0 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Mitsuboshi | 38AT5/48-0 |
| Jason Industrial | 36AT5/48-0 |
| Optibelt | 38AT5/48-0 |
| Ametric | 38AT5/48 0 |
| Powerdrive | 38AT5/48-0 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 38AT5/48-0 pulley?
AT5 (5 mm metric) timing belts in 25mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 38AT5/48-0 replace the Mitsuboshi 38AT5/48-0?
Yes. Published interchange data crosses the 38AT5/48-0 directly to the Mitsuboshi 38AT5/48-0, as well as Jason Industrial 36AT5/48-0, Optibelt 38AT5/48-0, Ametric 38AT5/48 0. Verify dimensions and bore before ordering.
Does the 38AT5/48-0 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
Need a quote on 38AT5/48-0?
Houston warehouse, same-day shipping on stock items.
Call (888) 203-2358All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
