40-2P03M6FA6 Timing Pulley, 4 Teeth, 2P Pitch, 6 mm Bore


Price:
$ 20.56

Description

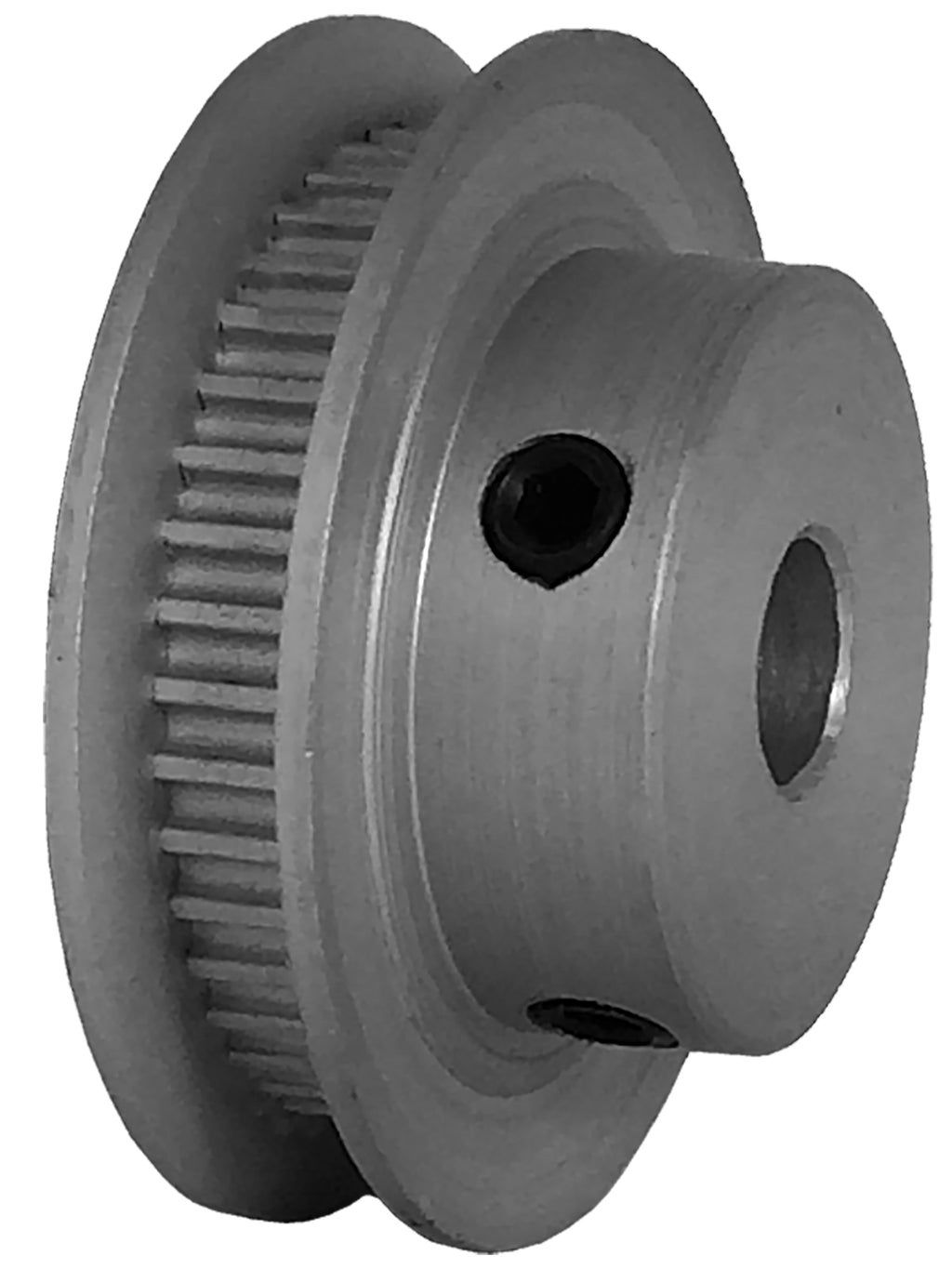

40-2P03M6FA6 Timing Pulley, 4 Teeth, 2P Pitch, 6 mm Bore

The 40-2P03M6FA6 is a 4-tooth 2 mm Powerhouse® curvilinear timing pulley with a 6 mm finished bore, machined from aluminum with a clear anodized finish, built for 3mm wide belts. Machined from solid stock, never sintered or powdered metal.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 40-2P03M6FA6
Teeth 4
Pitch 2 mm Powerhouse® curvilinear
For Belt Width 3mm
Pitch Diameter 1.0026 in
Outside Diameter 0.9826 in
Flange Diameter 1.21 in
Bore 6 mm finished bore
Overall Length 0.5314 in
Set Screws 2 x M3
Flange Material Aluminum
Material Aluminum (no sintered or powdered metal)
Finish Clear Anodized
Weight 0.037 lb
Country of Origin India

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 40-2P03M6FA6 runs 2 mm Powerhouse® curvilinear belts in 3mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 40-2P03M6FA6 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Stock Drive Products (SDP/SI) A 6A51M040DF0306
Powerdrive 40-2P03M6FA6

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 40-2P03M6FA6 pulley?

2 mm Powerhouse® curvilinear timing belts in 3mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 40-2P03M6FA6 replace the Stock Drive Products A 6A51M040DF0306?

Yes. Published interchange data crosses the 40-2P03M6FA6 directly to the Stock Drive Products A 6A51M040DF0306, as well as Powerdrive 40-2P03M6FA6. Verify dimensions and bore before ordering.

Does the 40-2P03M6FA6 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 40-2P03M6FA6?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
