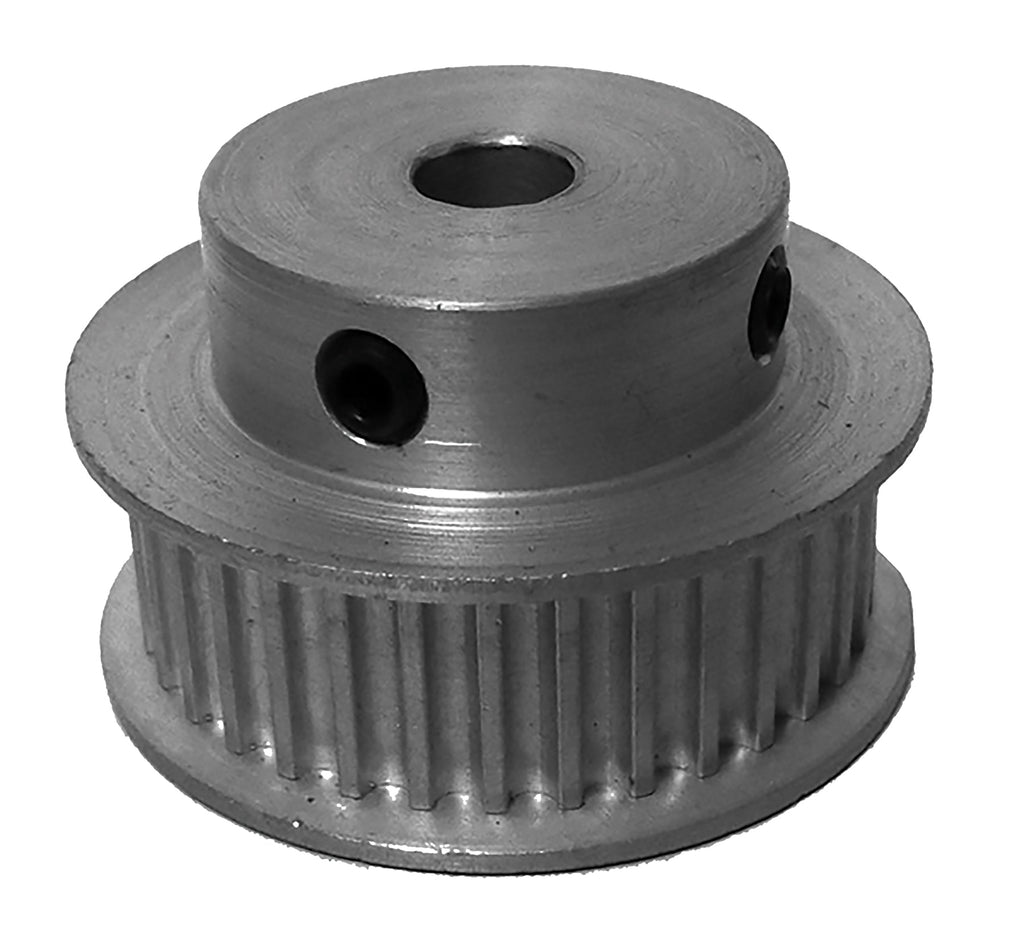

44-3M09-6FA6 Powerhouse® HTD Timing Pulley, 44 Teeth, 3M Pitch, 1/2 in Bore


Price:
$ 19.77

Description

44-3M09-6FA6 Powerhouse® HTD Timing Pulley, 44 Teeth, 3M Pitch, 1/2 in Bore

The 44-3M09-6FA6 is a 44-tooth 3 mm HTD® compatible timing pulley with a 1/2 in finished bore, machined from aluminum with a clear anodized finish, built for 9mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 44-3M09-6FA6
Teeth 44
Pitch 3 mm HTD® compatible
For Belt Width 9mm
Pitch Diameter 1.6542 in
Outside Diameter 1.6242 in
Flange Diameter 1.775 in
Bore 1/2 in finished bore
Face Width 0.833 in
Overall Length 0.833 in
Hub Diameter 1.3 in
Construction Standard Hub
Set Screws 2 x 8-32
Flange Material Aluminum
Material Aluminum (no sintered or powdered metal)
Finish Clear Anodized
Weight 0.1373 lb
Country of Origin India

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The 44-3M09-6FA6 runs 3 mm HTD® compatible belts in 9mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 44-3M09-6FA6 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Powerdrive 44-3M09-6FA6

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 44-3M09-6FA6 pulley?

3 mm HTD® compatible timing belts in 9mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 44-3M09-6FA6 replace the Powerdrive 44-3M09-6FA6?

Yes. Published interchange data crosses the 44-3M09-6FA6 directly to the Powerdrive 44-3M09-6FA6. Verify dimensions and bore before ordering.

Does the 44-3M09-6FA6 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 44-3M09-6FA6?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
