Description
Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

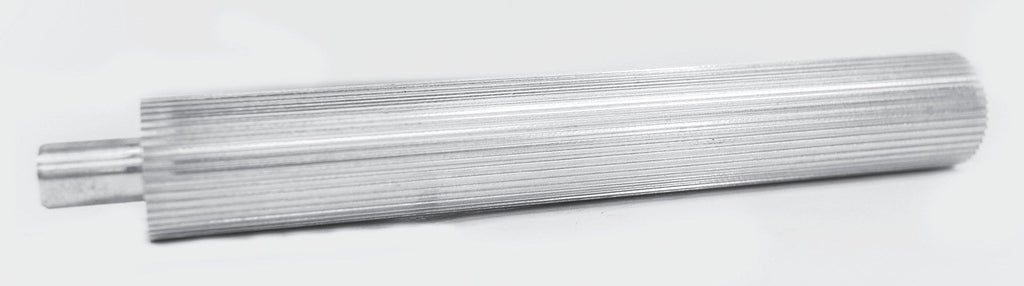

44-8M-PS8S Timing Pulley Bar Stock, 44 Teeth, 8M Pitch
The 44-8M-PS8S is machine-ready timing pulley bar stock with 44 teeth in 8 mm HTD® compatible pitch, steel. Pulley stock lets a machine shop turn finished custom pulleys without cutting teeth: part off a blank, bore, and finish.
Specifications
| Specification | Value |
|---|---|
| Part Number | 44-8M-PS8S |
| Teeth | 44 |
| Pitch | 8 mm HTD® compatible |
| Maximum Usable Length | 8 in |
| Shank Length | 1 in |
| Material | Steel (no sintered or powdered metal) |
| Weight | 29.356 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- Machining custom-width timing pulleys to order
- Prototype and short-run drive development
- Special bores, hubs, and flange configurations not available as catalog parts
Cross Reference
The 44-8M-PS8S interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Neuman | 44-8M-PS-8S |
| Powerdrive | 44-8M-PS8S |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
How is pulley bar stock like the 44-8M-PS8S used?
Cut a blank to the face width you need, machine the bore, hub, and any flange seats, and you have a custom pulley with factory-quality teeth. It is the standard route for prototypes and non-catalog widths.
Does the 44-8M-PS8S replace the Neuman 44-8M-PS-8S?
Yes. Published interchange data crosses the 44-8M-PS8S directly to the Neuman 44-8M-PS-8S, as well as Powerdrive 44-8M-PS8S. Verify dimensions and bore before ordering.
Does the 44-8M-PS8S ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
Need a quote on 44-8M-PS8S?
Houston warehouse, same-day shipping on stock items.
