45-8MXF62X1-3/8 Powerhouse® MX Timing Pulley, 45 Teeth, 8MX Pitch, 1-3/8 in Bore


Price:
$ 318.44

Description

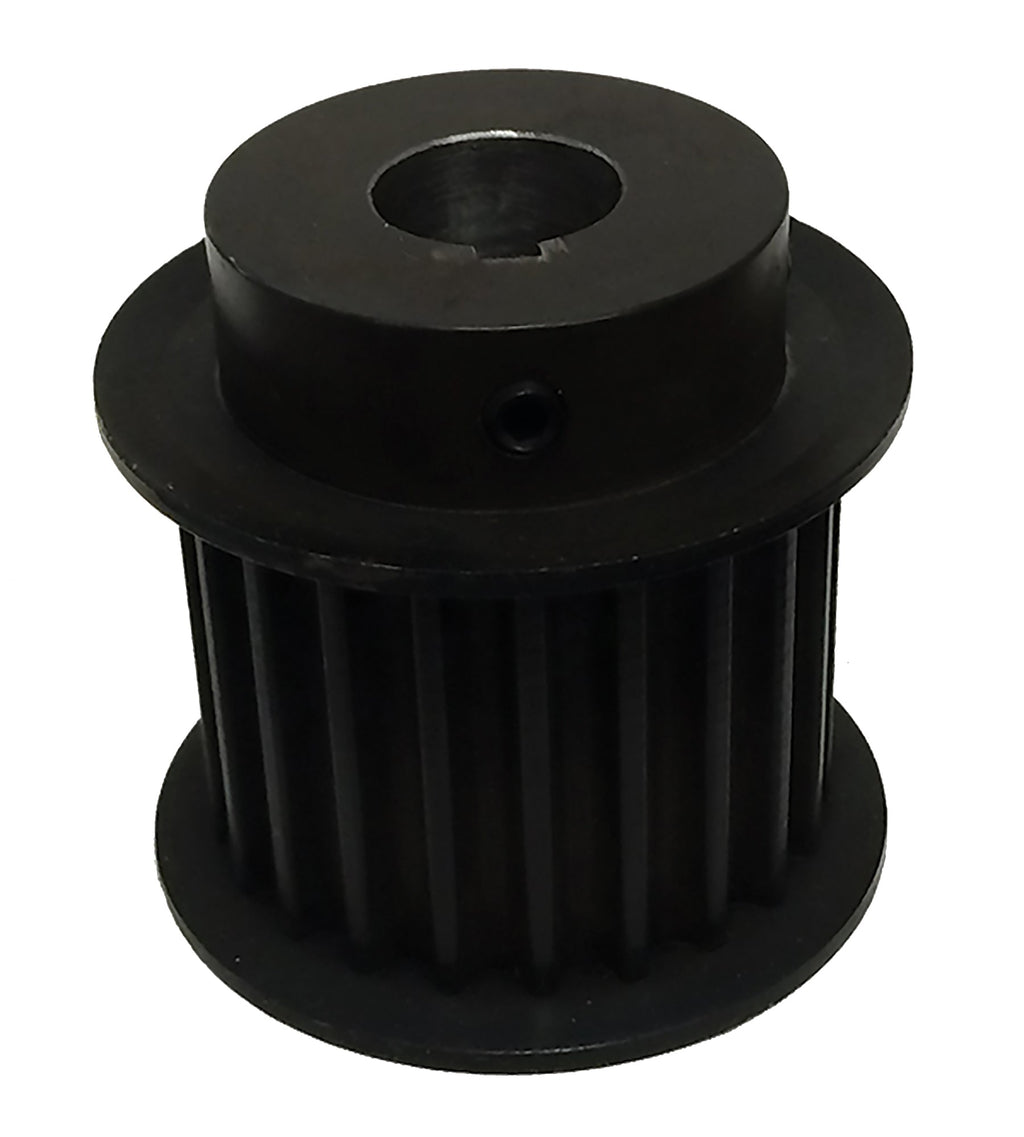

45-8MXF62X1-3/8 Powerhouse® MX Timing Pulley, 45 Teeth, 8MX Pitch, 1-3/8 in Bore

The 45-8MXF62X1-3/8 is a 45-tooth 8 mm MX high torque timing pulley with a 1-3/8 in finished bore, machined from ductile iron with a black oxide finish, built for 62mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type 6F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 45-8MXF62X1-3/8
Teeth 45
Pitch 8 mm MX high torque
For Belt Width 62mm
Pitch Diameter 4.5115 in
Outside Diameter 4.4485 in
Flange Diameter 5.01 in
Bore 1-3/8 in finished bore
Face Width 2.906 in
Overall Length 3.625 in
Construction Standard Hub
Set Screws 2 x 3/8-16
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 4.5 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives

Belt Compatibility

The 45-8MXF62X1-3/8 runs 8 mm MX high torque belts in 62mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 45-8MXF62X1-3/8 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Powerdrive 45-8MXF62X1-3/8

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 45-8MXF62X1-3/8 pulley?

8 mm MX high torque timing belts in 62mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 45-8MXF62X1-3/8 replace the Powerdrive 45-8MXF62X1-3/8?

Yes. Published interchange data crosses the 45-8MXF62X1-3/8 directly to the Powerdrive 45-8MXF62X1-3/8. Verify dimensions and bore before ordering.

Does the 45-8MXF62X1-3/8 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 45-8MXF62X1-3/8?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. Poly Chain®, GT®, and Carbon™ are trademarks of Gates Corporation. Synchrochain is a trademark of Continental. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
