4535x3-7/16 Taper-Lock® Style Bushing, 3-7/16 in Bore, Steel


Price:
$ 184.01

Description

4535x3-7/16 Taper-Lock® Style Bushing, 3-7/16 in Bore, Steel

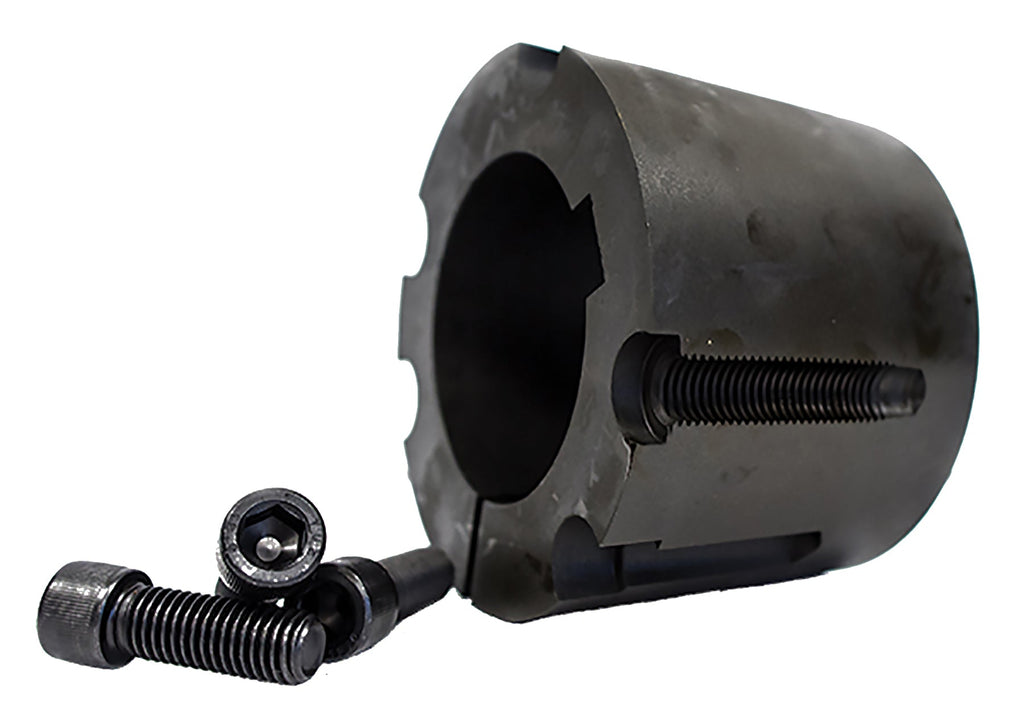

The 4535x3-7/16 is a 4535 series Taper-Lock style bushing with a 3-7/16 in bore, machined from solid steel with a black oxide finish. It mounts any 4535-bushed component, including sheaves, sprockets, and timing pulleys, to a 3-7/16 in shaft. Every bushing is machined from solid stock, never sintered or powdered metal, which matters in a part that transmits its load through a friction fit.

Specifications

Specification Value
Part Number 4535x3-7/16
Bushing System Taper-Lock® style
Series 4535
Bore 3-7/16 in
Torque Capacity 110000 in-lb
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 19.4 lb
Country of Origin China
Bolt Circle 6.13

Applications

  • Mounting 4535-bushed V-belt sheaves, sprockets, and timing pulleys to 3-7/16 in shafts
  • Drive component replacement where the bushing wears or the shaft size changes
  • Conveyor, fan, pump, and general industrial drive assemblies
  • Stocking standard bushing sizes for plant maintenance inventories

Cross Reference

The 4535x3-7/16 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 4535 X 3-7/16
Martin 4535 3 7/16
Gates® 4535 3.7/16
TB Woods® TL45353716
Jason Industrial 4535-3-7/16
Grainger 813AX2
Maska 4535X3-7/16

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What does the 4535x3-7/16 bushing fit?

It fits any sheave, sprocket, pulley, or coupling machined for a 4535 series Taper-Lock style bushing, and mounts that component to a 3-7/16 in shaft. The 4535 size is standardized across manufacturers, so the component brand does not matter.

Does the 4535x3-7/16 replace the Dodge 4535 X 3-7/16 bushing?

Yes. The 4535 series dimensions are an industry standard, and published interchange data crosses the 4535x3-7/16 directly to the Dodge 4535 X 3-7/16, as well as Martin 4535 3 7/16, Gates 4535 3.7/16, TB Woods TL45353716. Verify bore size before ordering.

How does a Taper-Lock style bushing install?

The bushing is split and tapered. Slide it onto the shaft, seat the component over it, and tighten the pull-up screws in the threaded holes. The screws draw the taper into the component, clamping the bushing onto the shaft. To remove, back the screws out and use them in the jacking holes to break the taper free.

Does the 4535x3-7/16 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 4535x3-7/16?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Taper-Lock® is a registered trademark of its respective owner. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
