47AT10/36-2 Timing Pulley, 36 Teeth, AT10 Pitch


Price:
$ 106.67

Description

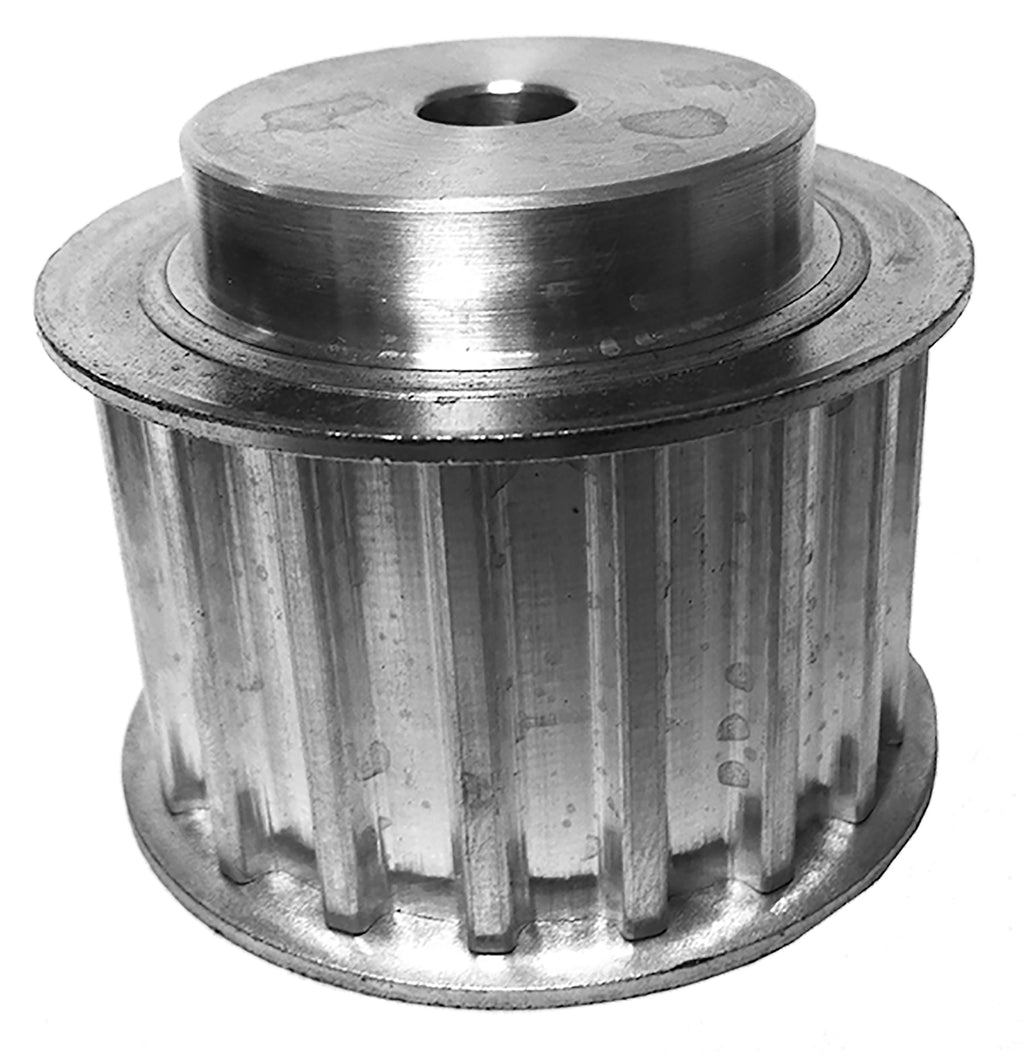

47AT10/36-2 Timing Pulley, 36 Teeth, AT10 Pitch

The 47AT10/36-2 is a 36-tooth AT10 (10 mm metric) timing pulley with a 16 mm minimum plain bore, machined from aluminum, built for 32mm wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 6F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 47AT10/36-2
Teeth 36
Pitch AT10 (10 mm metric)
For Belt Width 32mm
Pitch Diameter 4.5115 in
Outside Diameter 4.4367 in
Bore 16 mm minimum plain bore
Construction Standard Hub
Flange Material Steel
Material Aluminum (no sintered or powdered metal)
Weight 2.529 lb
Country of Origin China

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 47AT10/36-2 runs AT10 (10 mm metric) belts in 32mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 47AT10/36-2 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Mitsuboshi 47AT10/36-2
Jason Industrial 47AT10/36-2
Optibelt 47AT10/36-2
Ametric 47AT10/36 2
Powerdrive 47AT10/36-2

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 47AT10/36-2 pulley?

AT10 (10 mm metric) timing belts in 32mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 47AT10/36-2 replace the Mitsuboshi 47AT10/36-2?

Yes. Published interchange data crosses the 47AT10/36-2 directly to the Mitsuboshi 47AT10/36-2, as well as Jason Industrial 47AT10/36-2, Optibelt 47AT10/36-2, Ametric 47AT10/36 2. Verify dimensions and bore before ordering.

Does the 47AT10/36-2 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 47AT10/36-2?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
