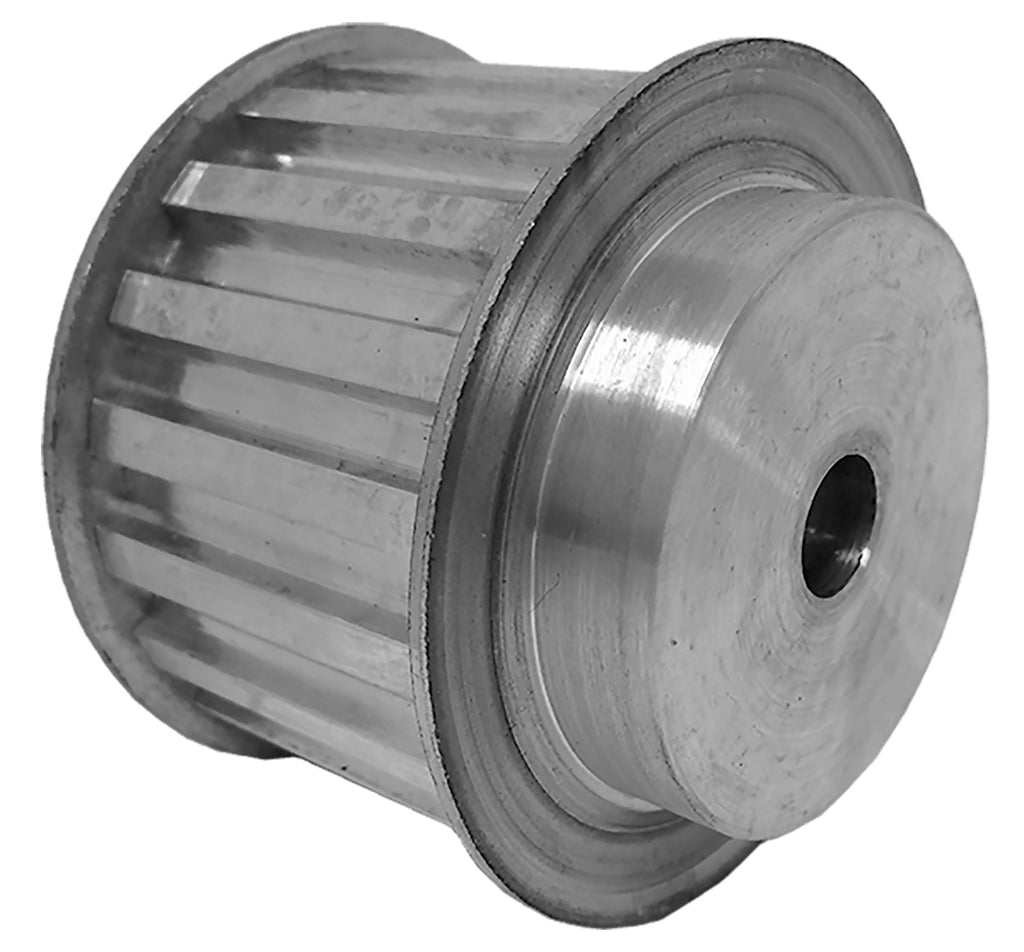

47T10/19-2 Timing Pulley, 19 Teeth, T10 Pitch, 10 mm Bore


Price:
$ 36.60

Description

47T10/19-2 Timing Pulley, 19 Teeth, T10 Pitch, 10 mm Bore

The 47T10/19-2 is a 19-tooth T10 (10 mm metric) timing pulley with a 10 mm finished bore, machined from aluminum, built for 32mm wide belts. Machined from solid stock, never sintered or powdered metal.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 47T10/19-2
Teeth 19
Pitch T10 (10 mm metric)
For Belt Width 32mm
Pitch Diameter 2.3811 in
Outside Diameter 2.3047 in
Bore 10 mm finished bore
Construction Standard Hub
Flange Material Steel
Material Aluminum (no sintered or powdered metal)
Weight 0.7 lb
Country of Origin India

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 47T10/19-2 runs T10 (10 mm metric) belts in 32mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 47T10/19-2 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Mitsuboshi 47T10/19-2
Jason Industrial 47T10/19-2
Optibelt 47T10/19-2
On Drives 47T10/19-2
Ametric 47T10/19 2
Powerdrive 47T10/19-2

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 47T10/19-2 pulley?

T10 (10 mm metric) timing belts in 32mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 47T10/19-2 replace the Mitsuboshi 47T10/19-2?

Yes. Published interchange data crosses the 47T10/19-2 directly to the Mitsuboshi 47T10/19-2, as well as Jason Industrial 47T10/19-2, Optibelt 47T10/19-2, On Drives 47T10/19-2. Verify dimensions and bore before ordering.

Does the 47T10/19-2 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 47T10/19-2?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
