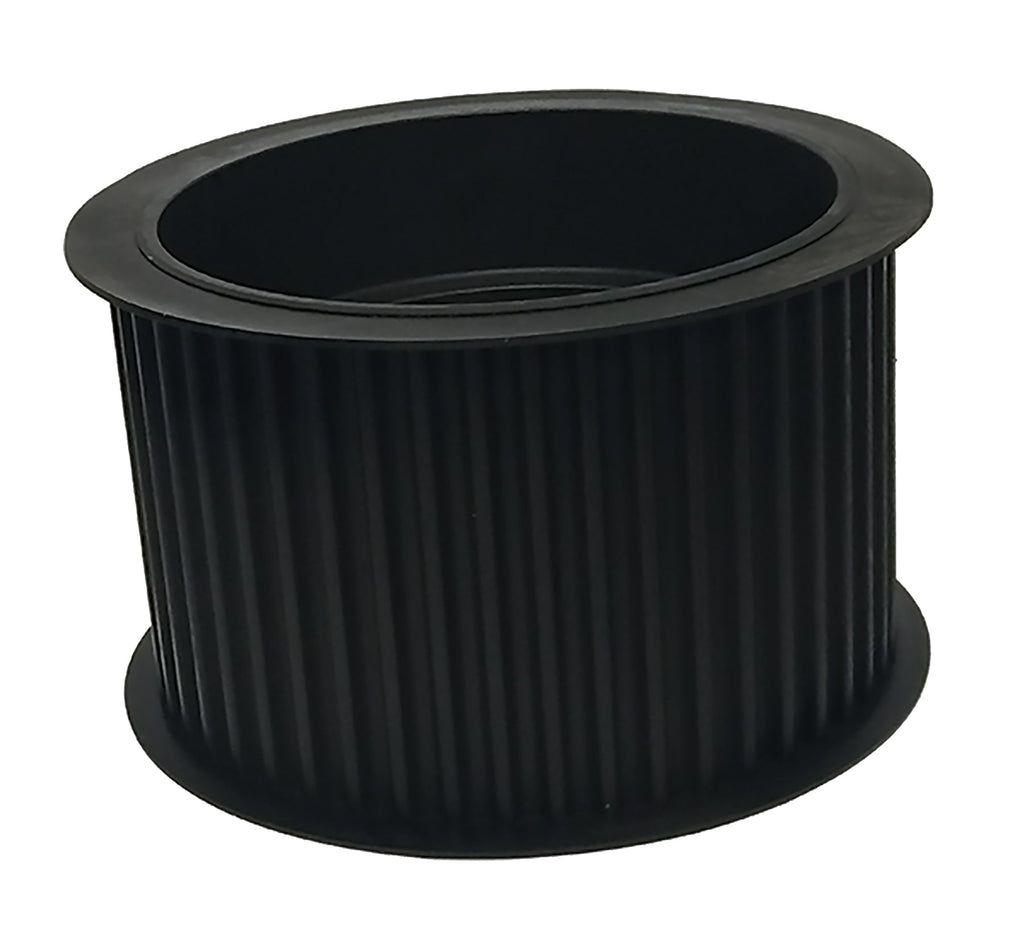

48-14P115-3535 Powerhouse® Timing Pulley, 48 Teeth, 14P Pitch


Price:
$ 492.22

Description

48-14P115-3535 Powerhouse® Timing Pulley, 48 Teeth, 14P Pitch

The 48-14P115-3535 is a 48-tooth 14 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 115mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 48-14P115-3535
Teeth 48
Pitch 14 mm Powerhouse® curvilinear
For Belt Width 115mm
Pitch Diameter 8.4214 in
Outside Diameter 8.3114 in
Flange Diameter 8.941 in
Bore Accepts 3535 bushing (not included)
Face Width 5.25 in
Overall Length 5.25 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 38.931 lb
Country of Origin China

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 48-14P115-3535 runs 14 mm Powerhouse® curvilinear belts in 115mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 48-14P115-3535 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P48-14M-115-3535
Martin P4814M115-3535
Gates® P48-14MGT-115
TB Woods® P4814M115TL
Regal Rexnord (Browning®) B4814M115TL
Ametric 14M48TL115.3030
Powerdrive 48-14P115-3535
Continental (ContiTech) P48-14M-115-3535

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 48-14P115-3535 pulley?

14 mm Powerhouse® curvilinear timing belts in 115mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 48-14P115-3535 replace the Dodge P48-14M-115-3535?

Yes. Published interchange data crosses the 48-14P115-3535 directly to the Dodge P48-14M-115-3535, as well as Martin P4814M115-3535, Gates P48-14MGT-115, TB Woods P4814M115TL. Verify dimensions and bore before ordering.

Does the 48-14P115-3535 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 48-14P115-3535?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
