Description

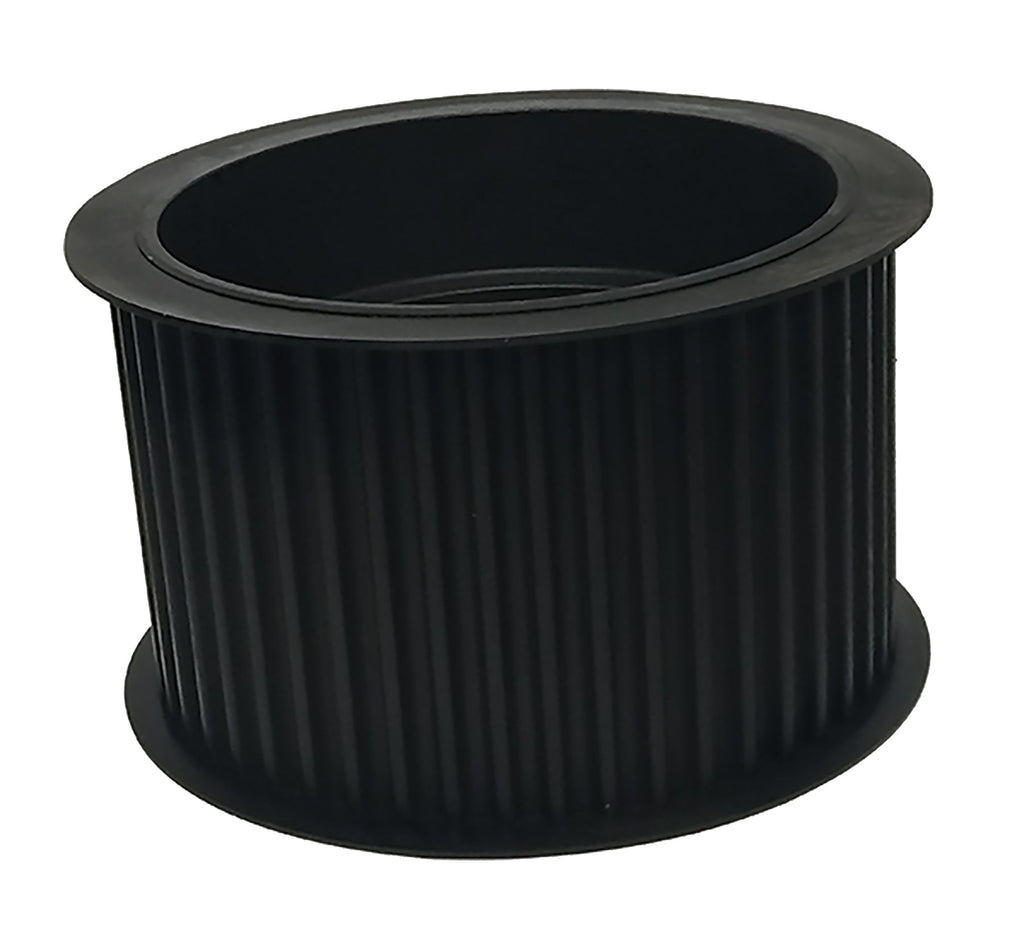

48-14P170-3535 Powerhouse® Timing Pulley, 48 Teeth, 14P Pitch
The 48-14P170-3535 is a 48-tooth 14 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 17mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 48-14P170-3535 |
| Teeth | 48 |
| Pitch | 14 mm Powerhouse® curvilinear |
| For Belt Width | 17mm |
| Pitch Diameter | 8.4214 in |
| Outside Diameter | 8.3114 in |
| Flange Diameter | 8.941 in |
| Bore | Accepts 3535 bushing (not included) |
| Face Width | 7.38 in |
| Overall Length | 7.38 in |
| Construction | Taper Lock Hub |
| Flange Material | Steel |
| Material | Ductile Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 47.911 lb |
| Country of Origin | China |
Applications
- Higher load synchronous drives in compact spaces
- Industrial automation and conveyor drives
- Packaging and material handling equipment
Belt Compatibility
The 48-14P170-3535 runs 14 mm Powerhouse® curvilinear belts in 17mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 48-14P170-3535 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | P48-14M-170-3535 |
| Martin | P4814M170-3535 |
| Gates® | P48-14MGT-170 |
| Regal Rexnord (Browning®) | B4814M170TL |
| Ametric | 14M48TL170.3535 |
| Powerdrive | 48-14P170-3535 |
| Continental (ContiTech) | P48-14M-170-3535 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 48-14P170-3535 pulley?
14 mm Powerhouse® curvilinear timing belts in 17mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 48-14P170-3535 replace the Dodge P48-14M-170-3535?
Yes. Published interchange data crosses the 48-14P170-3535 directly to the Dodge P48-14M-170-3535, as well as Martin P4814M170-3535, Gates P48-14MGT-170, Regal Rexnord B4814M170TL. Verify dimensions and bore before ordering.
