48-2P06MSFP8 Powerhouse® Timing Pulley, 48 Teeth, 2P Pitch


Price:
$ 6.34

Description

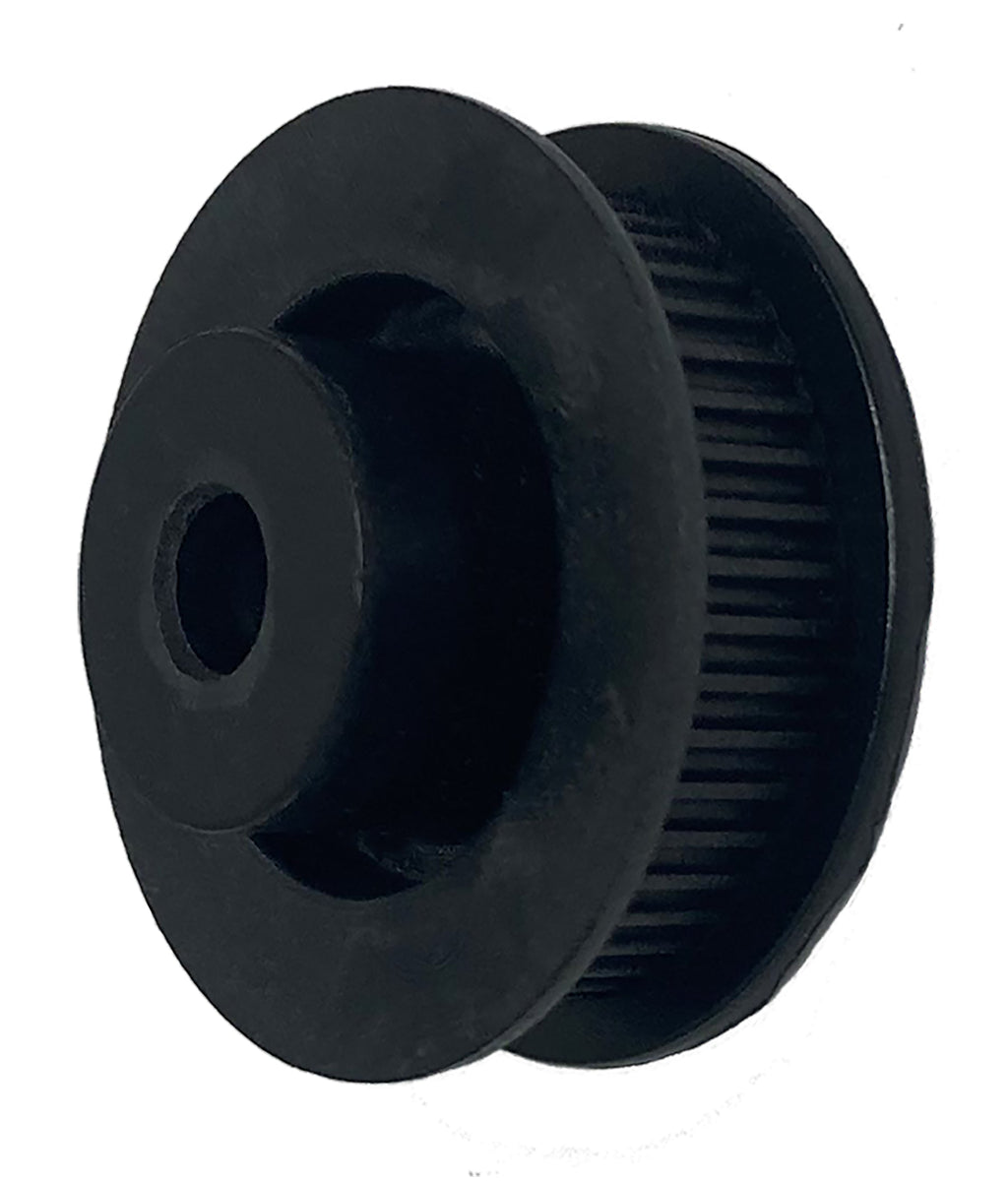

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

48-2P06MSFP8 Powerhouse® Timing Pulley, 48 Teeth, 2P Pitch

The 48-2P06MSFP8 is a 48-tooth 2 mm Powerhouse® curvilinear timing pulley with a 8 mm Bore, machined from polycarbonate, built for 6mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number 48-2P06MSFP8
Teeth 48
Pitch 2 mm Powerhouse® curvilinear
For Belt Width 6mm
Pitch Diameter 1.2031 in
Outside Diameter 1.1831 in
Flange Diameter 1.39 in
Bore 8 mm Bore
Face Width 0.433 in
Overall Length 0.688 in
Hub Diameter 0.688 in
Set Screws 1 x M4
Material Polycarbonate (no sintered or powdered metal)
Weight 0.03 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 48-2P06MSFP8 runs 2 mm Powerhouse® curvilinear belts in 6mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 48-2P06MSFP8 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Stock Drive Products (SDP/SI) A 6L51M048SF0608
Powerdrive 48-2P06MSFP8

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 48-2P06MSFP8 pulley?

2 mm Powerhouse® curvilinear timing belts in 6mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 48-2P06MSFP8 replace the Stock Drive Products A 6L51M048SF0608?

Yes. Published interchange data crosses the 48-2P06MSFP8 directly to the Stock Drive Products A 6L51M048SF0608, as well as Powerdrive 48-2P06MSFP8. Verify dimensions and bore before ordering.

Does the 48-2P06MSFP8 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 48-2P06MSFP8?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358
