48V3000M V-Belt Sheave, 4 Grooves, 8V Section, 3 in OD, M Bushing


Price:
$ 2,357.36

Description

48V3000M V-Belt Sheave, 4 Grooves, 8V Section, 3 in OD, M Bushing

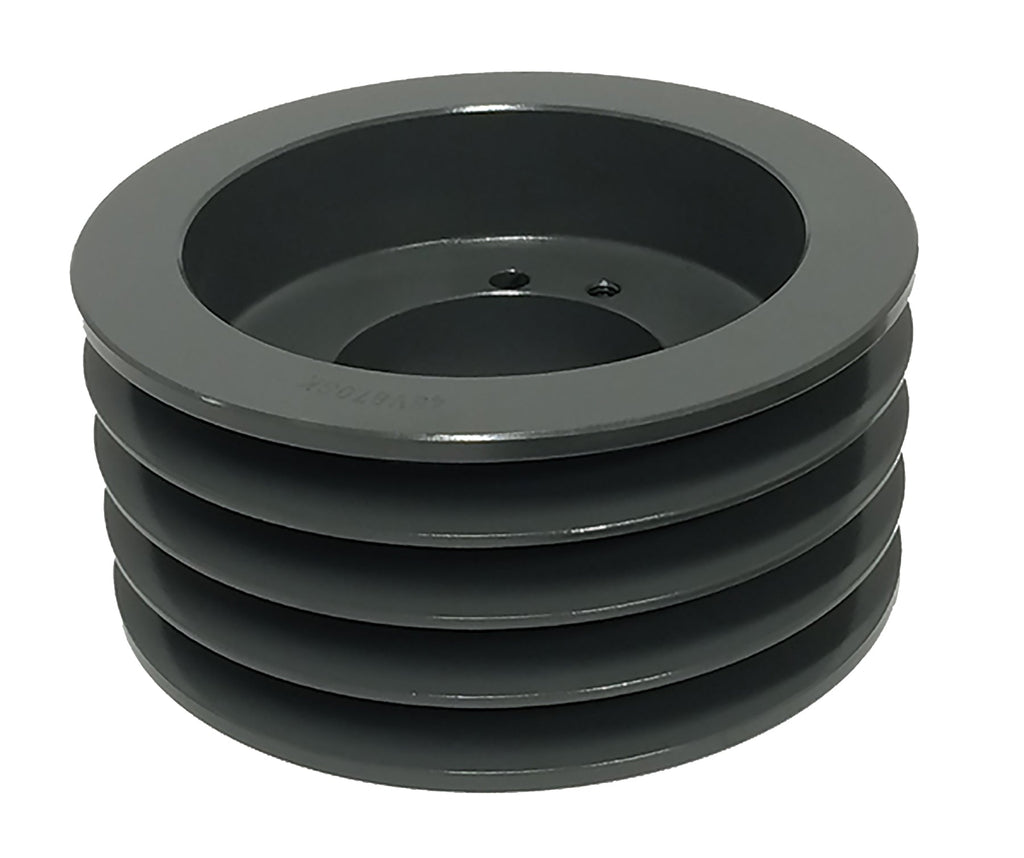

The 48V3000M is a 4-groove 8V section narrow wedge V-belt sheave with a 3 in outside diameter, fully machined from cast iron and statically balanced. It mounts with an industry-standard M QD® style bushing, sold separately, sized to your shaft. It runs 8V narrow wedge V-belts.

Specifications

Specification Value
Part Number 48V3000M
Belt Section 8V
Grooves 4
Outside Diameter 3 in
Pitch Diameter 29.8 in
Face Width 4.875 in
Bushing M series, QD® style (not included)
Material Cast Iron, fully machined, statically balanced
Weight 224 lb
Country of Origin China

Applications

  • Multi-belt narrow wedge drives on fans, blowers, and pumps
  • HVAC air handlers and cooling tower drives
  • Compressors and industrial process equipment
  • Replacing worn sheaves on existing drives without changing belts or bushings

Cross Reference

The 48V3000M interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® D4-8V300
Martin 4 8V 3000 M
Gates® QD4/8V30.00
TB Woods® 8V3004
Regal Rexnord (Browning®) 48V3000M
Carlisle 4-8V-3000-M
Masterdrive 4/8V3000M
Maurey 48V30.0-M
Jason Industrial 4/8V3000M
Optibelt QD 8V3000/4 M

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts run on the 48V3000M?

8V narrow wedge V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.

Does the 48V3000M replace the Dodge D4-8V300 sheave?

Yes. Published interchange data crosses the 48V3000M directly to the Dodge D4-8V300, as well as Martin 4 8V 3000 M, Gates QD4/8V30.00, TB Woods 8V3004. Verify groove count, diameter, and bore or bushing before ordering.

What bushing does the 48V3000M use?

A M series QD style bushing, sold separately. M is an industry-standard bushing size, so any manufacturer's standard M bushing fits. Order the bushing bore that matches your shaft diameter.

Does the 48V3000M ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 48V3000M?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
