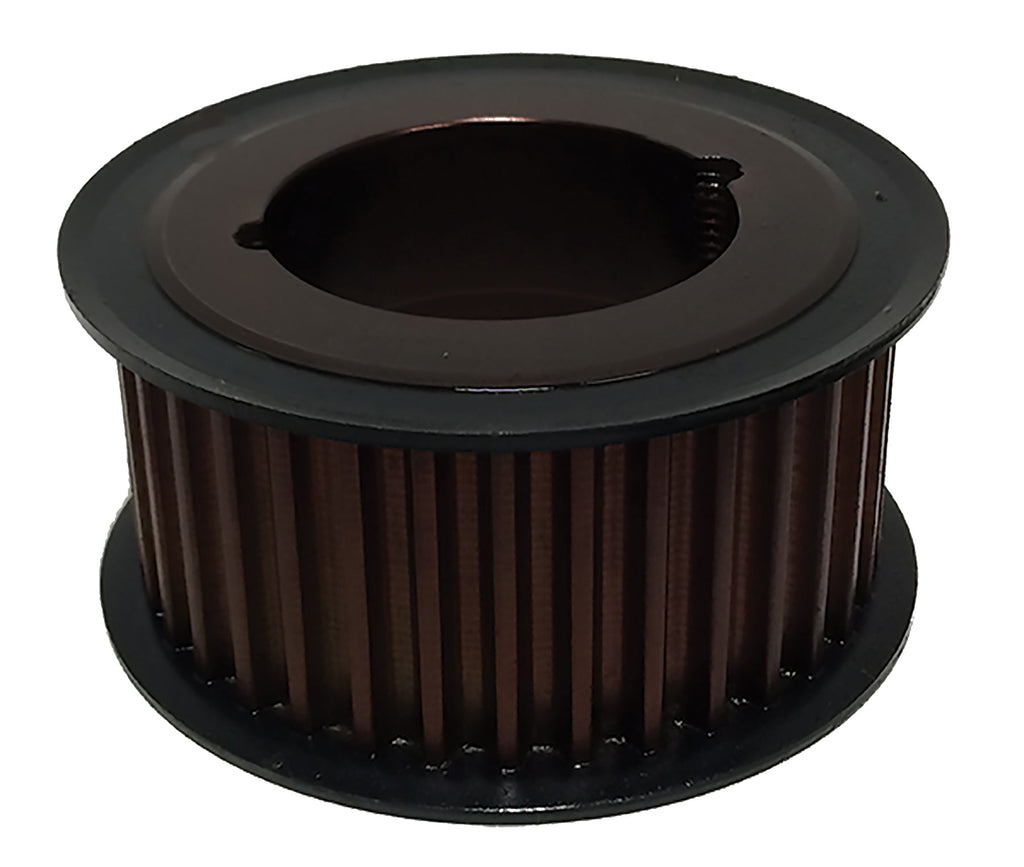

50-8MX36-2012 Powerhouse® MX Timing Pulley, 5 Teeth, 8MX Pitch


Price:
$ 210.86

Description

50-8MX36-2012 Powerhouse® MX Timing Pulley, 5 Teeth, 8MX Pitch

The 50-8MX36-2012 is a 5-tooth 8 mm MX high torque timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 36mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 50-8MX36-2012
Teeth 5
Pitch 8 mm MX high torque
For Belt Width 36mm
Pitch Diameter 5.0128 in
Outside Diameter 4.9498 in
Flange Diameter 5.32 in
Bore Accepts 2012 bushing (not included)
Face Width 1.859 in
Overall Length 1.859 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 5.022 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives

Belt Compatibility

The 50-8MX36-2012 runs 8 mm MX high torque belts in 36mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 50-8MX36-2012 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 8MX-50S-36-2012
Martin 8MX50S36-2012
Gates® 8MX-50S-36
TB Woods® 8MPC50S36
Regal Rexnord (Browning®) B8MCS-50-36
Mitsuboshi 50-8MX36-2012
Ametric TB 8M-50S-36
Grainger 809T16
Grainger 2UWK8
Powerdrive 50-8MX36-2012

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 50-8MX36-2012 pulley?

8 mm MX high torque timing belts in 36mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 50-8MX36-2012 replace the Dodge 8MX-50S-36-2012?

Yes. Published interchange data crosses the 50-8MX36-2012 directly to the Dodge 8MX-50S-36-2012, as well as Martin 8MX50S36-2012, Gates 8MX-50S-36, TB Woods 8MPC50S36. Verify dimensions and bore before ordering.

Does the 50-8MX36-2012 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 50-8MX36-2012?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. Poly Chain®, GT®, and Carbon™ are trademarks of Gates Corporation. Synchrochain is a trademark of Continental. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
