5050x3-1/16 Taper-Lock® Style Bushing, 3-1/16 in Bore, Steel


Price:
$ 391.02

Description

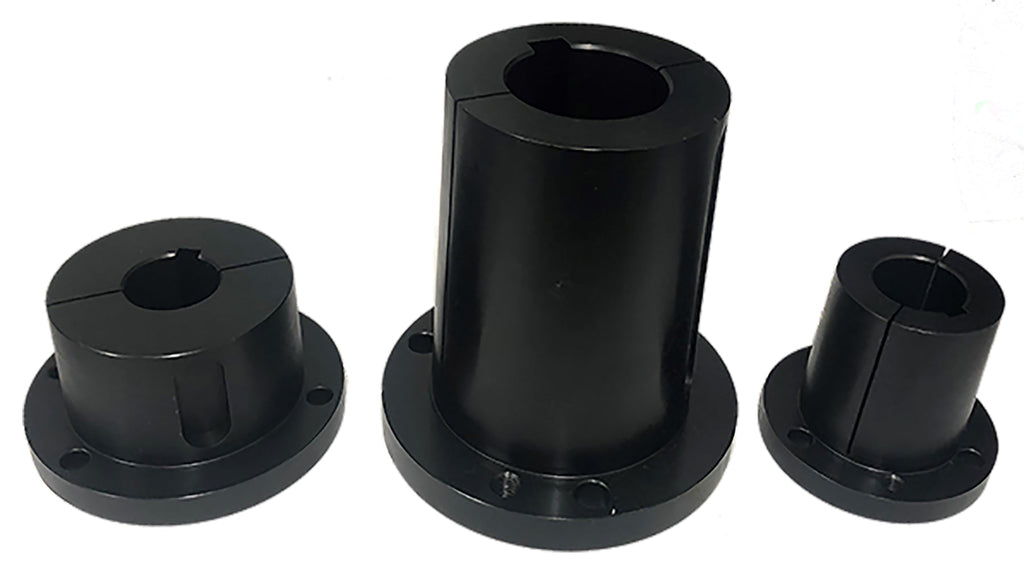

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

5050x3-1/16 Taper-Lock® Style Bushing, 3-1/16 in Bore, Steel

The 5050x3-1/16 is a 5050 series Taper-Lock style bushing with a 3-1/16 in bore, machined from solid steel with a black oxide finish. It mounts any 5050-bushed component, including sheaves, sprockets, and timing pulleys, to a 3-1/16 in shaft. Every bushing is machined from solid stock, never sintered or powdered metal, which matters in a part that transmits its load through a friction fit.

Specifications

Specification Value
Part Number 5050x3-1/16
Bushing System Taper-Lock® style
Series 5050
Bore 3-1/16 in
Torque Capacity 126000 in-lb
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 35.97 lb
Country of Origin China
Bolt Circle 6.72

Applications

  • Mounting 5050-bushed V-belt sheaves, sprockets, and timing pulleys to 3-1/16 in shafts
  • Drive component replacement where the bushing wears or the shaft size changes
  • Conveyor, fan, pump, and general industrial drive assemblies
  • Stocking standard bushing sizes for plant maintenance inventories

Cross Reference

The 5050x3-1/16 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 5050 X 3-1/16
Martin 5050 3 1/16
Jason Industrial 5050-3-1/16

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What does the 5050x3-1/16 bushing fit?

It fits any sheave, sprocket, pulley, or coupling machined for a 5050 series Taper-Lock style bushing, and mounts that component to a 3-1/16 in shaft. The 5050 size is standardized across manufacturers, so the component brand does not matter.

Does the 5050x3-1/16 replace the Dodge 5050 X 3-1/16 bushing?

Yes. The 5050 series dimensions are an industry standard, and published interchange data crosses the 5050x3-1/16 directly to the Dodge 5050 X 3-1/16, as well as Martin 5050 3 1/16, Jason Industrial 5050-3-1/16. Verify bore size before ordering.

How does a Taper-Lock style bushing install?

The bushing is split and tapered. Slide it onto the shaft, seat the component over it, and tighten the pull-up screws in the threaded holes. The screws draw the taper into the component, clamping the bushing onto the shaft. To remove, back the screws out and use them in the jacking holes to break the taper free.

Does the 5050x3-1/16 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 5050x3-1/16?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Taper-Lock® is a registered trademark of its respective owner. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
