51AT10-PS160A Timing Pulley Bar Stock, 51 Teeth, AT10 Pitch


Price:
$ 397.61

Description

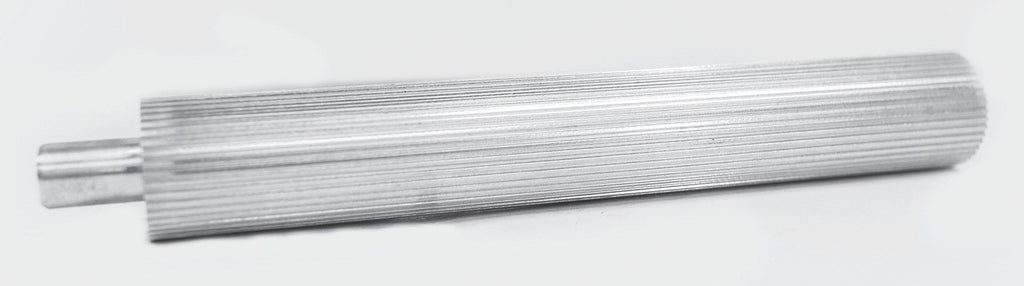

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

51AT10-PS160A Timing Pulley Bar Stock, 51 Teeth, AT10 Pitch

The 51AT10-PS160A is machine-ready timing pulley bar stock with 51 teeth in AT10 (10 mm metric) pitch, aluminum. Pulley stock lets a machine shop turn finished custom pulleys without cutting teeth: part off a blank, bore, and finish.

Specifications

Specification Value
Part Number 51AT10-PS160A
Teeth 51
Pitch AT10 (10 mm metric)
Maximum Usable Length 6.3 in
Shank Length 1 in
Material Aluminum (no sintered or powdered metal)
Weight 21 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Machining custom-width timing pulleys to order
  • Prototype and short-run drive development
  • Special bores, hubs, and flange configurations not available as catalog parts

Cross Reference

The 51AT10-PS160A interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Neuman AT10-51S-PS-160A
Powerdrive 51AT10-PS160A

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

How is pulley bar stock like the 51AT10-PS160A used?

Cut a blank to the face width you need, machine the bore, hub, and any flange seats, and you have a custom pulley with factory-quality teeth. It is the standard route for prototypes and non-catalog widths.

Does the 51AT10-PS160A replace the Neuman AT10-51S-PS-160A?

Yes. Published interchange data crosses the 51AT10-PS160A directly to the Neuman AT10-51S-PS-160A, as well as Powerdrive 51AT10-PS160A. Verify dimensions and bore before ordering.

Does the 51AT10-PS160A ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 51AT10-PS160A?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
