Description
52-5P25-1210 Powerhouse® Timing Pulley, 52 Teeth, 5P Pitch

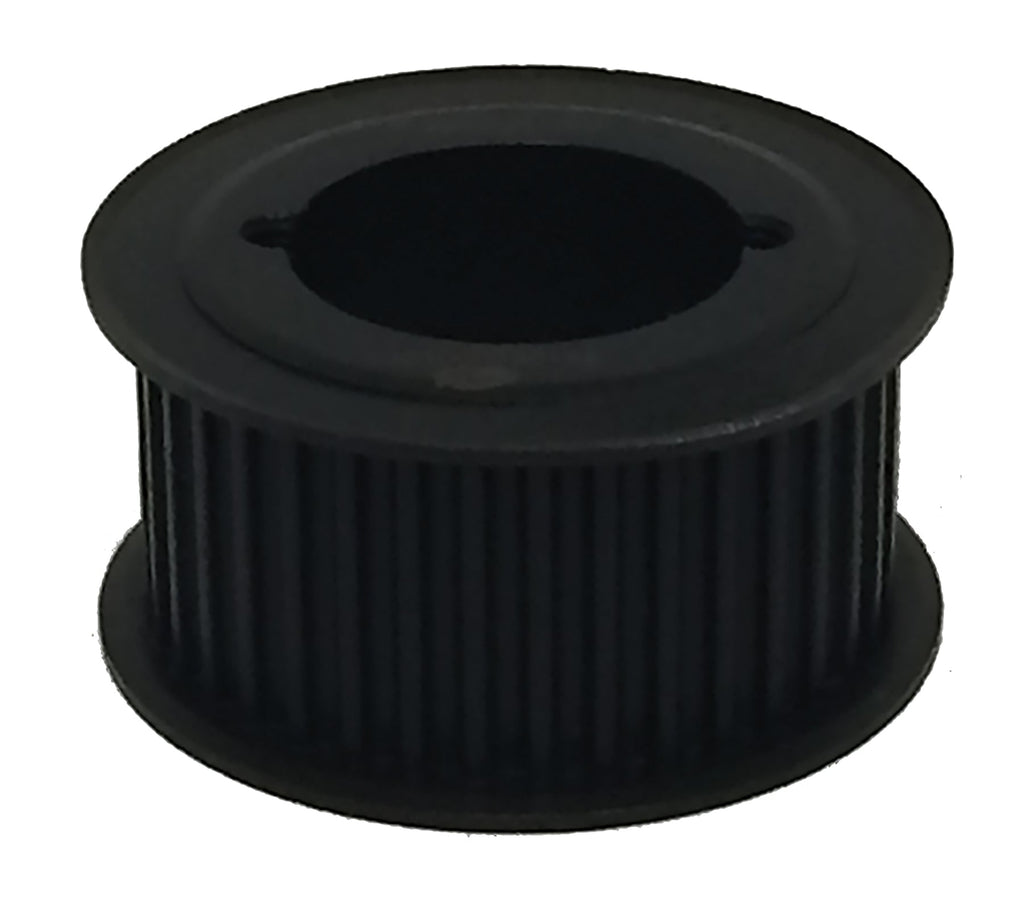

The 52-5P25-1210 is a 52-tooth 5 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 25mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 52-5P25-1210 |
| Teeth | 52 |
| Pitch | 5 mm Powerhouse® curvilinear |
| For Belt Width | 25mm |
| Pitch Diameter | 3.2583 in |
| Outside Diameter | 3.2133 in |
| Flange Diameter | 3.566 in |
| Bore | Accepts 1210 bushing (not included) |
| Face Width | 1.28 in |
| Overall Length | 1.28 in |
| Construction | Taper Lock Hub |
| Flange Material | Steel |
| Material | Ductile Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 1.585 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- Higher load synchronous drives in compact spaces
- Industrial automation and conveyor drives
- Packaging and material handling equipment
Belt Compatibility
The 52-5P25-1210 runs 5 mm Powerhouse® curvilinear belts in 25mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 52-5P25-1210 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | P52-5M-25-1210 |
| Gates® | P52-5MGT-25 |
| Grainger | 809TW6 |
| Powerdrive | 52-5P25-1210 |
| Continental (ContiTech) | P52-5M-25-1210 QTE |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 52-5P25-1210 pulley?
5 mm Powerhouse® curvilinear timing belts in 25mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 52-5P25-1210 replace the Dodge P52-5M-25-1210?
Yes. Published interchange data crosses the 52-5P25-1210 directly to the Dodge P52-5M-25-1210, as well as Gates P52-5MGT-25, Grainger 809TW6, Powerdrive 52-5P25-1210. Verify dimensions and bore before ordering.
Does the 52-5P25-1210 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
