53-14MX125-4535 Powerhouse® MX Timing Pulley, 53 Teeth, 14MX Pitch


Price:
$ 842.66

Description

53-14MX125-4535 Powerhouse® MX Timing Pulley, 53 Teeth, 14MX Pitch

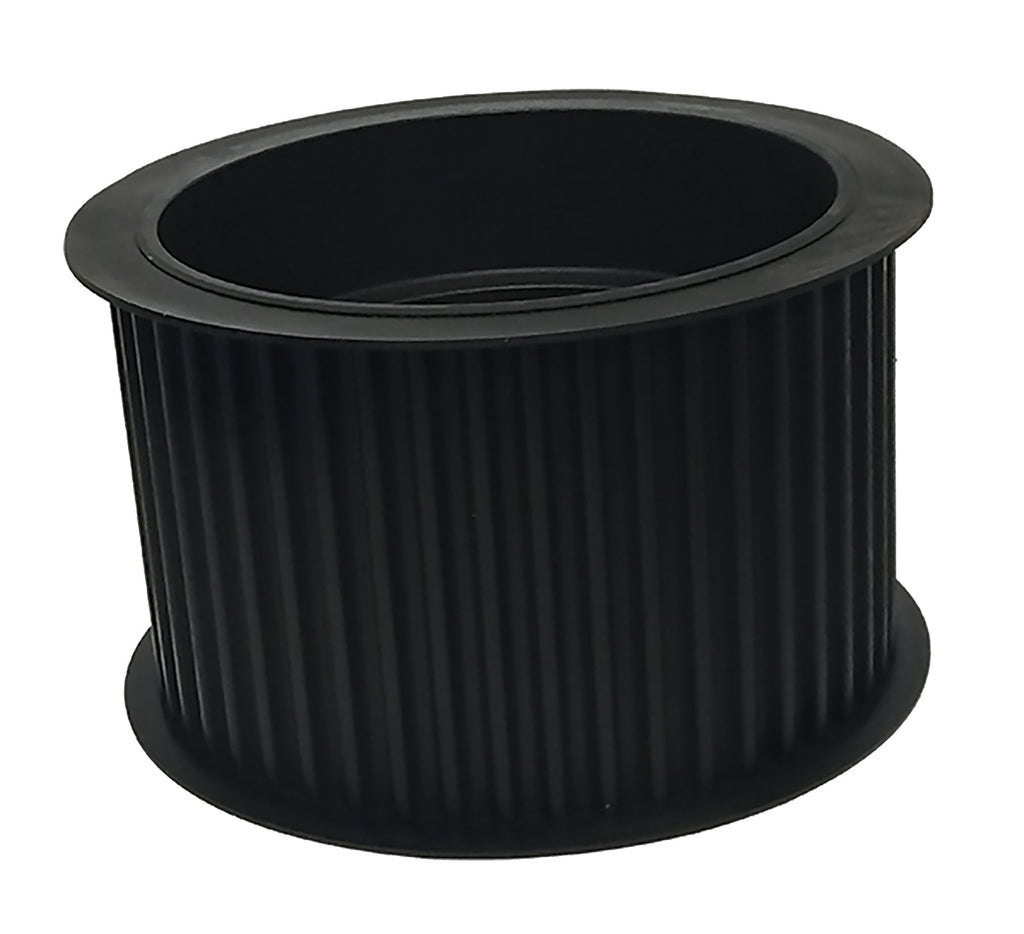

The 53-14MX125-4535 is a 53-tooth 14 mm MX high torque timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 125mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 53-14MX125-4535
Teeth 53
Pitch 14 mm MX high torque
For Belt Width 125mm
Pitch Diameter 9.2987 in
Outside Diameter 9.1887 in
Flange Diameter 9.687 in
Bore Accepts 4535 bushing (not included)
Face Width 5.609 in
Overall Length 5.609 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 46 lb
Country of Origin China

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives

Belt Compatibility

The 53-14MX125-4535 runs 14 mm MX high torque belts in 125mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 53-14MX125-4535 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 14MX-53S-125-4535
Martin 14MX53S125-4535
Gates® 14MX-53S-125
TB Woods® 14MPC53S125
Regal Rexnord (Browning®) B14MCS-53-125
Mitsuboshi 53-14MX125-4535
Powerdrive 53-14MX125-4535
Continental (ContiTech) 53G-14M-125-4535

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 53-14MX125-4535 pulley?

14 mm MX high torque timing belts in 125mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 53-14MX125-4535 replace the Dodge 14MX-53S-125-4535?

Yes. Published interchange data crosses the 53-14MX125-4535 directly to the Dodge 14MX-53S-125-4535, as well as Martin 14MX53S125-4535, Gates 14MX-53S-125, TB Woods 14MPC53S125. Verify dimensions and bore before ordering.

Does the 53-14MX125-4535 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 53-14MX125-4535?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. Poly Chain®, GT®, and Carbon™ are trademarks of Gates Corporation. Synchrochain is a trademark of Continental. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
