54T24P20-6B4 Gear, 54 Teeth, 24 DP, 2 Degree PA, Acetal


Price:
$ 10.36

Description

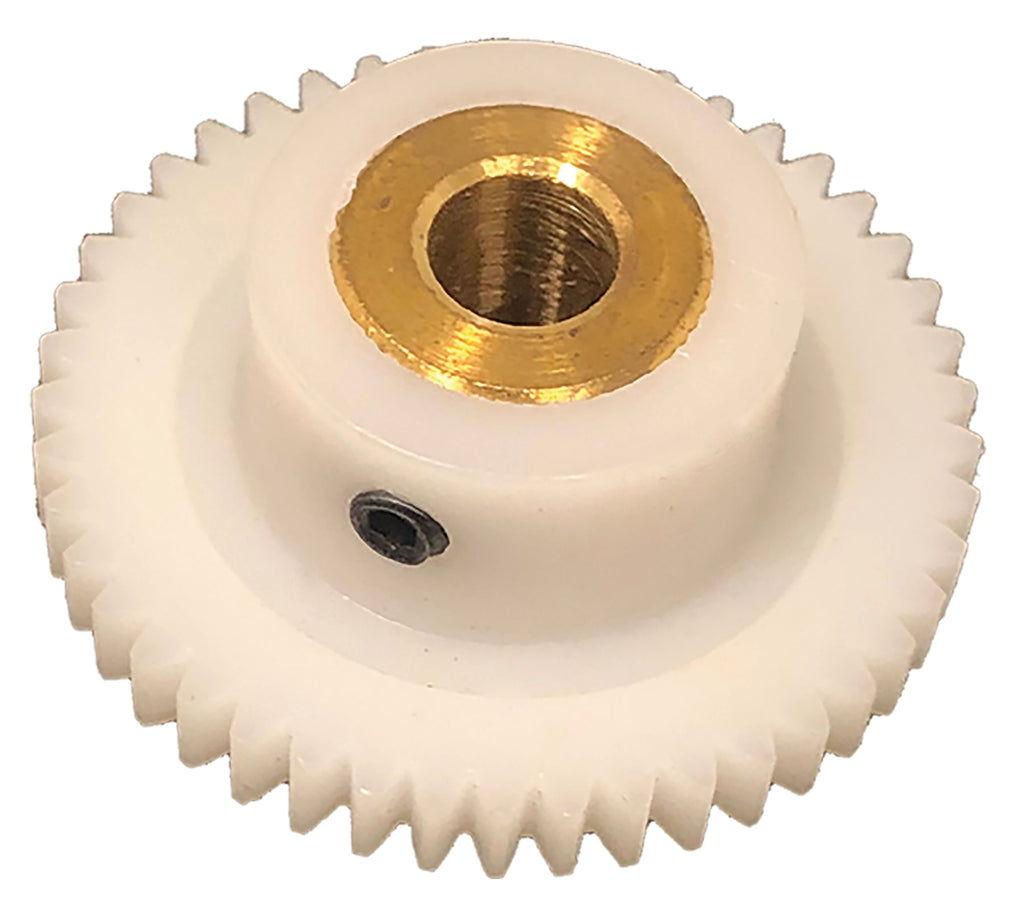

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

54T24P20-6B4 Gear, 54 Teeth, 24 DP, 2 Degree PA, Acetal

The 54T24P20-6B4 is a 54-tooth, 24 diametral pitch gear with a 2 degree pressure angle and a 5/16 in Bore, acetal. Acetal gears run quietly, need no lubrication, and resist moisture, a standard pick for light load drives.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number 54T24P20-6B4
Teeth 54
Diametral Pitch 24
Pressure Angle 2 degrees
Pitch Diameter 2.25 in
Outside Diameter 2.333 in
Bore 5/16 in Bore
Face Width 0.25 in
Hub Diameter 0.672 in
Overall Length 0.5625 in
Insert IHUB343456-3B4
Set Screws 1 x 8-32
Material Acetal
Weight 0.039 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation and meter drive trains
  • Packaging and labeling machinery
  • Light load drives where quiet, lube free operation matters

Mating Gears

Gears mesh when diametral pitch and pressure angle match. The 54T24P20-6B4 runs with any 24 DP, 2 degree pressure angle gear, regardless of tooth count or manufacturer.

Cross Reference

The 54T24P20-6B4 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Stock Drive Products (SDP/SI) A 1T 2-Y24054
Powerdrive 54T24P20-6B4

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What gears mesh with the 54T24P20-6B4?

Any gear with a 24 diametral pitch and 2 degree pressure angle, in any tooth count, from any manufacturer.

Does the 54T24P20-6B4 replace the Stock Drive Products A 1T 2-Y24054?

Yes. Published interchange data crosses the 54T24P20-6B4 directly to the Stock Drive Products A 1T 2-Y24054, as well as Powerdrive 54T24P20-6B4. Verify dimensions and bore before ordering.

Does the 54T24P20-6B4 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 54T24P20-6B4?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
