56-14P170-4040 Powerhouse® Timing Pulley, 56 Teeth, 14P Pitch


Price:
$ 629.79

Description

56-14P170-4040 Powerhouse® Timing Pulley, 56 Teeth, 14P Pitch

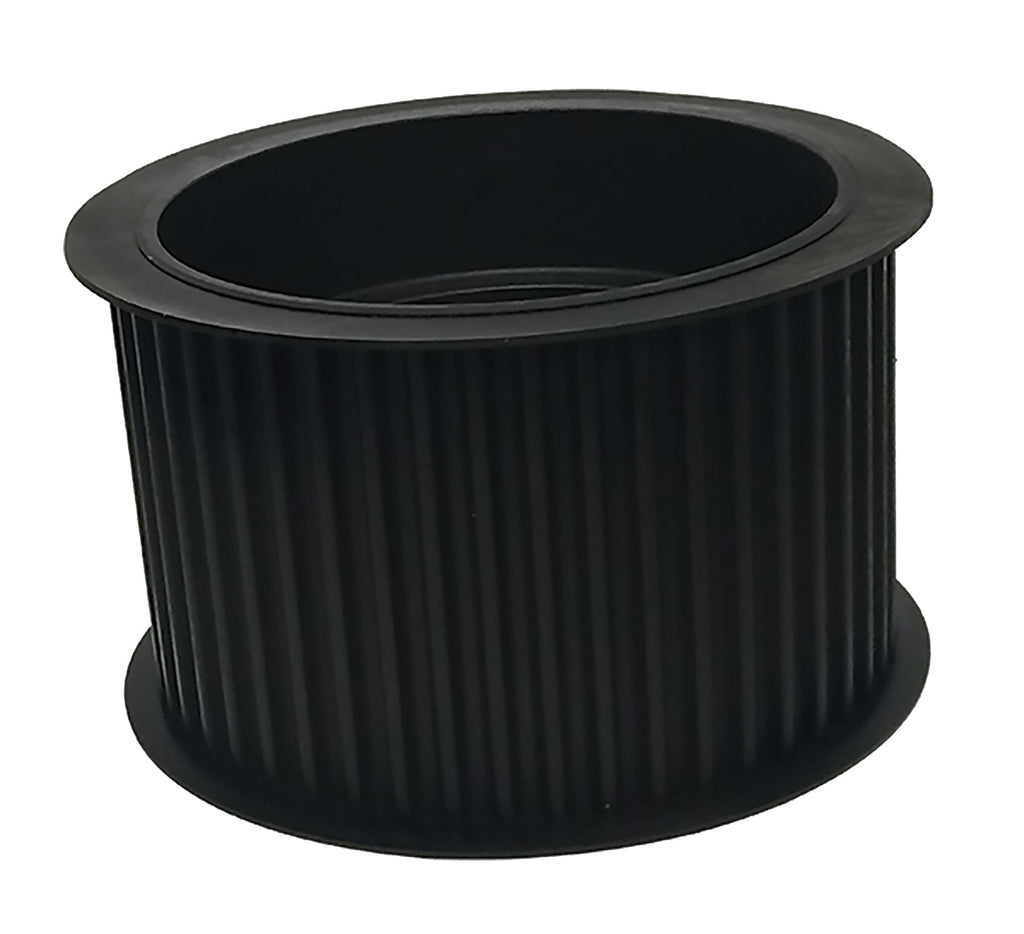

The 56-14P170-4040 is a 56-tooth 14 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 17mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 56-14P170-4040
Teeth 56
Pitch 14 mm Powerhouse® curvilinear
For Belt Width 17mm
Pitch Diameter 9.825 in
Outside Diameter 9.715 in
Flange Diameter 10.355 in
Bore Accepts 4040 bushing (not included)
Face Width 7.38 in
Overall Length 7.38 in
Construction Taper Lock Hub
Flange Material Steel
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 65 lb
Country of Origin China

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 56-14P170-4040 runs 14 mm Powerhouse® curvilinear belts in 17mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 56-14P170-4040 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P56-14M-170-4040
Martin P5614M170-4040
Gates® P56-14MGT-170
Regal Rexnord (Browning®) B5614M170TL
Ametric 14M56TL170.4040
Powerdrive 56-14P170-4040
Continental (ContiTech) P56-14M-170-4040

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 56-14P170-4040 pulley?

14 mm Powerhouse® curvilinear timing belts in 17mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 56-14P170-4040 replace the Dodge P56-14M-170-4040?

Yes. Published interchange data crosses the 56-14P170-4040 directly to the Dodge P56-14M-170-4040, as well as Martin P5614M170-4040, Gates P56-14MGT-170, Regal Rexnord B5614M170TL. Verify dimensions and bore before ordering.

Does the 56-14P170-4040 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 56-14P170-4040?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
