56-14P85-3535 Powerhouse® Timing Pulley, 56 Teeth, 14P Pitch


Price:
$ 443.60

Description

56-14P85-3535 Powerhouse® Timing Pulley, 56 Teeth, 14P Pitch

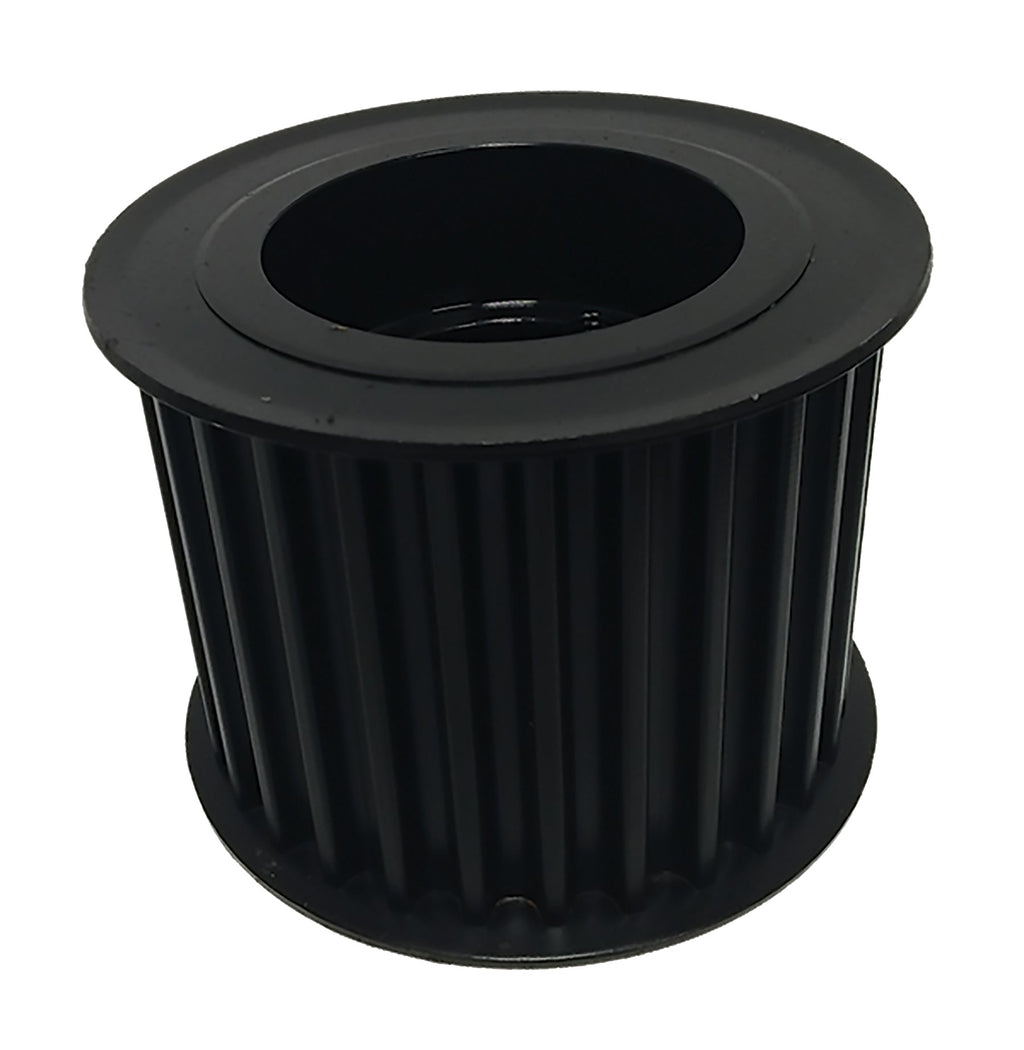

The 56-14P85-3535 is a 56-tooth 14 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron or ductile iron with a black oxide finish, built for 85mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 56-14P85-3535
Teeth 56
Pitch 14 mm Powerhouse® curvilinear
For Belt Width 85mm
Pitch Diameter 9.825 in
Outside Diameter 9.715 in
Flange Diameter 10.355 in
Bore Accepts 3535 bushing (not included)
Face Width 4 in
Overall Length 4 in
Construction Taper Lock Hub
Flange Material Steel
Material Cast Iron or Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 51.4 lb
Country of Origin China

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 56-14P85-3535 runs 14 mm Powerhouse® curvilinear belts in 85mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 56-14P85-3535 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P56-14M-85-3535
Martin P5614M85-3535
Gates® P56-14MGT-85
TB Woods® P5614M85TL
Regal Rexnord (Browning®) B5614M85TL
Ametric 14M56TL85.3535
Grainger 809TX1
Powerdrive 56-14P85-3535
Continental (ContiTech) P56-14M-85-3535

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 56-14P85-3535 pulley?

14 mm Powerhouse® curvilinear timing belts in 85mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 56-14P85-3535 replace the Dodge P56-14M-85-3535?

Yes. Published interchange data crosses the 56-14P85-3535 directly to the Dodge P56-14M-85-3535, as well as Martin P5614M85-3535, Gates P56-14MGT-85, TB Woods P5614M85TL. Verify dimensions and bore before ordering.

Does the 56-14P85-3535 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 56-14P85-3535?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
