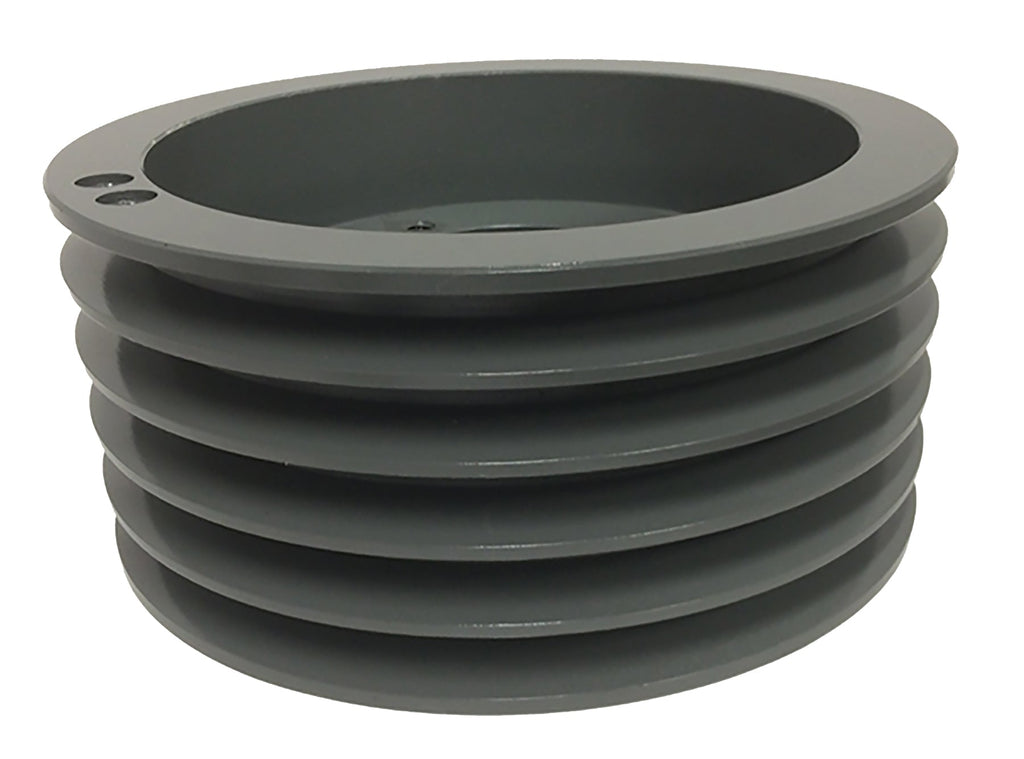

5B80SF V-Belt Sheave, 5 Grooves, AB Section, 8.35 in OD, SF Bushing


Price:
$ 147.75

Description

5B80SF V-Belt Sheave, 5 Grooves, AB Section, 8.35 in OD, SF Bushing

The 5B80SF is a 5-groove AB section classical section V-belt sheave with a 8.35 in outside diameter, fully machined from cast iron and statically balanced. It mounts with an industry-standard SF QD® style bushing, sold separately, sized to your shaft.

Specifications

Specification Value
Part Number 5B80SF
Belt Section AB
Grooves 5
Outside Diameter 8.35 in
Pitch Diameter (A / B belts) 7.6 in / 8 in
Face Width 4 in
Bushing SF series, QD® style (not included)
Material Cast Iron, fully machined, statically balanced
Weight 21 lb
Country of Origin China

Applications

  • Classical section V-belt drives on fans, pumps, and compressors
  • HVAC and refrigeration equipment
  • General industrial machinery with A, B, or C section belts
  • Replacing worn sheaves on existing drives

Cross Reference

The 5B80SF interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® D5B80
Martin 5 B 80 SF
Gates® QD5A7.8/B8.0
TB Woods® 805B
Regal Rexnord (Browning®) 5B80SF
Carlisle 5-B-80-SF
Masterdrive 5B80SF
Maurey 5B8.0
Jason Industrial 5B80SF
Optibelt 5/B800SF

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

Does the 5B80SF replace the Dodge D5B80 sheave?

Yes. Published interchange data crosses the 5B80SF directly to the Dodge D5B80, as well as Martin 5 B 80 SF, Gates QD5A7.8/B8.0, TB Woods 805B. Verify groove count, diameter, and bore or bushing before ordering.

What bushing does the 5B80SF use?

A SF series QD style bushing, sold separately. SF is an industry-standard bushing size, so any manufacturer's standard SF bushing fits. Order the bushing bore that matches your shaft diameter.

Why does the 5B80SF list two pitch diameters?

Combination sheaves run more than one belt section, and each section rides at a different depth in the groove. The 5B80SF has a 7.6 in pitch diameter with A or 4L belts and 8 in with B or 5L belts.

Does the 5B80SF ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
