Description

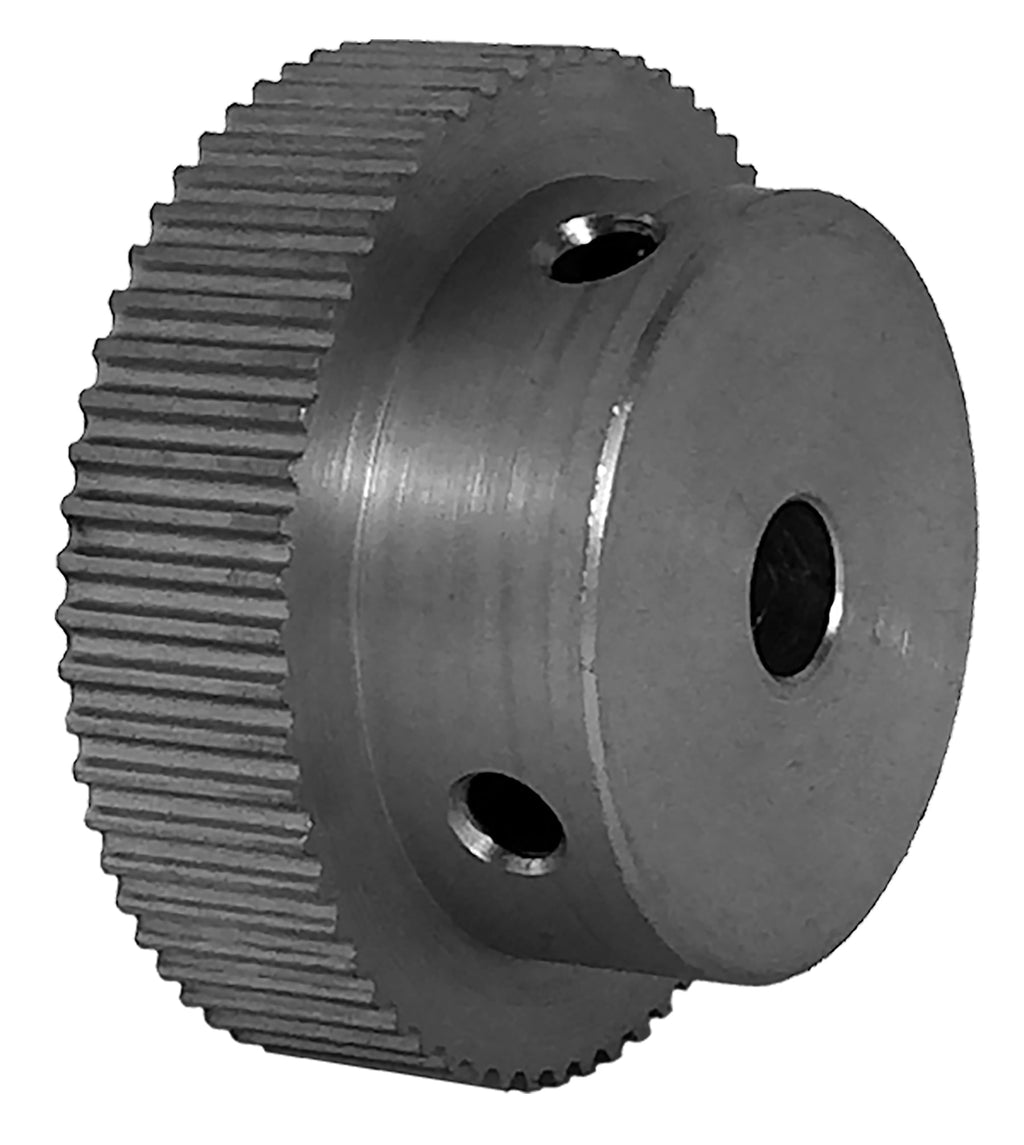

62-2P06M6A6 Timing Pulley, 62 Teeth, 2P Pitch, 6 mm Bore
The 62-2P06M6A6 is a 62-tooth 2 mm Powerhouse® curvilinear timing pulley with a 6 mm finished bore, machined from aluminum with a clear anodized finish, built for 6mm wide belts. Machined from solid stock, never sintered or powdered metal.
$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 62-2P06M6A6 |
| Teeth | 62 |
| Pitch | 2 mm Powerhouse® curvilinear |
| For Belt Width | 6mm |
| Pitch Diameter | 1.554 in |
| Outside Diameter | 1.534 in |
| Bore | 6 mm finished bore |
| Face Width | 0.375 in |
| Overall Length | 0.75 in |
| Hub Diameter | 1.148 in |
| Set Screws | 2 x M3 |
| Material | Aluminum (no sintered or powdered metal) |
| Finish | Clear Anodized |
| Weight | 0.121 lb |
| Country of Origin | India |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The 62-2P06M6A6 runs 2 mm Powerhouse® curvilinear belts in 6mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 62-2P06M6A6 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Stock Drive Products (SDP/SI) | A 6A51M062NF0606 |
| Powerdrive | 62-2P06M6A6 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 62-2P06M6A6 pulley?
2 mm Powerhouse® curvilinear timing belts in 6mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 62-2P06M6A6 replace the Stock Drive Products A 6A51M062NF0606?
Yes. Published interchange data crosses the 62-2P06M6A6 directly to the Stock Drive Products A 6A51M062NF0606, as well as Powerdrive 62-2P06M6A6. Verify dimensions and bore before ordering.
Does the 62-2P06M6A6 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
Need a quote on 62-2P06M6A6?
Houston warehouse, same-day shipping on stock items.
