63-14MX37-3525 Powerhouse® MX Timing Pulley, 63 Teeth, 14MX Pitch


Price:
$ 620.16

Description

63-14MX37-3525 Powerhouse® MX Timing Pulley, 63 Teeth, 14MX Pitch

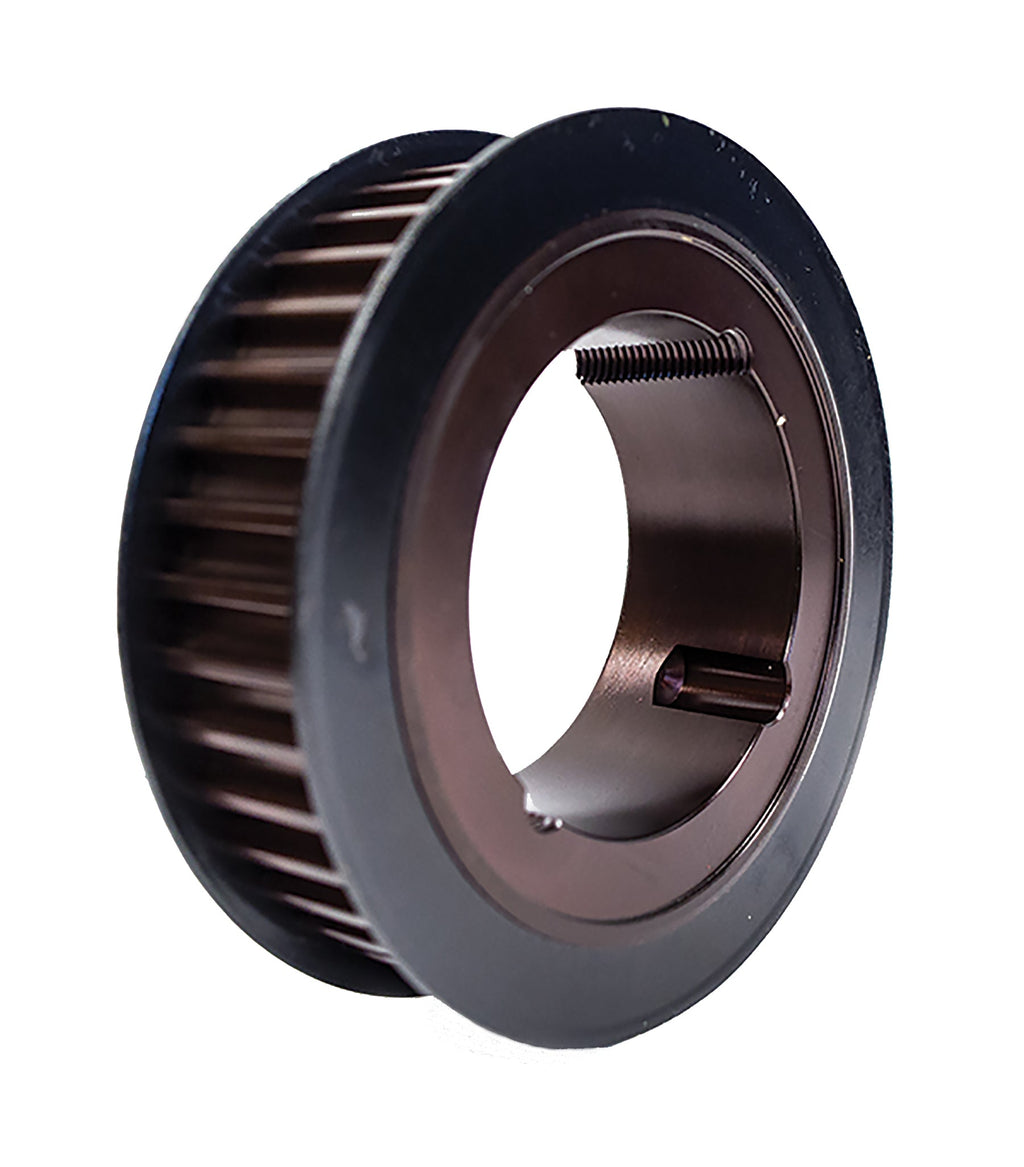

The 63-14MX37-3525 is a 63-tooth 14 mm MX high torque timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 37mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type B1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 63-14MX37-3525
Teeth 63
Pitch 14 mm MX high torque
For Belt Width 37mm
Pitch Diameter 11.0531 in
Outside Diameter 10.9431 in
Flange Diameter 11.75 in
Bore Accepts 3525 bushing (not included)
Face Width 2.063 in
Overall Length 2.5 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 46.7 lb
Country of Origin China

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives

Belt Compatibility

The 63-14MX37-3525 runs 14 mm MX high torque belts in 37mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 63-14MX37-3525 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 14MX-63S-37-3525
Martin 14MX63S37-3525
Gates® 14MX-63S-37
TB Woods® 14MPC63S37
Regal Rexnord (Browning®) B14MCS-63-37
Mitsuboshi 63-14MX37-3525
Grainger 809T40
Powerdrive 63-14MX37-3525
Continental (ContiTech) 63G-14M-37-3525

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 63-14MX37-3525 pulley?

14 mm MX high torque timing belts in 37mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 63-14MX37-3525 replace the Dodge 14MX-63S-37-3525?

Yes. Published interchange data crosses the 63-14MX37-3525 directly to the Dodge 14MX-63S-37-3525, as well as Martin 14MX63S37-3525, Gates 14MX-63S-37, TB Woods 14MPC63S37. Verify dimensions and bore before ordering.

Does the 63-14MX37-3525 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 63-14MX37-3525?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. Poly Chain®, GT®, and Carbon™ are trademarks of Gates Corporation. Synchrochain is a trademark of Continental. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
