64-5P25-1610 Powerhouse® Timing Pulley, 64 Teeth, 5P Pitch


Price:
$ 103.49

Description

64-5P25-1610 Powerhouse® Timing Pulley, 64 Teeth, 5P Pitch

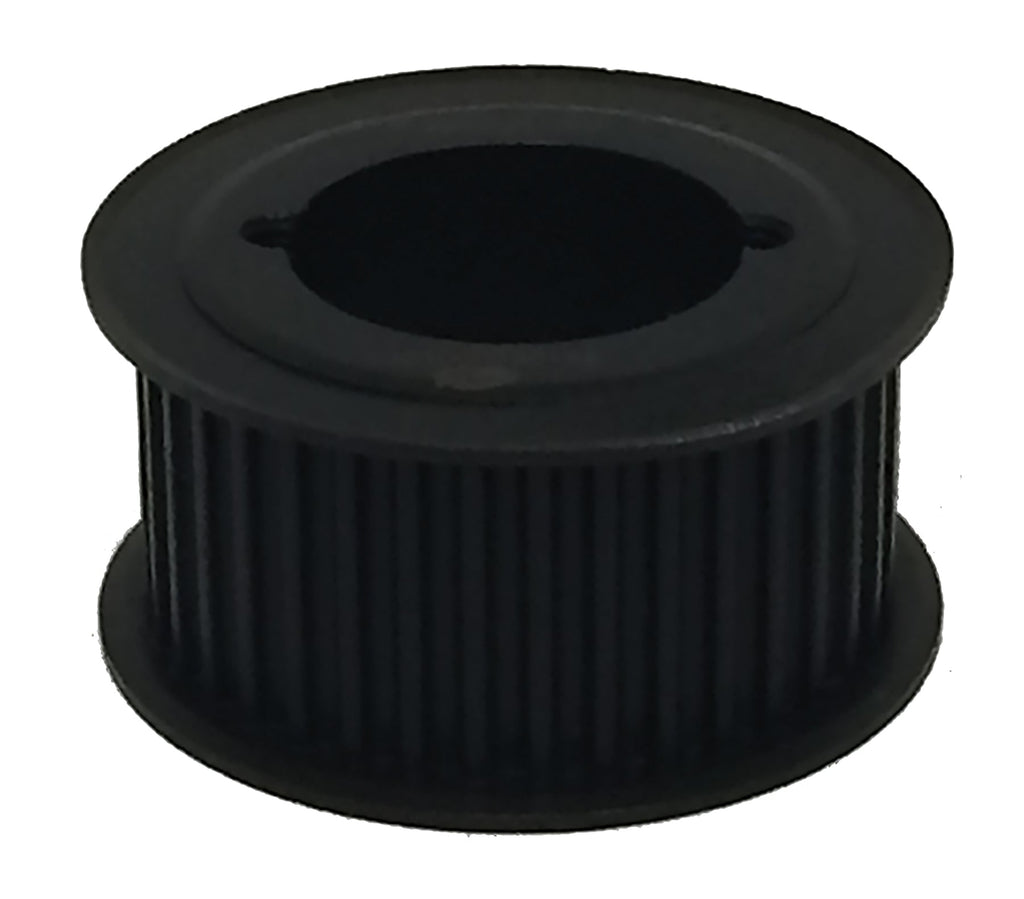

The 64-5P25-1610 is a 64-tooth 5 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 25mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 64-5P25-1610
Teeth 64
Pitch 5 mm Powerhouse® curvilinear
For Belt Width 25mm
Pitch Diameter 4.0102 in
Outside Diameter 3.9652 in
Flange Diameter 4.17 in
Bore Accepts 1610 bushing (not included)
Face Width 1.28 in
Overall Length 1.28 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 2.377 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 64-5P25-1610 runs 5 mm Powerhouse® curvilinear belts in 25mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 64-5P25-1610 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P64-5M-25-1610
Gates® P64-5MGT-25
Grainger 809TY9
Powerdrive 64-5P25-1610

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 64-5P25-1610 pulley?

5 mm Powerhouse® curvilinear timing belts in 25mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 64-5P25-1610 replace the Dodge P64-5M-25-1610?

Yes. Published interchange data crosses the 64-5P25-1610 directly to the Dodge P64-5M-25-1610, as well as Gates P64-5MGT-25, Grainger 809TY9, Powerdrive 64-5P25-1610. Verify dimensions and bore before ordering.

Does the 64-5P25-1610 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 64-5P25-1610?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
