65V1090E V-Belt Sheave, 6 Grooves, 5V Section, 10.8 in OD, E Bushing


Price:
$ 404.83

Description

65V1090E V-Belt Sheave, 6 Grooves, 5V Section, 10.8 in OD, E Bushing

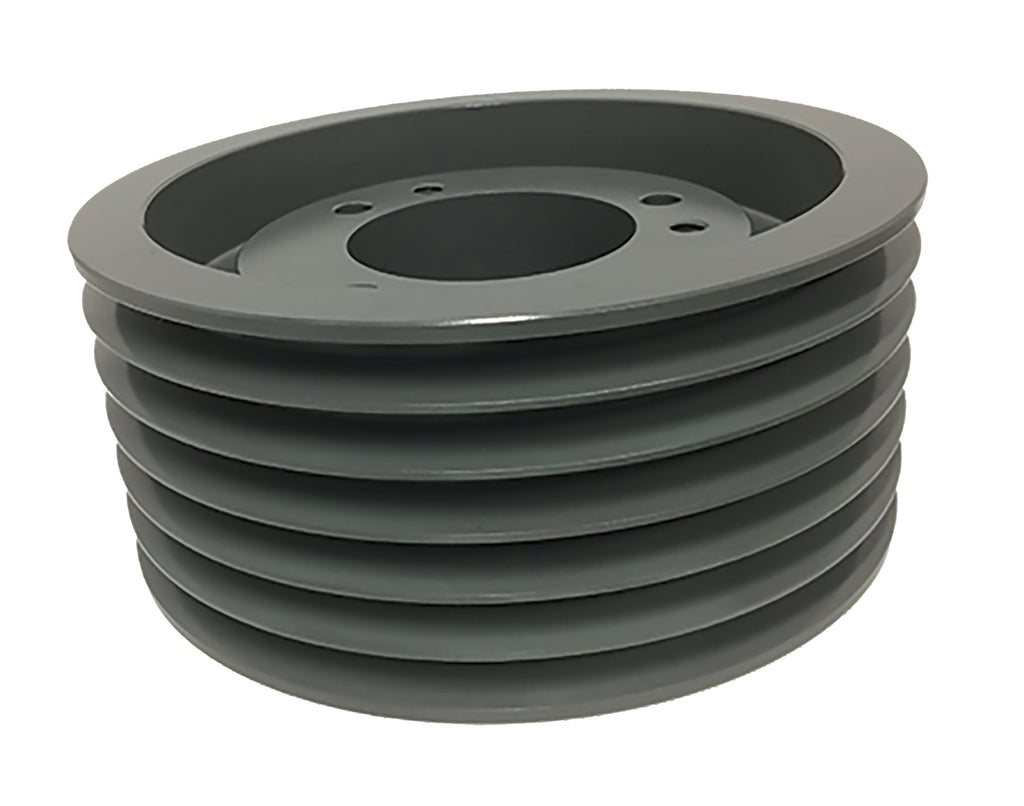

The 65V1090E is a 6-groove 5V section narrow wedge V-belt sheave with a 10.8 in outside diameter, fully machined from cast iron and statically balanced. It mounts with an industry-standard E QD® style bushing, sold separately, sized to your shaft. It runs 5V and 5VX narrow wedge V-belts.

Specifications

Specification Value
Part Number 65V1090E
Belt Section 5V
Grooves 6
Outside Diameter 10.8 in
Pitch Diameter 10.8 in
Face Width 4.438 in
Bushing E series, QD® style (not included)
Material Cast Iron, fully machined, statically balanced
Weight 38.1 lb
Country of Origin China

Applications

  • Multi-belt narrow wedge drives on fans, blowers, and pumps
  • HVAC air handlers and cooling tower drives
  • Compressors and industrial process equipment
  • Replacing worn sheaves on existing drives without changing belts or bushings

Cross Reference

The 65V1090E interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® D6-5V109
Martin 6 5V 1090 E
Gates® QD6/5V10.90
TB Woods® 5V1096
Regal Rexnord (Browning®) 65V1090E
Carlisle 6-5V-1090-E
Masterdrive 6/5V1090E
Maurey 65V10.9-E
Jason Industrial 6/5V1090E
Optibelt QD 5V1090/6 E

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts run on the 65V1090E?

5V and 5VX narrow wedge V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.

Does the 65V1090E replace the Dodge D6-5V109 sheave?

Yes. Published interchange data crosses the 65V1090E directly to the Dodge D6-5V109, as well as Martin 6 5V 1090 E, Gates QD6/5V10.90, TB Woods 5V1096. Verify groove count, diameter, and bore or bushing before ordering.

What bushing does the 65V1090E use?

A E series QD style bushing, sold separately. E is an industry-standard bushing size, so any manufacturer's standard E bushing fits. Order the bushing bore that matches your shaft diameter.

Does the 65V1090E ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 65V1090E?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
