Description

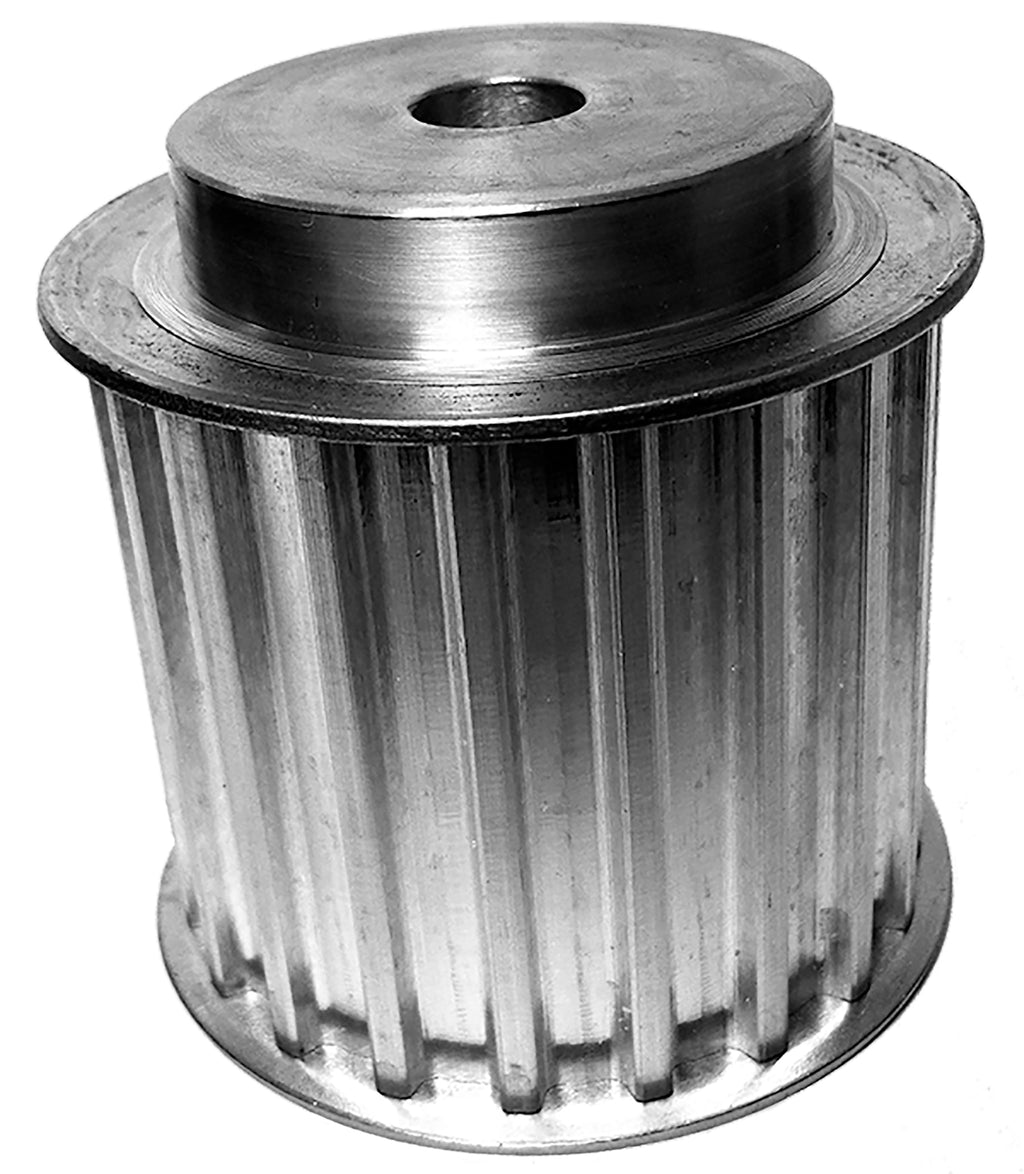

66AT10/36-2 Timing Pulley, 36 Teeth, AT10 Pitch
The 66AT10/36-2 is a 36-tooth AT10 (10 mm metric) timing pulley with a 16 mm minimum plain bore, machined from aluminum, built for 5mm wide belts. Machined from solid stock, never sintered or powdered metal.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 66AT10/36-2 |
| Teeth | 36 |
| Pitch | AT10 (10 mm metric) |
| For Belt Width | 5mm |
| Pitch Diameter | 4.5115 in |
| Outside Diameter | 4.4367 in |
| Bore | 16 mm minimum plain bore |
| Construction | Standard Hub |
| Flange Material | Steel |
| Material | Aluminum (no sintered or powdered metal) |
| Weight | 3.3 lb |
| Country of Origin | China |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The 66AT10/36-2 runs AT10 (10 mm metric) belts in 5mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 66AT10/36-2 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Mitsuboshi | 66AT10/36-2 |
| Jason Industrial | 66AT10/36-2 |
| Optibelt | 66AT10/36-2 |
| Ametric | 66AT10/36-2 |
| Powerdrive | 66AT10/36-2 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 66AT10/36-2 pulley?
AT10 (10 mm metric) timing belts in 5mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 66AT10/36-2 replace the Mitsuboshi 66AT10/36-2?
Yes. Published interchange data crosses the 66AT10/36-2 directly to the Mitsuboshi 66AT10/36-2, as well as Jason Industrial 66AT10/36-2, Optibelt 66AT10/36-2, Ametric 66AT10/36-2. Verify dimensions and bore before ordering.
