68-5P15-1610 Powerhouse® Timing Pulley, 68 Teeth, 5P Pitch


Price:
$ 101.61

Description

68-5P15-1610 Powerhouse® Timing Pulley, 68 Teeth, 5P Pitch

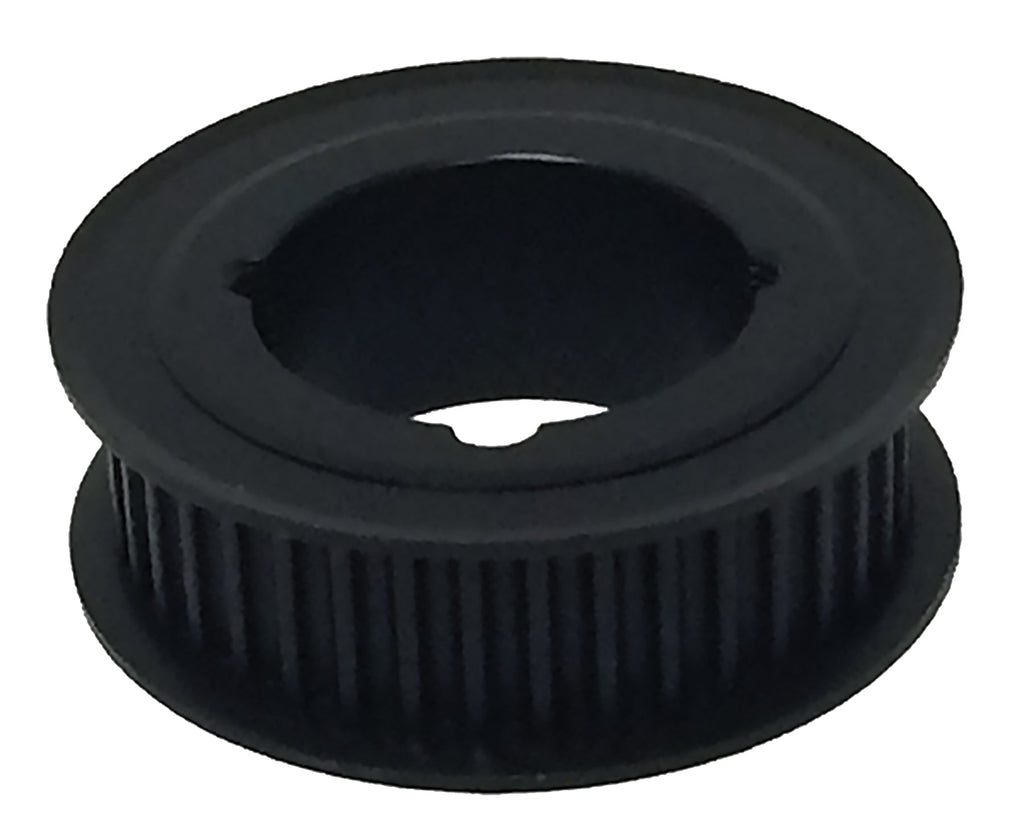

The 68-5P15-1610 is a 68-tooth 5 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 15mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

Specifications

Type B1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 68-5P15-1610
Teeth 68
Pitch 5 mm Powerhouse® curvilinear
For Belt Width 15mm
Pitch Diameter 4.2608 in
Outside Diameter 4.2158 in
Flange Diameter 4.52 in
Bore Accepts 1610 bushing (not included)
Face Width 0.88 in
Overall Length 1 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 2.414 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 68-5P15-1610 runs 5 mm Powerhouse® curvilinear belts in 15mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 68-5P15-1610 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P68-5M-15-1610
Gates® P68-5MGT-15
Ametric 5M68TL15.1610
Grainger 809TZ8
Powerdrive 68-5P15-1610

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 68-5P15-1610 pulley?

5 mm Powerhouse® curvilinear timing belts in 15mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 68-5P15-1610 replace the Dodge P68-5M-15-1610?

Yes. Published interchange data crosses the 68-5P15-1610 directly to the Dodge P68-5M-15-1610, as well as Gates P68-5MGT-15, Ametric 5M68TL15.1610, Grainger 809TZ8. Verify dimensions and bore before ordering.

Does the 68-5P15-1610 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 68-5P15-1610?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
