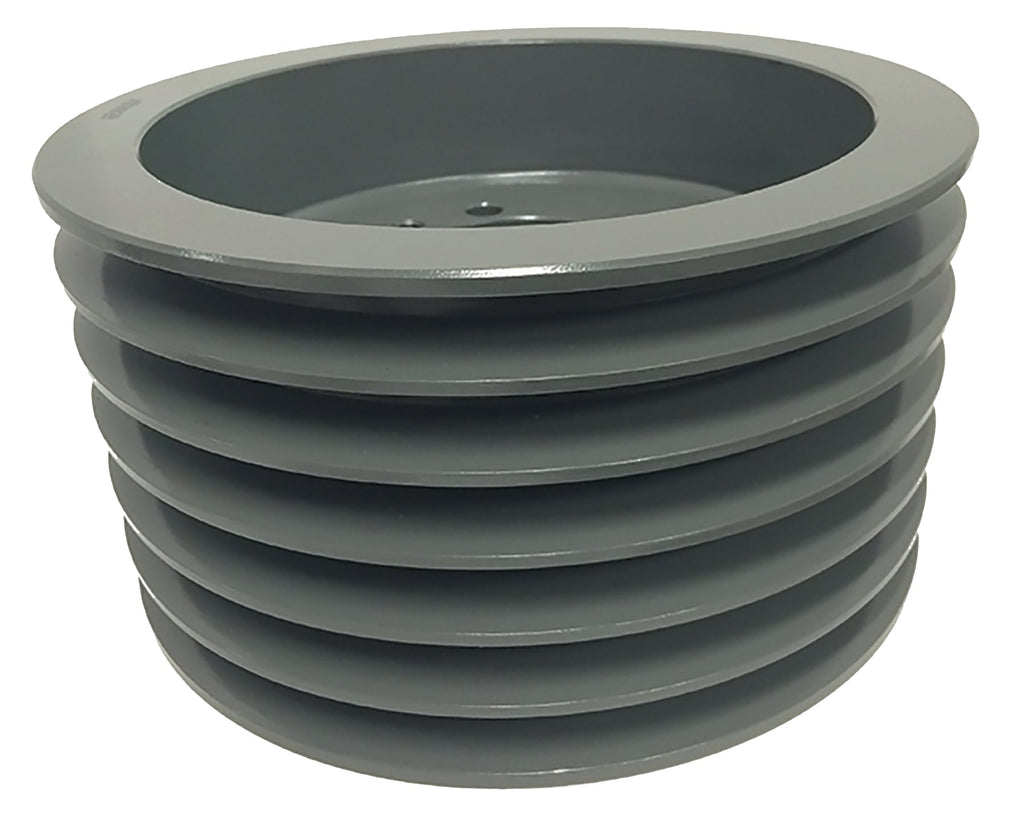

6B136SF V-Belt Sheave, 6 Grooves, AB Section, 13.95 in OD, SF Bushing


Price:
$ 286.45

Description

6B136SF V-Belt Sheave, 6 Grooves, AB Section, 13.95 in OD, SF Bushing

The 6B136SF is a 6-groove AB section classical section V-belt sheave with a 13.95 in outside diameter, fully machined from cast iron and statically balanced. It mounts with an industry-standard SF QD® style bushing, sold separately, sized to your shaft.

Specifications

Specification Value
Part Number 6B136SF
Belt Section AB
Grooves 6
Outside Diameter 13.95 in
Pitch Diameter (A / B belts) 13.2 in / 13.6 in
Face Width 4.75 in
Bushing SF series, QD® style (not included)
Material Cast Iron, fully machined, statically balanced
Weight 44 lb
Country of Origin China

Applications

  • Classical section V-belt drives on fans, pumps, and compressors
  • HVAC and refrigeration equipment
  • General industrial machinery with A, B, or C section belts
  • Replacing worn sheaves on existing drives

Cross Reference

The 6B136SF interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® D6B136
Martin 6 B 136 SF
Gates® QD6A13.4/B13.6
TB Woods® 1366B
Regal Rexnord (Browning®) 6B136SF
Carlisle 6-B-136-SF
Masterdrive 6B136SF
Maurey 6B13.6
Jason Industrial 6B136SF
Optibelt 6/B1360SF

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

Does the 6B136SF replace the Dodge D6B136 sheave?

Yes. Published interchange data crosses the 6B136SF directly to the Dodge D6B136, as well as Martin 6 B 136 SF, Gates QD6A13.4/B13.6, TB Woods 1366B. Verify groove count, diameter, and bore or bushing before ordering.

What bushing does the 6B136SF use?

A SF series QD style bushing, sold separately. SF is an industry-standard bushing size, so any manufacturer's standard SF bushing fits. Order the bushing bore that matches your shaft diameter.

Why does the 6B136SF list two pitch diameters?

Combination sheaves run more than one belt section, and each section rides at a different depth in the groove. The 6B136SF has a 13.2 in pitch diameter with A or 4L belts and 13.6 in with B or 5L belts.

Does the 6B136SF ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 6B136SF?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
